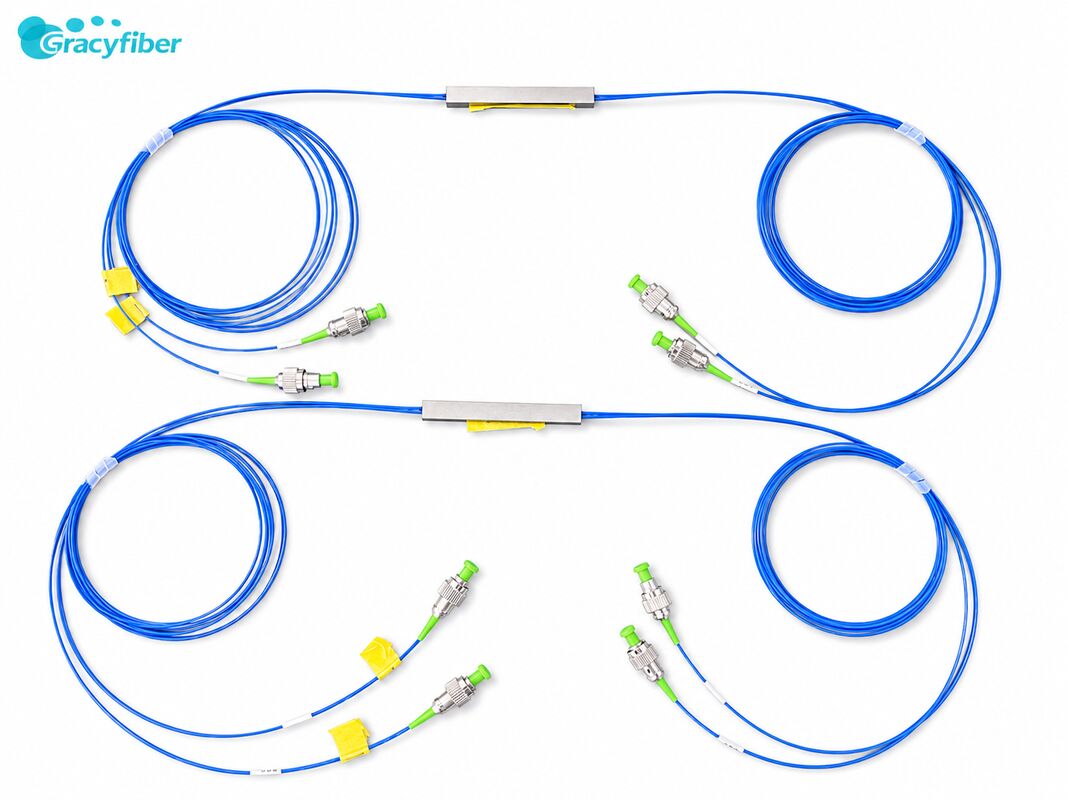

OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor

Brand Name:	Gracyfiber
MOQ:	1pieces
Payment Terms:	L/C,T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong , China

Certification:

ISO9001 , ROHS

Document:

A-2Group-1x4 PM Splitter- G...06.pdf

Operating Wavelength:

1260~1650 Nm

Insertion Loss:

≤8.2 DB

Extinction Ratio:

≥18 DB

Return Loss:

≥50 DB

Power Handling:

300 MW

Operating Temperature:

-5~+65 ℃

Supply Ability:

100,000 pieces per month

Highlight:

PM PLC splitter high ER low IL

Polarization maintaining fiber FC to MPO

Coherent communication fiber sensor splitter

Product Description

OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor

1. Features

Low Insertion loss
High Extinction Ratio
Compact Design
Good Channel-to-channel Uniformity
Wide Operating Wavelength
High Reliability and Stability

2. Applications

Coherent communication
Fiber Optic Gyroscope
Fiber Sensor

3. Specifications

Parameters	Unit	Value
Operating Wavelength	nm	1260~1650
Test Wavelength	nm	1550
Insertion Loss	dB	≤8.2
Uniformity	dB	≤0.8
Extinction Ratio	dB	≥18
Return Loss	dB	≥50
Directionality	dB	≥50
Pigtail	/	Input: 0.9m blue hytrel tube Output: 3.0mm yellow PVC Tube
Input & Output Length	m	0.5±0.03

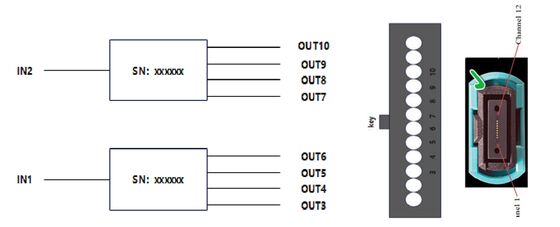

Connector	/	Input=FC/APC (slow axis work), Output=MPO/APC (male) - (Fast axis work)
Fiber Mark	/	Numbering tube
Package Dimension	mm	100×80×10
Power	mW	300
Operating Temperature	℃	-5~+65
Storage Temperature	℃	-40～+85
Fiber Type	/	PM 15-U25D

OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor 0

OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor 1

OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor 2

FAQ

1. As an OEM product, what level of customization do you support in terms of polarization mapping, polarization axis, and specific parameters?

We offer the deepest engineering-level customization services. For this FC to MPO device, you can precisely specify slow axis alignment (default) or fast axis alignment; on the MPO side, we support customized specific polarity mapping rules (Polarity Type A/B/C) and channel allocation. Furthermore, non-standard operating wavelengths, specific cable lengths, and high-precision FC/APC structures with narrow keys can all be quickly prototyped and mass-produced strictly according to your system schematics.

2. How do you control lead times and production scheduling for large-scale bulk orders from system equipment vendors?

The coupling and testing cycle for MPO polarization-maintaining devices is relatively long, but we have a high-capacity, highly automated precision passive device packaging production line. For standard-specification FC-MPO dual-group polarization-maintaining splitters, samples and small-batch orders can typically complete rigorous testing and be delivered within 1-2 weeks; for large-scale coherent communication or sensing infrastructure orders, the standard lead time is strictly controlled within 3-4 weeks. Our core engineering and manufacturing capabilities ensure that your R&D and mass production milestones are met on time.
