| Brand Name: | Gracyfiber |
| MOQ: | 1pieces |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |
High-Performance Multi-Service WDM-PON Access Module (2 To 7 Channels)
GRACYFIBER's multi-service WDM-PON access module is a core passive wavelength routing engine designed for seamless coexistence of multiple generations of PON technologies on a single fiber infrastructure.
| Parameter | Unit | Value | ||||
|---|---|---|---|---|---|---|
| Channel Configuration | - | 1CH / 2CH | ||||
| Center Wavelength | nm | 1310/1480 | 980/1064 | 780/850 | ||
| Operating Bandwidth | nm | ±30 | ±30 | ±20 | ||
| Working Distance | mm | 5~100 | ||||
| Beam Diameter (1/e²) | µm | ≤600 | ||||
| Insertion Loss(Typ./Max) | dB | 0.3 /0.4 | 0.4 /0.5 | 0.5 /0.6 | ||
| Extinction Ratio(Typ./Min) | dB | 25 / 23 | 25 / 23 | 22 /20 | ||
| Return Loss (Min) | dB | 50 | ||||
| Power Handing (Max) | W | 0.5, 1 | ||||
| Fiber Type | - | PM Panda Fibe( 780/ 980/1300/1550) | ||||
| Fiber Coating | µm | 250 µm / 900 µm Blue loose tube | ||||
| Fiber Length | cm | 100 | ||||
| Connector | - | FC/APC,FC/UPC,or Customized | ||||

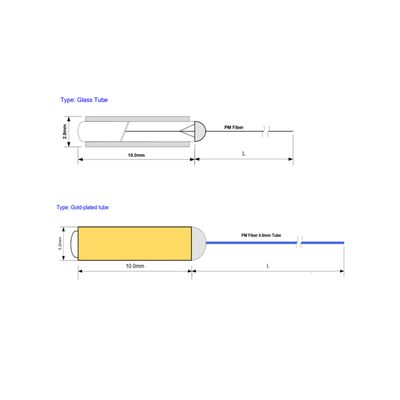

| Package Dimension (OD 1.8 mm) |
Gold-plated tube | mm | Φ3.2 × L10 | |||
| Glass Tube | mm | Φ2.8 × L10 | ||||
| Operating Temperature | °C | -5~65 | ||||
| Storage Temperature | °C | -40~85 | ||||
Features: Precise wavelength coverage across all generations of PON (GPON to 25G PON & RF Video)
Features: Flexible multi-channel configuration (2CH to 7CH) and ultra-low insertion loss
Features: High channel isolation and crosstalk suppression
Features: Extremely low PDL (maximum 0.5 dB) and excellent in-band flatness
Features: Excellent power handling and stability in harsh environments
