| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

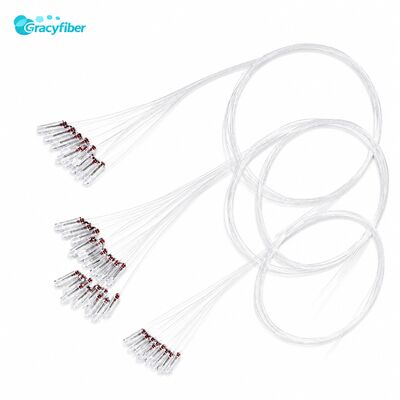

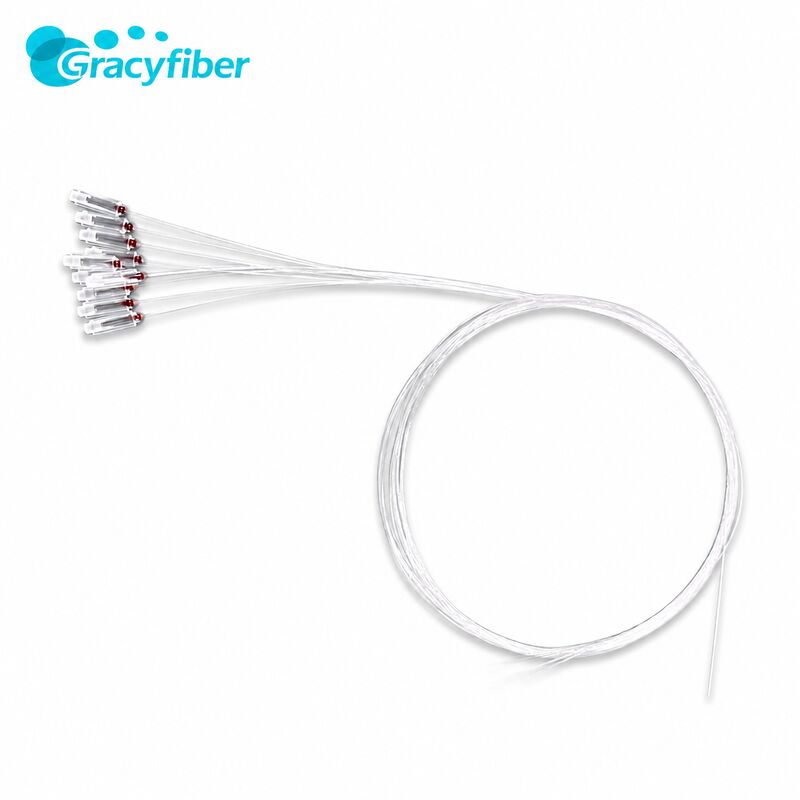

This PM Collimator is a high-stability fiber collimator designed for polarization-maintaining fiber systems. It supports 1CH/2CH configurations and is suitable for multiple common wavelength bands, including 1310/1480/1550nm, 980/1064nm, and 780/850nm. Utilizing PM Panda Fiber, it features excellent polarization maintenance, low insertion loss, and high extinction ratio, enabling stable collimated output and efficient optical path coupling. Its operating distance is 5~100mm, and the beam diameter is ≤600μm, making it suitable for fiber lasers, optical communications, precision testing, and sensing systems. The product is available in both glass tube and gold-plated tube packaging, supporting 250μm or 900μm blue loose tubes. The standard length is 100cm, and connectors are available in FC/APC, FC/UPC, or custom types, facilitating integration with different equipment and OEM projects.
| Parameter | Unit | Value | ||||
|---|---|---|---|---|---|---|
| Channel Configuration | - | 1CH / 2CH | ||||
| Center Wavelength | nm | 1310/1480/1550 | 980/1064 | 780/850 | ||
| Operating Bandwidth | nm | ±30 | ±30 | ±20 | ||
| Working Distance | mm | 5~100 | ||||
| Beam Diameter (1/e²) | µm | ≤600 | ||||
| Insertion Loss(Typ./Max) | dB | 0.3 /0.4 | 0.4 /0.5 | 0.5 /0.6 | ||
| Extinction Ratio(Typ./Min) | dB | 25 / 23 | 25 / 23 | 22 /20 | ||
| Return Loss (Min) | dB | 50 | ||||
| Power Handing (Max) | W | 0.5, 1 | ||||
| Fiber Type | - | PM Panda Fibe( 780/ 980/1300/1550) | ||||
| Fiber Coating | µm | 250 µm / 900 µm Blue loose tube | ||||
| Fiber Length | cm | 100 | ||||
| Connector | - | FC/APC,FC/UPC,or Customized | ||||

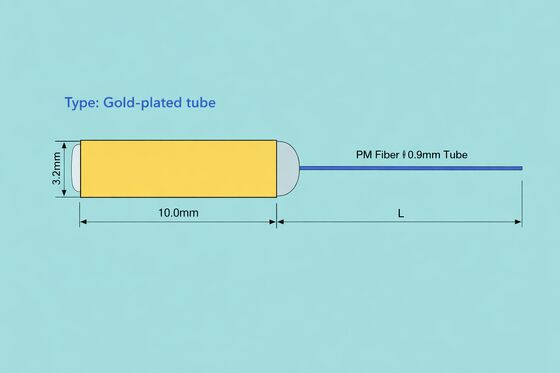

| Package Dimension (OD 1.8 mm) | Gold-plated tube | mm | Φ3.2 × L10 | |||

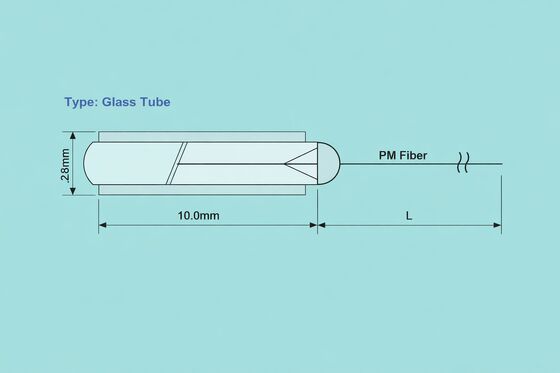

| Glass Tube | mm | Φ2.8 × L10 | ||||
| Operating Temperature | °C | -5~65 | ||||
| Storage Temperature | °C | -40~85 | ||||
Multi-wavelength compatibility
Supports 1310/1480/1550nm, 980/1064nm, and 780/850nm wavelengths, offering multiple band options to adapt to various polarization-maintaining optical path design requirements.
Low loss and high performance
Insertion loss as low as 0.3dB, extinction ratio up to 25dB, balancing transmission efficiency and polarization stability.
Stable collimated output
Operating distance 5~100mm, beam diameter ≤600μm, suitable for precision coupling, spatial optical transmission, and module packaging.
Flexible packaging options
Provides two structures: glass tube Φ2.8×L10mm and gold-plated tube Φ3.2×L10mm, suitable for different installation spaces.
Customizable accessories supported
Pig structure, connectors, length, and packaging can all be customized to meet specific requirements, suitable for bulk purchases and OEM applications.
4.Part Number Configuration
| Colliamator | - | 1 | 2 | 3 | 4 | 5 | 7 | 8 | 9 | - | 10 | 11 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Working Wavelength | Working Distance | Tube type | Outer Diameter | Fiber Type | Jacket Type | Jacket Color | Fiber Length | - | Connector Type | Working Axis | |
| - | XX | XXX | X | XX | XXX | XX | XX | XX | - | X | X | |
| PMCLM | 78= 780nm | 005=5mm | G=Glass Tube | 12=OD 1.2mm | P78=PM780 | 02=250um Bare fiber | W0=White | 01=0.1m | 0=No | B=Dual Axis | ||
| 98=980nm | 050=50mm | S=Gold Steel Tube | 14=OD 1.4mm | P13=PM1300 | 06=0.6mm Loose Tube | B0=Blue | 05=0.5m | 1=FC/UPC | S=Slow Axis | |||
| 10=1060nm | 100=100mm | 18=OD1.8mm | P15=PM1550 | 09=0.9mm Loose Tube | B1=Black | 10=1.0m | 2=FC/APC | F=Fast Axis | ||||
| 13=1310nm | 24=OD2.4mm | XXX= Customized | 20=2.0mm PVC Tube | R0=Red | 30=3.0m | 3=SC/UPC | X= Customized | |||||
| 15=1550nm | 28=OD2.8mm | 30=2.0mm PVC Tube | Y0=Yellow | 4=SC/APC | ||||||||
| 32=OD3.2mm | XX= Customized | XX= Customized | 5=LC/UPC | |||||||||
| XX= Customized | 6=LC/APC | |||||||||||
| X= Customized | ||||||||||||
| Example Part Number | ||||||||||||
| PMCLM-1305S28P1309B010-2S | ||||||||||||
| PM Fiber Collimator,center wavelength 1310 nm,working distance 50 mm, gold steel housing, fiber is PM 1300, Fiber length 1 m with 0.9mm Blue Losse Tube,FC/APC connector, slow axis aligned to key. | ||||||||||||
