PM Fiber Collimator for Polarization Control, Free-Space Beam Delivery & Quantum Optics

1. Product Title

PM Fiber Collimator for Polarization Maintaining Optical Systems

2. Product Overview

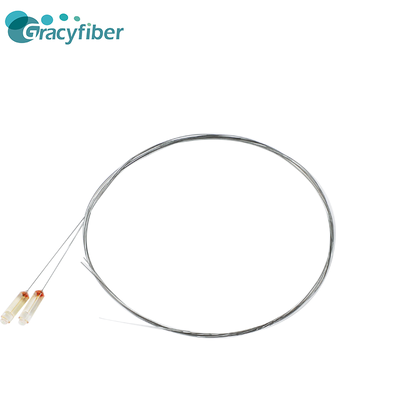

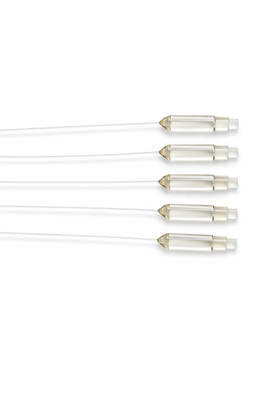

GracyFiber PM Fiber Collimator is a high-precision micro-optical assembly designed for stable polarization transmission and efficient free-space optical beam delivery. By integrating polarization-maintaining fiber technology with precision optical coupling, the PM Fiber Collimator provides a reliable interface between fiber-based systems and free-space optical paths.

3. Key Features

• 1CH / 2CH configuration options
• 780–1550 nm wavelength coverage
• Polarization-maintaining optical transmission
• High-precision micro-optical assembly design
• Low insertion loss and high polarization purity
• Flexible fiber and connector options
• Suitable for free-space beam delivery applications
• Designed for optical reliability in demanding environments
• High power handling capability

The supplied product information identifies multi-wavelength compatibility, low insertion loss, high polarization purity, flexible fiber and connector options, environmental reliability, and high power handling as key features.

4. Applications

• Laser Pumping & Amplifiers
• LiDAR & Free-Space Sensing
• Biomedical & Imaging Systems
• Telecom & Fiber Optic Systems
• Industrial Measurement & Interferometry
• Quantum Optics & Quantum Communication

These application areas are listed in the supplied PM Fiber Collimator documentation.

5. Technical Specifications

6. Configuration & Customization Options

Confirmed Options

Channel Configuration

• 1 Channel
• 2 Channel

Wavelength Range

• 780–1550 nm

Application Configuration

Suitable for:

• Polarization-maintaining optical systems
• Free-space optical coupling
• Laser systems
• Quantum optical systems

7. Detailed Product Description

The GracyFiber PM Fiber Collimator is a precision optical component designed to connect polarization-maintaining fiber systems with free-space optical paths. It provides controlled optical coupling while preserving polarization characteristics, making it suitable for systems where polarization stability is important.

In many photonic systems, optical signals must transition between guided fiber transmission and free-space propagation. The PM Fiber Collimator provides this interface by converting the optical output from a polarization-maintaining fiber into a controlled free-space beam.

The product supports 1CH and 2CH configurations and covers a wavelength range from 780 nm to 1550 nm, enabling integration into multiple optical platforms including telecom, quantum optics, laser systems, and sensing applications.

For polarization-sensitive applications, maintaining the optical polarization state is critical for system stability and measurement accuracy. The PM Fiber Collimator is designed around this requirement by combining polarization-maintaining fiber compatibility with precision micro-optical assembly.

The product is also suitable for applications requiring high optical power handling, flexible fiber and connector configurations, and reliable operation in optical environments.

Typical integration scenarios include laser pumping systems, free-space sensing modules, interferometric measurement systems, quantum optical setups, and fiber-based communication platforms.

8. Application Scenarios

Application 1 — Quantum Optics & Quantum Communication

Quantum optical systems often require accurate polarization control and stable optical coupling between fiber systems and free-space optical components.

The PM Fiber Collimator provides a polarization-maintaining interface for quantum optical architectures requiring controlled beam delivery.

The supplied documentation identifies quantum optics and quantum communication as target applications.

Application 2 — Laser Pumping and Amplifier Systems

In laser pumping and optical amplifier systems, efficient coupling between fiber sources and optical components is important for system performance.

The PM Fiber Collimator provides a fiber-to-free-space optical interface suitable for laser-related applications.

Application 3 — LiDAR and Free-Space Sensing

LiDAR and sensing systems often require stable optical beam delivery and polarization control.

The PM Fiber Collimator can serve as an optical interface component between fiber-based sources and free-space sensing modules.

9. Why GracyFiber

GracyFiber provides passive optical components and precision fiber optic solutions for photonics, optical communication, and advanced optical systems.

For PM Fiber Collimator applications, GracyFiber focuses on:

• Polarization-maintaining optical components
• Fiber-based optical interfaces
• Precision optical assembly solutions
• Custom optical component configurations
• Photonics and optical communication applications

The PM Fiber Collimator complements GracyFiber’s broader portfolio including PM components, fiber arrays, WDM components, MPO/MTP assemblies, and other passive optical solutions.

10. Related Products

11. FAQ

1. What is a PM Fiber Collimator?

A PM Fiber Collimator is a micro-optical assembly designed to couple light from a polarization-maintaining fiber into a controlled free-space optical beam while maintaining polarization characteristics.

GracyFiber’s PM Fiber Collimator is designed for stable polarization transmission and free-space beam delivery applications.

2. What wavelength range does the PM Fiber Collimator support?

The supplied specification states that the PM Fiber Collimator supports a wavelength range of:

780–1550 nm

3. How many channels are available?

The product is available in:

• 1CH
• 2CH

configurations.

4. What applications use PM Fiber Collimators?

Typical applications include:

• Laser pumping and amplifiers
• LiDAR and free-space sensing
• Biomedical imaging
• Telecom systems
• Industrial interferometry
• Quantum optics

5. Can the PM Fiber Collimator be customized?

Customization options such as fiber type, connector configuration, package design, and optical specifications should be confirmed according to the project requirements.

Please contact GracyFiber with your required wavelength, fiber type, optical interface, and application information.

12. Call to Action

For PM Fiber Collimator quotation and technical evaluation, please provide:

• Required wavelength range
• Channel configuration
• PM fiber type
• Connector requirement
• Fiber length
• Beam parameters
• Mechanical package requirements
• Optical performance targets
• Application environment

GracyFiber can evaluate the required configuration and provide a suitable PM optical interface solution.
