| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

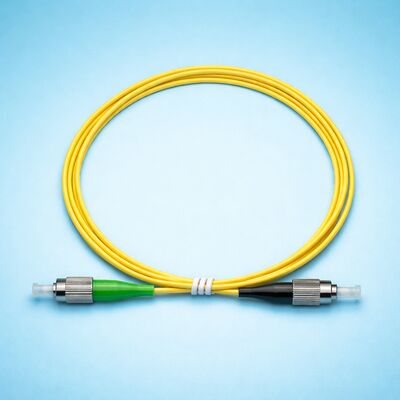

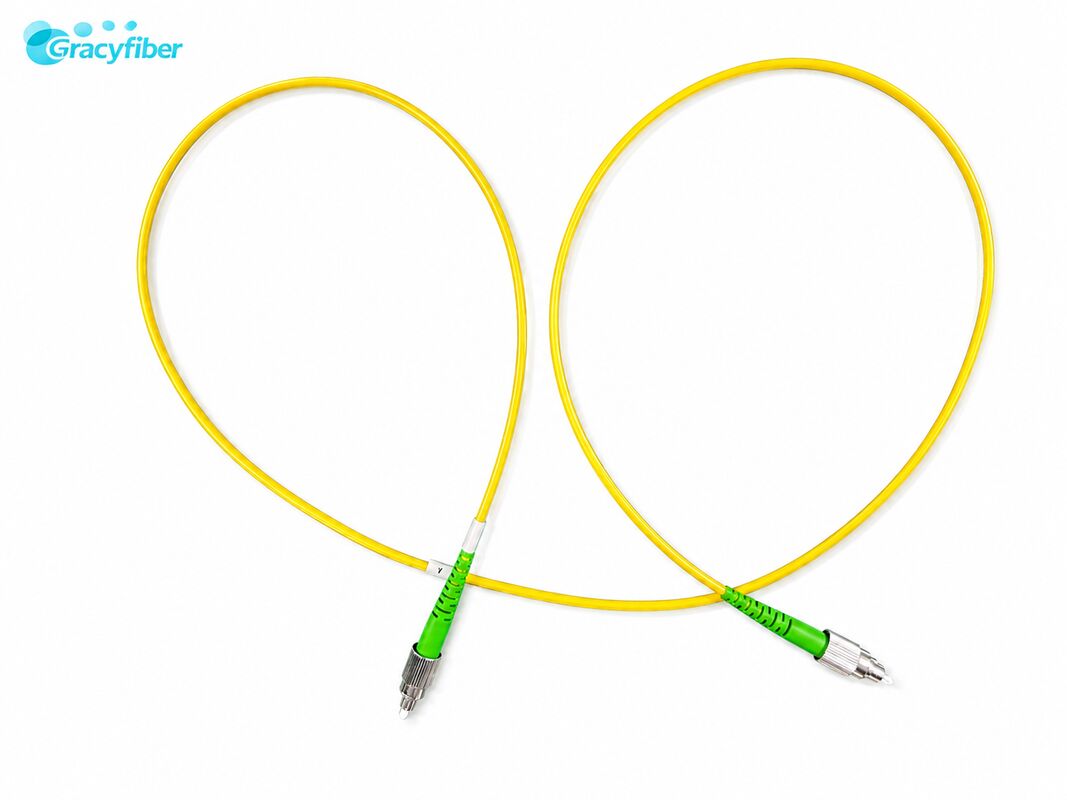

These Patch Cords are fiber optic jumper assemblies designed for applications in optical communications, fiber lasers, optical testing, and precision transmission systems. Supporting both 1-core and 2-core configurations, they cover a wide range of common operating wavelengths, including 1310/1480/1550nm, 980/1064nm, 780/850nm, 650nm, 460nm, and 405nm. The products utilize fiber types optimized for their respective wavelengths, offering stable transmission performance, low insertion loss, and excellent connection consistency. They are suitable for equipment interconnection, laboratory setups, and module integration across various wavelength bands.
| Parameter | Unit | Value | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Channel Configuration | - | 1Core,2Core | |||||||
| Operating Wavelength | nm | 1310/1480/1550 | 980/1064 | 780/850 | 650 | 460 | 405 | ||
| Operating Wavelength Range | nm | 1270～1625 | 970～1550 | 770～1100 | 620～850 | 460~700 | 400~680 | ||
| Insertion Loss | Max | dB | 0.5 | 0.6 | 1.0 | 1.5 | 2.5 | 2.5 | |
| Core NA | - | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | ||
| Mode Field Diameter | Min | µm | 9.3±0.5 @1300 | 6.6±0.5 @980 | 5.3±1.0 @850 | 4.5±0.5@630 | 3.3 ± 0.5@ 515 | 3.3 ± 0.5@405 | |
| Return Loss (Min) | Min | dB | 45 @ PC, 55 @ APC | ||||||
| Power Handing (Max) | mW | 500 | 300 | 300 | 100 | 100 | 100 | ||
| Fiber Type | - | G657A1/A2/B3 | 980 | 780 | 630 | 460 | 405 | ||
| Fiber Coating | µm | 250 µm / 900 µm Blue loose tube | |||||||
| Fiber Length | m | 1,2,3,5,10,15 | |||||||

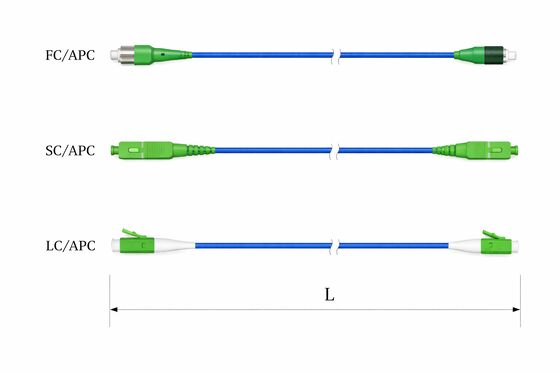

| Connector | - | FC/ SC/LC/ST/E2000,or Customized | |||||||
| Operating Temperature | °C | -5~65 | |||||||
| Storage Temperature | °C | -40~85 | |||||||
