| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |
Lens Fiber Arrays (1CH, 2CH, 4CH, 8CH, 12CH, 16CH, 24CH, 32CH, 48CH) For PIC Coupling, Silicon Photonics, And Optical Packaging

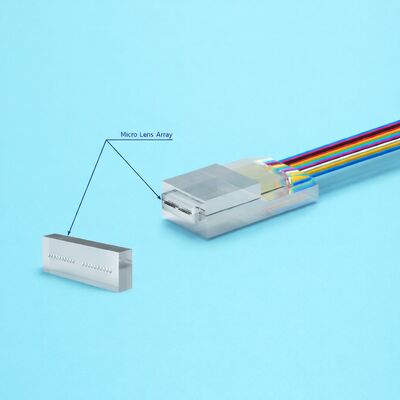

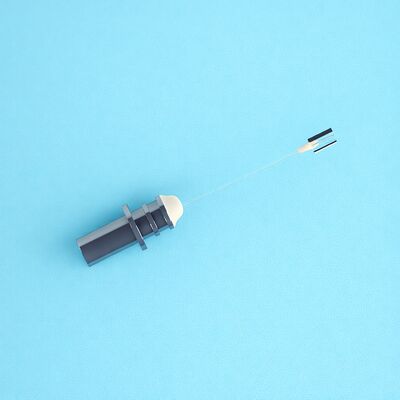

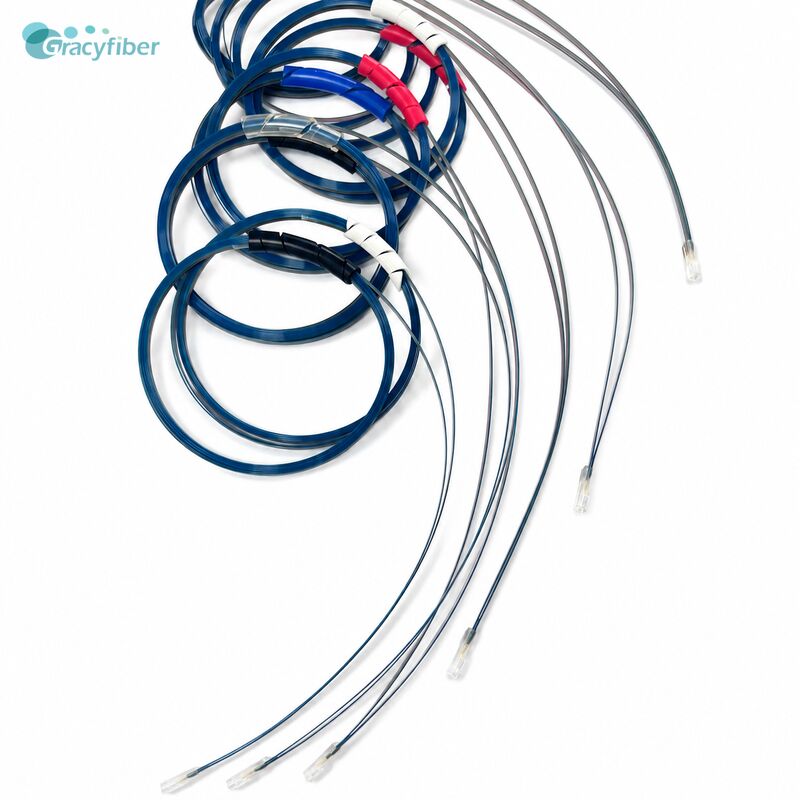

This Lens Fiber Array is a microlens fiber array assembly designed specifically for PIC chip coupling and high-density photonic packaging applications.
| Parameter | Unit | 1 | 2 | 4 | 8 | 12 | 16 | 24 | 32 | 48 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wavelength | nm | 980,1060,1260~1650 | |||||||||
| Materials | - | Pyrex, Tempax, Quartz | |||||||||
| Lid Option | Lid | ||||||||||
| CorePitch | - | - | 250 | 127/350 | 127/250 | 127/250 | 127 | 127 | 127 | 127 | |
| Core Pitch Tolerance | μm | +/-0.3 | +/-0.5 | +/-0.7 | |||||||
| Polish Angle | Degree | 8°,90° or customized (12°, 21°,...) (±0.5°) | |||||||||
| Beam Waist (Spot Size) | μm | 2–5 (Customizable to match PIC MFD) | |||||||||
| Working Distance | μm | 10–30 | |||||||||
| Mode Matching | μm | Optimized for PIC | |||||||||
| Insertion Loss | dB | ≤1.2(Typical 1.0) | |||||||||
| Return Loss | dB | UPC≥40, APC≥50 | |||||||||
| FA Dimension | W | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 5.7 | 5.7 | 9 |
| H | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| L | mm | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | |
| - | - | Standard or Customized | |||||||||
| Fiber Type | - | OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized | |||||||||
| Fiber Coating | um | 250 µm / 900 µm loose tube / ribbon (optional) | |||||||||
| Fiber Type Length | cm | 100+/-10 or customized | |||||||||
| Connector | - | .FC/LC/SC/E2000/MT/MPO/MMC | |||||||||
| Operation Temperature | °C | -5~65 | |||||||||
| Storage Temperature | °C | -40~85 | |||||||||
1. What technical information is required before requesting a quote?
We recommend providing: number of channels, operating wavelength, PIC chip port layout, target MFD, core pitch, polishing angle, working distance, fiber type, pigtail length, connector type, insertion loss/return loss requirements, package size limitations, and expected purchase quantity. The more complete the information, the faster we can assess manufacturability, pricing, sample lead time, and bulk delivery options.
2. How are MOQ, lead time, and discounts confirmed for bulk purchases?
The page shows the MOQ for this product as 100 pcs, with payment by T/T. Bulk lead time will be determined based on the number of channels, customization complexity, testing requirements, and order quantity. For bulk orders or annual projects, we can provide tiered pricing and bulk discounts based on sample verification results, batch quantity, and phased delivery plans.
Warranty & Support | After-sales Service and Quality Assurance
3. Does the product come with a warranty, test report, and technical support?
Yes. The page indicates that this product has ISO, CE, and RoHS certifications. We can provide key optical test data according to customer requirements and offer engineering support during sample evaluation, PIC coupling debugging, package introduction, batch verification, and anomaly analysis. If non-human-caused quality issues arise under normal installation and use conditions, repair, replacement, or technical analysis services can be provided according to the order terms.
