| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |

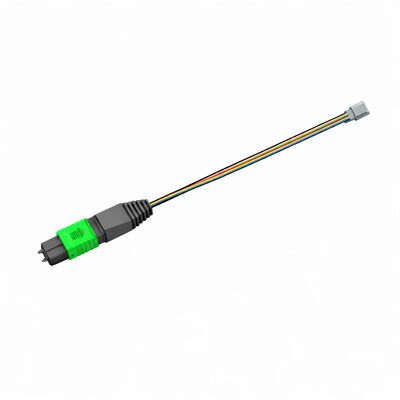

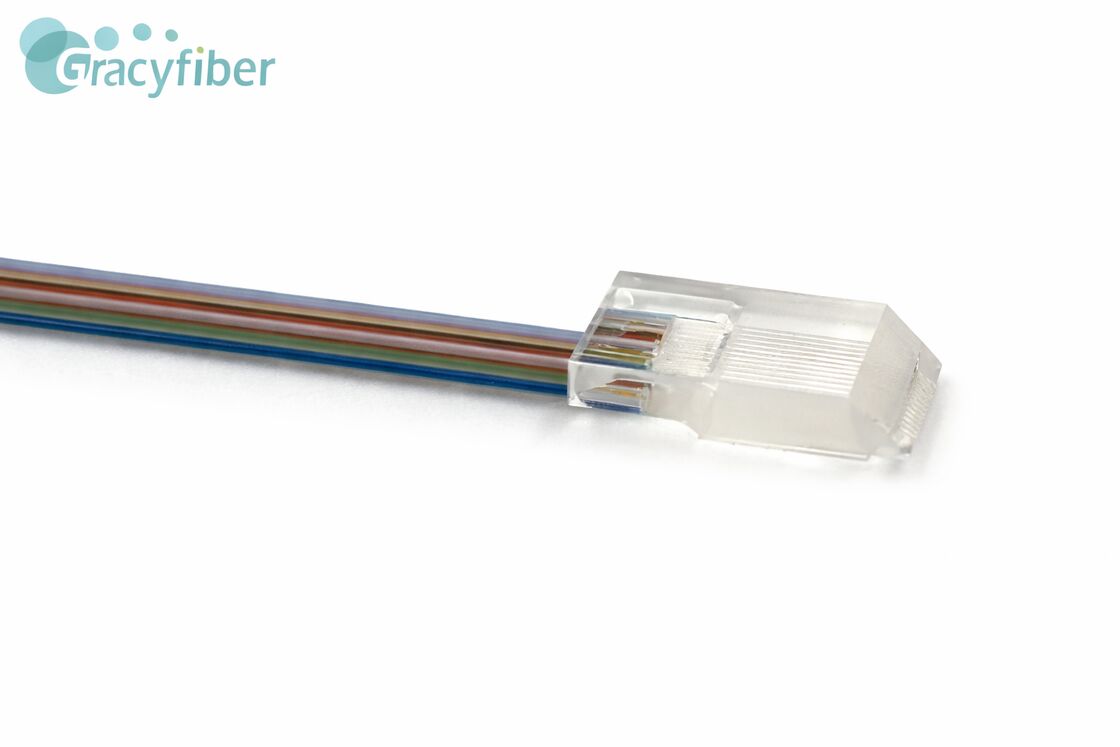

Fiber Array (FA) — 1-Channel To 128-Channel Configurations For PLC, AWG, Silicon Photonics, And Optical Modules
The product is compatible with a diverse array of fiber types—including OM1, OM2, OM3, OM4, OM5, as well as G657A1, G657A2, and G657B3—and also supports custom fiber specifications.
| Parameter | Unit | 1 | 2 | 4 | 8 | 12 | 16 | 24 | 32 | 48 | 64 | 96 | 128 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wavelength | nm | 460,630,780,850,980,1060,1310,1550,1650,1950 | ||||||||||||
| Materials | - | Pyrex, Tempax, Quartz, Silicon | ||||||||||||
| Lid Option | Lid / Lidless | |||||||||||||
| CorePitch | - | - | 250 | 127/250 | 127/250 | 127/250 | 127 | 127 | 127 | 127 | 127 | 127 | 127 | |
| Core Pitch Tolerance | μm | +/-0.3 | +/-0.5 | +/-0.7 | +/-1.0 | |||||||||
| Polish Angle | Degree | 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°) | ||||||||||||
| Angle Type | - | A Type or V Type | ||||||||||||
| Insertion Loss | dB | ≤0.5(Typical 0.3) | ||||||||||||
| Return Loss | dB | UPC≥45, APC≥55 | ||||||||||||
| FA Dimension | W | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 5.7 | 5.7 | 9 | 10 | 15 | 19.2 |
| H | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| L | mm | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 15 | 18 | |
| - | - | Standard or Customized | ||||||||||||
| Fiber Type | - | OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized | ||||||||||||
| Fiber Coating | um | 250 µm / 900 µm loose tube / ribbon (optional) | ||||||||||||
| Fiber Type Length | cm | 100+/-10 or customized | ||||||||||||
| Connector | - | .FC/LC/SC/E2000/MT/MPO/MMC | ||||||||||||
| Operation Temperature | °C | -5~65 | ||||||||||||
| Storage Temperature | °C | -40~85 | ||||||||||||
FAQ
1. Do you support customization (OEM/ODM) of non-standard pitch, angle, and channel count for specific PLC, AWG, or chip assemblies?
Fully supported. Leveraging our strong original R&D capabilities, we offer highly in-depth micro-optics customization services. You can freely specify any channel count configuration between 1 and 128; precisely customize channel pitch (e.g., 127μm, 250μm, etc.) and its stringent tolerances; and customize anti-reflective (AR) end face grinding at 0°, 8°, or other special angles according to the anti-reflective requirements of the chip's internal optical path, perfectly matching your system schematics.
2. How to ensure the extremely fragile high-density fiber optic array end faces are protected from microparticle contamination and physical damage during international transport?
We have designed the highest level of industrial protection for semiconductor-grade precision optical arrays. All extremely fragile, high-precision ground end faces are designed with a suspended protection feature and covered with a custom dust cover, completely isolating even micron-sized particles from contamination. Each device, after standardized pigtail routing, is independently fixed in an anti-static blister pack or high-density shock-absorbing pearl cotton, and then nested in a sturdy, thickened corrugated cardboard box. This complete solution completely mitigates mechanical vibration and stress damage during long-distance air or sea transport, ensuring the product arrives at your cleanroom perfectly undamaged.
