2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL <0.3dB | Optical Transceiver FA

Model Number:	910001702-29

Detail Information

Product Description

Detail Information

Document:

Channel Spacing:

250μm

Polishing Angle:

Insertion Loss:

≤0.3dB

Fiber Type:

Nufern UHNA7+G657A2

Highlight:

2CH SMFA fiber array with FC/APC

Single mode fiber array 250μm pitch

MFD conversion fiber array low IL

Product Description

2CH SMFA Fiber Array,2CH Single Mode Fiber Array,2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL <0.3dB | Optical Transceiver FA

1. Product Overview

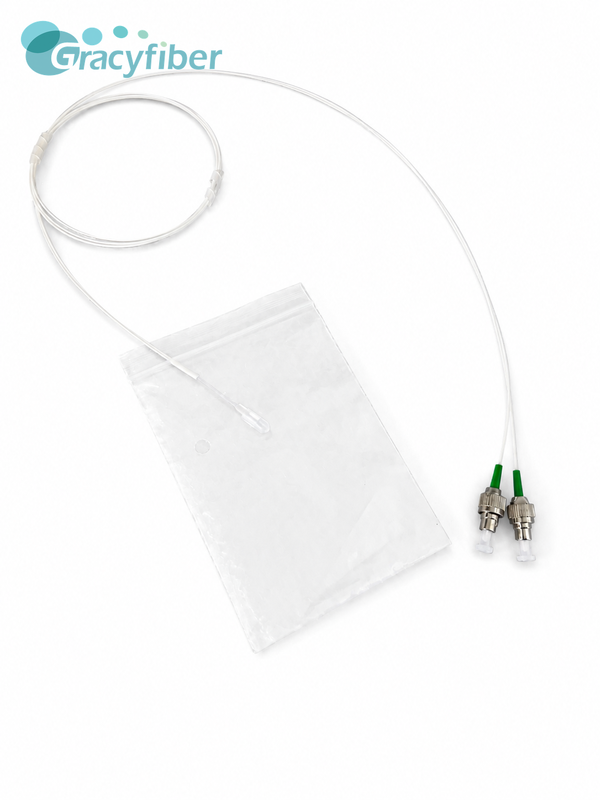

This high-precision 2-channel single-mode fiber array (2CH SMFA) is designed for integration with silicon photonic coupling and optical waveguide devices.

2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low IL <0.3dB | Optical Transceiver FA 0

2. Product Features

Ultra-Low Insertion Loss
Advanced Mode Field Conversion
High Precision Channel Spacing
Highly Stable Quartz Packaging
High-Quality Termination Connections

NO.	Parameters	Unit	Spec.	Value
1	Channel	/	2	OK
2	Material	/	Quartz Glass	OK
3	Channel Spacing	μm	250	OK
4	Polishing Angle	Degree	A0°	OK
5	Package(L)X(W)X(H)	mm	102.52.5	OK
6	Insertion Loss	dB	≤0.3	0.15



7	Fiber Type	/	Nufern UHNA7+G657A2	OK
8	Length	m	1±0.1	OK
9	Connector	/	FC/APC	OK
10	Operating Temperature (℃)		0～65	OK
11	Storage Temperature (℃)		-40～85	OK

3. Applications

Silicon Photonics Chip Coupling
PLC Device Integration
High-Speed Optical Transceiver Packaging
Optical Fiber Sensing & Test Systems
