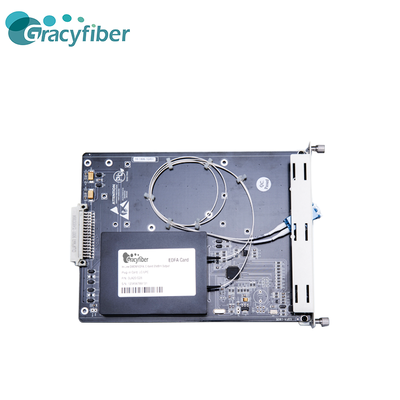

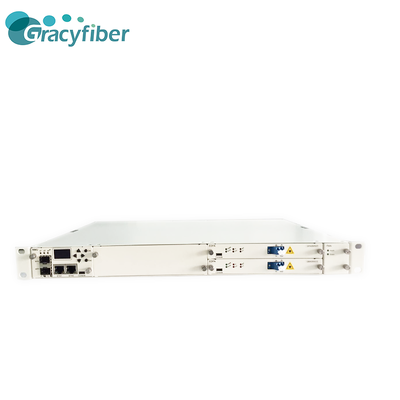

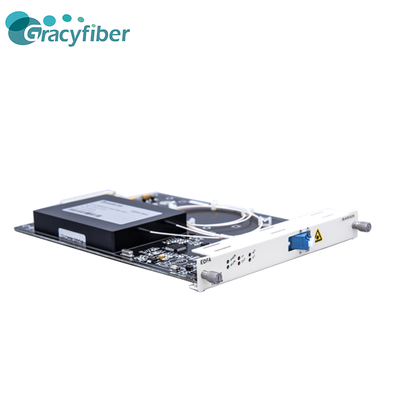

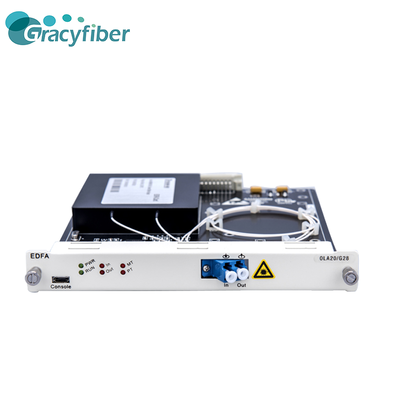

Gracyfiber the product is single-channel EDFA of high stable output. The kernel component of the product is high availability pump laser and high-performance gain flattening filters. The product has high stable output, high gain flatness and high reliability by using unique APC (automatic power control) and ATC (automatic temperature control). The system’s flatness and noise can achieve the best optimization by the gain flattening filters of professional design. The system is convenient to regulation and display, reliable, intelligent by using high stable and high precision MPU
| Parameters | Unit | Symbol | Min | Typ | Max |
|---|---|---|---|---|---|
| Working mode | ----- | ----- | ----- | APC | ----- |
| Operating Wavelength | nm | λc | 1528 | 1550 | 1564 |
| Output Power | dBm | Po | ----- | ----- | 22 |
| Input Power | dBm | Pi | -10 | ----- | 6 |
| Noise Figure | dB | NF | ----- | 4.5 | 6 |
| Power/Gain Stability | dB | ΔPo | ----- | ±0.05 | ±0.1 |
| Input Isolation | dB | ISOi | 30 | ----- | ----- |
| Output Isolation | dB | ISOo | 30 | ----- | ----- |
| Return loss | dB | RL | ----- | ----- | -45 |
| PDG | dB | PDG | ----- | ----- | 0.3 |
| PMD | ps | PMD | ----- | ----- | 0.5 |
| Consumption | W | P | ----- | ----- | 10 |
| Parameters | Unit | Symbol | Min | Typ | Max |
|---|---|---|---|---|---|
| Working mode | ----- | ----- | ----- | AGC | ----- |
| Operating Wavelength | nm | λc | 1528 | 1550 | 1564 |
| Input Power | dBm | Pi | -25 | ----- | -10 |
| Gain | dB | G | 8 | ----- | 33 |
| Noise Figure | dB | NF | ----- | 4.5 | 6 |
| Power/Gain Stability | dB | ΔPo | ----- | ±0.05 | ±0.1 |
| Input Isolation | dB | ISOi | 30 | ----- | ----- |
| Output Isolation | dB | ISOo | 30 | ----- | ----- |
| Return loss | dB | RL | ----- | ----- | -45 |
| PDG | dB | PDG | ----- | ----- | 0.3 |
| PMD | ps | PMD | ----- | ----- | 0.5 |
| Consumption | W | P | ----- | ----- | 10 |
Ⅲb level laser products
With single-mode fiber pigtail connectors
Wavelength:0.96~1.68μm
Maximum power:<400mW
Products cannot be transported in a charged state
Note: this instruction outside of any control, regulation and treatment may result in hazardous radiation exposure
