High-Density Tap Modules (Optical Monitoring Splitter Modules) — 4CH/8CH MPO/MTP® For Data Centers, Optical Monitoring, And High-Speed Networks

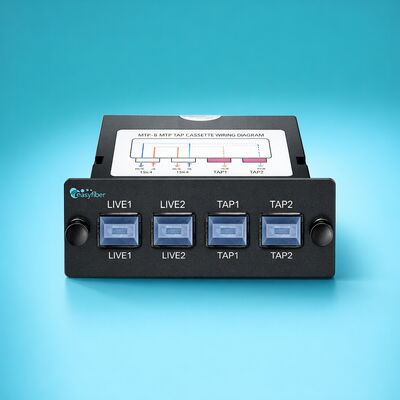

These High-Density Tap Modules are passive optical monitoring splitter modules designed for high-density fiber link monitoring and network visualization applications. Supporting both single-mode and multi-mode configurations, they are available with 4-channel and 8-channel port options. The single-mode version operates within a wavelength range of 1260–1650 nm, while the multi-mode version is optimized for 850±50 nm. These modules are ideally suited for in-line optical splitting and traffic analysis applications within data centers, parallel optical interconnects, backbone link monitoring, and high-speed transmission systems. Featuring MPO/MTP® interfaces and a compact form factor of 109 × 118 × 35 mm, the products are easily integrated into high-density cabling systems, monitoring platforms, and rack-mounted network environments.
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Fiber Type | Single-mode | Multi-mode | |||||
| Wavelength | nm | 1260~1650 | 850±50 | ||||
| Port Configuration | – | 4CH | 8CH | 4CH | 8CH | ||
| Insertion Loss (Max) |
Tap Ratio | 5% | dB | 14.8 | 15.1 | 15.3 | 15.7 |
| 95% | dB | 1.3 | 1.4 | 1.5 | 1.7 | ||
| Tap Ratio | 20% | dB | 8.70 | 8.85 | 8.80 | 8.95 | |
| 80% | dB | 2.45 | 2.55 | 2.50 | 2.60 | ||
| Tap Ratio | 30% | dB | 6.9 | 7.2 | 6.8 | 7.1 | |
| 70% | dB | 2.8 | 3.1 | 2.9 | 3.2 | ||
| Tap Ratio | 40% | dB | 5.6 | 5.8 | 5.5 | 5.8 | |
| 60% | dB | 3.6 | 3.8 | 3.5 | 3.8 | ||
| Tap Ratio | 50% | dB | 4.7 | 4.8 | 4.6 | 4.8 | |
| 50% | dB | 4.7 | 4.8 | 4.6 | 4.8 | ||
| Return Loss | dB | ≥50 | ≥25 | ||||
| Directivity | dB | ≥50 | ≥25 | ||||
| Power Handing | mW | 300 | 500 | ||||
| Fiber Type | – | G67A1/ A2/ B3 or SMF-28 | OM3/OM4/OM5 | ||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||
| Conector | – | MPO/MTP® | |||||
| Package Size | mm | 109*118*35 | |||||
| Operation Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
