| Model Number: | PLC&F-4*F610PS10905-55 |

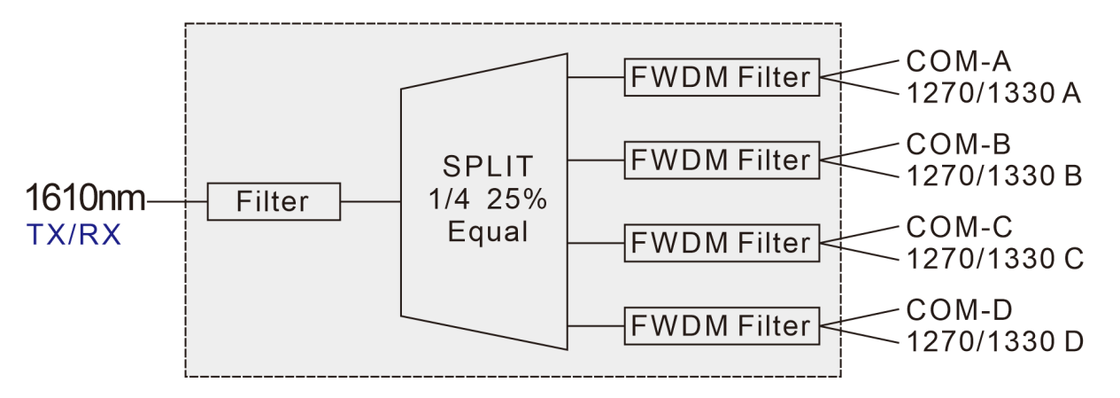

Splitter+4*FWDM in ABS
| Parameters | Unit | 1610+4CH | |
|---|---|---|---|
| Operating Wavelength | nm | 1260~1620 | |
| Center Wavelength | / | ITU,ITU+1 | |
| Pass band @0.5dB | nm | +/-6.5 | |
| Channel Space | nm | 20 | |
| Insertion Loss | COM-A→1610 | dB | <8.5 |
| COM-A→1270/1330 A | dB | <1.0 | |
| COM-B→1270/1330 B | dB | <1.0 | |
| COM-C→1270/1330 C | dB | <1.0 | |
| COM-D→1270/1330 D | dB | <1.0 | |
| Isolation | COM→1610@1270/1330 | dB | >25 |
| COM→1270/1330@1610 | dB | >25 | |
| Reflection Isolation | dB | >13 | |
| Ripple | dB | <0.5 | |
| PDL | dB | <0.2 | |
| RL | dB | >40 | |
| Directivity | dB | >50 | |
| Power | mW | 300 | |
| Fiber Type | / | G657A1 with 0.9mm loose tube COM:Black / Other:White | |
| Fiber Length | m | 0.5+/-0.03 | |
| Connector | / | LC/UPC | |
| Operating Temperature | ℃ | -5~75 | |
| Storage Temperature | ℃ | -40~85 | |
| Housing | mm | 80*58*8 | |
| SP&F | - | XXX | XXX | XX | XX | XX | - | X | X |
|---|---|---|---|---|---|---|---|---|---|
| Channel No. | Initial CW | Package Type | Fiber Type | Fiber Length | Input Connector | Output Connector | |||
| PLC&F=SPLIT&FWDM | 4*F=4*FWDM | 610=1610 | PS1= 80*58*8 | 09=0.9mm loose tube | 10=1.0m | 0=No | 0=No | ||
| XX= Customized | 1=FC/UPC | 1=FC/UPC | |||||||
| 2=FC/APC | 2=FC/APC | ||||||||
| 3=SC/UPC | 3=SC/UPC | ||||||||
| 5=LC/UPC | 5=LC/UPC | ||||||||
| 6=LC/APC | 6=LC/APC |
| Part Number | Product Description |
|---|---|
| PLC&F-4*F610PS10905-55 | 1610+Splitter+4*FWDM in ABS Module,COM,1610nm,1270/1330nm Port,0.9mm Loose tube ABS box(80*58*8mm),1270/1330&1610:0.5m with 0.9mm White Tube color,COM:1.0m with 0.9mm Black tube Color,LC/UPC connectors, |
