| Brand Name: | Gracyfiber |
| MOQ: | 1pieces |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

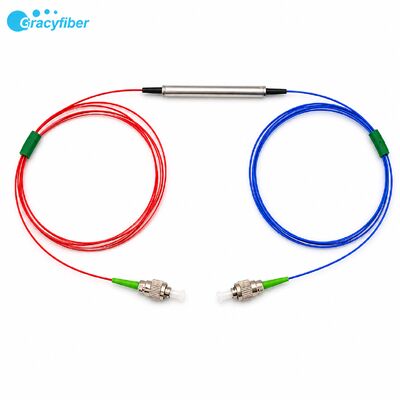

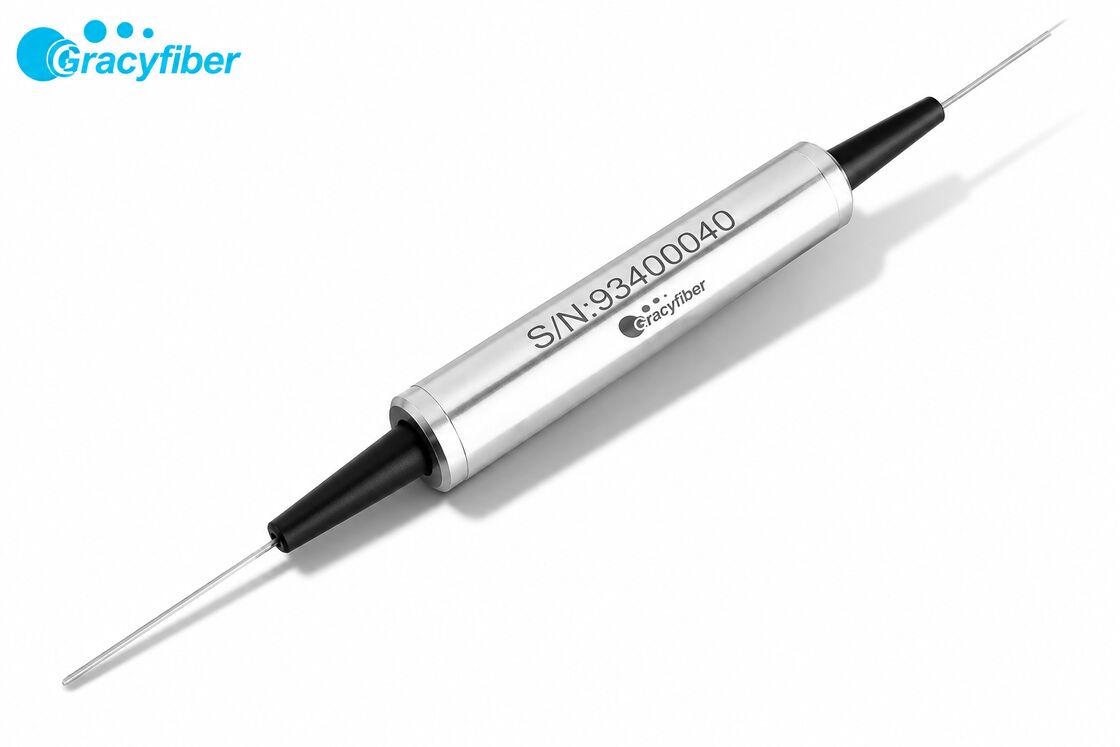

GRACYFIBER's in-line PM Isolator is a high-precision optical antireflective device designed to guide unidirectional beam transmission and maintain extremely high polarization purity while completely blocking back reflections.
| Parameter | Unit | Value | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Port Type | - | `1x1 | |||||||||||
| Operating Wavelength | nm | 1064 | 1310 | 1480 | 1550 | 1650 | 1064 | 1310 | 1480 | 1480 | 1480 | ||
| Operating Bandwidth | nm | ±5 | ±20 | ±20 | ±20 | ±20 | ±5 | ±20 | ±20 | ±20 | ±20 | ||
| Stage | - | Sing Stage | Dual Stage | ||||||||||
| Typ. Insertion Loss | Max | nm | 1.6 | 0.4 | 2.2 | 0.6 | |||||||
| Insertion Loss | Max | nm | 1.8 | 0.6 | 3.4 | 0.8 | |||||||
| Peak Isolation | Min | nm | 35 | 40 | 50 | 55 | |||||||
| Typ.Isolation | Min | nm | 30 | 28 | 45 | 45 | |||||||
| Extinction Ratio | Type B | Min | dB | 18 | |||||||||
| Type F | Min | dB | 20 | ||||||||||
| Return Loss | Min | dB | 50 | ||||||||||
| Power Handing | Max | mW | 200 | 500 | 150 | 500 | |||||||
| Fiber Type | - | PM980 | PM1300 | PM1550 | PM980 | PM1300 | PM1550 | ||||||
| Fiber Coating | mm | 0.25 / 0.9/2.0/3.0mm Red/Blue loose tube | |||||||||||
| Fiber Length | cm | 100, or Customized | |||||||||||
| Connector | - | FC/APC,FC/UPC,or Customized | |||||||||||

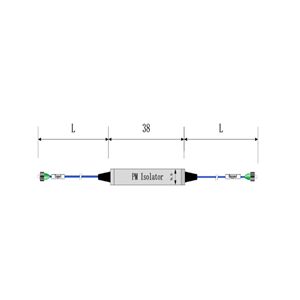

| Dimensions (HxWxD) | 250μm Bare Fiber | mm | φ5.5×35 | ||||||||||
| 900μm Loose Tube | mm | φ5.5×38 | |||||||||||
| 2mm/3mm Tube | mm | 90×20×10,100×80×10 | |||||||||||
| Operating Temperature | °C | -5~65 | |||||||||||
| Storage Temperature | °C | -40~85 | |||||||||||
| Remark: * Above specifications are for devices without the connectors. * For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower. * The PM fiber and the connector key are aligned to the slow axis. fast axis is blocked. | |||||||||||||
Features: Extreme High Isolation and Guaranteed Unidirectional Transmission
Features: Excellent polarization extinction ratio (ER) and tight slow-axis alignment
Features: Extremely low insertion loss and high return loss
| Isolator | - | 1 | 2 | 3 | 4 | 5 | 6 | 7 | - | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Working Wavelength | Stage Type | Package Dimension | Fiber Type | Jacket Type | Jacket Color | Fiber Length | - | Connector Type | Working Axis | |
| - | XX | XX | XX | XXX | XX | X | XX | - | X | X | |
| PM ISO | 10=1060nm | S=Single Stage | 53=Ø5.5 × 35 | P98=PM980 | 02=250um Bare fiber | R=Red | 01=0.1m | 0=No | B=Dual Axis | ||
| 13=1310nm | D=Daul Stage | 54=Ø5.5 × 38 | P13=PM1300 | 06=0.6mm Loose Tube | B=Blue | 05=0.5m | 1=FC/UPC | S=Slow Axis | |||
| 15=1550nm | X= Customized | 90=90 × 20× 10 | P15=PM1550 | 09=0.9mm Loose Tube | W= White | 10=1.0m | 2=FC/APC | F=Fast Axis | |||
| XX= Customized | PS=100 ×80× 10 | XXX= Customized | 20=2.0mm PVC Tube | X= Customized | 30=3.0m | 3=SC/UPC | X= Customized | ||||
| XX= Customized | 30=2.0mm PVC Tube | XX= Customized | 4=SC/APC | ||||||||
| 5=LC/UPC | |||||||||||
| 6=LC/APC | |||||||||||
| X= Customized |
| Example Part Number | |||||||||||
| PMISO-13S54P1309B10-2S | |||||||||||
| PM Inline Isolator ,Center wavelength 1310 nm,Single Stage,Steel housing Ø5.5 × 38, Fiber is PM 1300, Fiber length 1 m with 0.9mm Blue Losse Tube ,FC/APC connector, slow axis aligned to key. | |||||||||||
