| Brand Name: | Gracyfiber |
| MOQ: | 1pieces |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

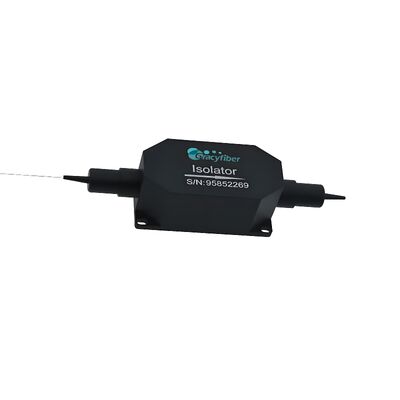

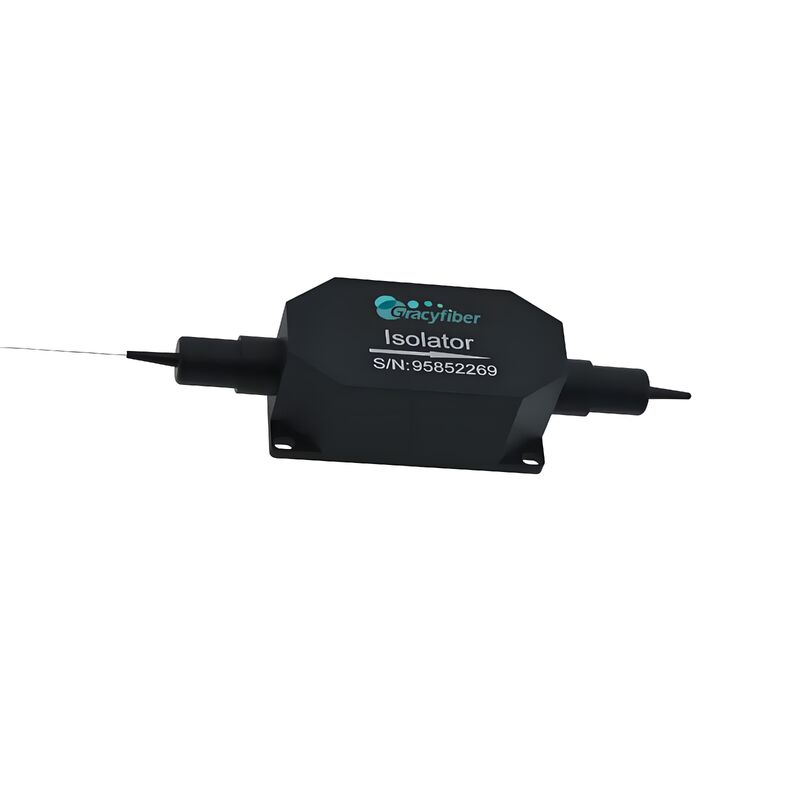

Polarization Maintaining PM Isolator Optical Isolator Low Insertion Loss Wide Wavelength Range For Fiber Amplifier Laser And Optical Measurement
1. Product Description
This Polarization Maintaining Isolator is a high-performance passive optical device designed for polarization-maintaining fiber optic systems.
2. Key Features
|
Type Parameter |
1550/1480,1550/1310,1480/1550 |
1550/980 |
||
|
Isolator Stage |
Single Stage |
Dual Stage |
Single Stage |
Dual Stage |
|
Isolation (dB) |
≥21 |
≥36 |
≥21 |
≥36 |
|
Insertion loss (Signal) (dB) |
≤0.9 |
≤1.0 |
≤0.9 |
≤1.0 |
|
Signal wavelength range (nm) |
1528~1565(C-band), 1450~1490 |
1528~1565(C-band) |
||
|
Pump wavelength range (nm) |
1450~1490;1270~1350, 1528~1565(C-band) |
965~995 |
||
|
Insertion loss (Pump) (dB) |
≤0.5 |
≤0.8 |
||
|
Transmitted Isolation (Pump) (dB) |
≥30 |
≥30 |
||
|
Reflected Isolation (Signal) (dB) |
≥15 |
≥15 |
||
|
Extinction Ratio (dB) |
≥21 |
|||
|
Directivity (dB) |
≥55 |
|||
|
Power handling (mW) |
≤1000 |
|||
3. Applications
EDFA
Fiber Optic Instrument
Fiber Laser
Fiber Sensor
Polarization-Maintaining Optical Communication Systems
High-Stability Reflection Suppression and Link Protection Scenarios
FAQ
Q1: What operating wavelengths does this PM Isolator support?
A: This product supports common communication wavelengths such as 1310nm, 1480nm, and 1550nm, with an operating bandwidth of ±20nm. Wavelength options such as 1064nm and 1650nm are also available in the ordering information, allowing for configuration according to different system requirements.
Q2: What are the main performance advantages of this polarization-maintaining isolator?
A: This product features low insertion loss, high isolation, high extinction ratio, high return loss, and high stability. The single-stage model achieves a peak isolation of 40–42dB, while the dual-stage model achieves a peak isolation of 55–58dB; return loss is ≥55dB, and the maximum power handling capacity is ≤300mW.
Q3: Does this PM Isolator support customization?
A: Customization is supported. Customers can choose the operating wavelength, single/dual-stage structure, slow-axis or dual-axis operation, packaging type, fiber sheath, fiber length, and connector type according to their needs. Connectors are available in FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC, or other custom specifications; the default connector key position is aligned with the slow axis and blocked by the fast axis.
