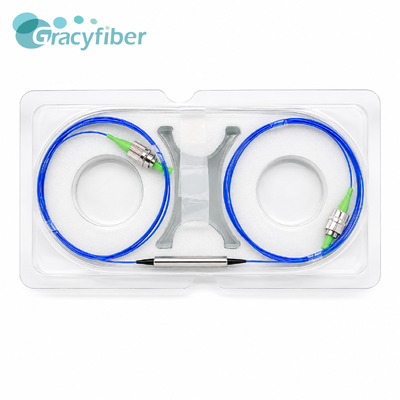

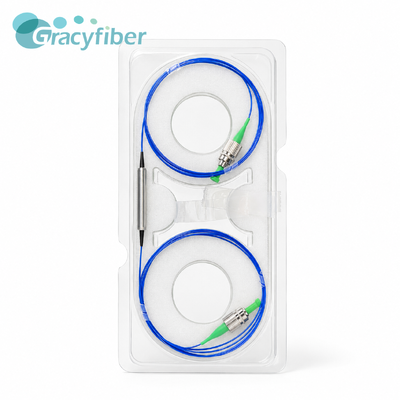

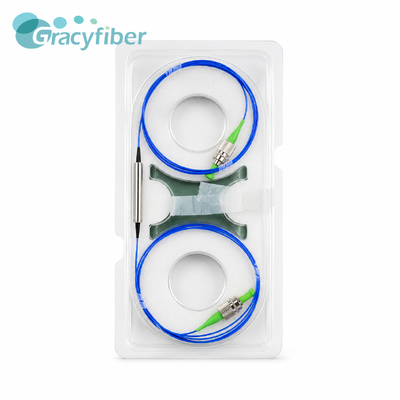

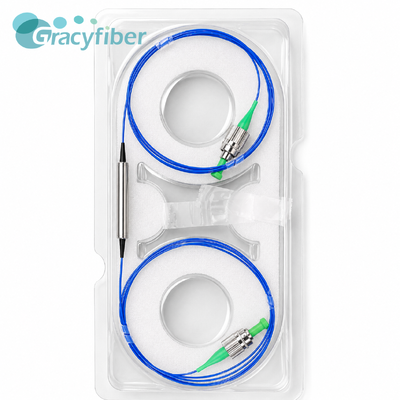

The 1550 nm dual-stage polarization-maintaining optical isolator is designed to protect polarization-sensitive lasers and optical systems from backward-propagating light. Its dual-stage configuration provides isolation of ≥45 dB while maintaining insertion loss of ≤0.9 dB across the specified 1550 ±15 nm operating wavelength range.
An optical isolator is a directional component. The arrow indicates the permitted forward transmission direction. Installing the device in the reverse direction can result in high optical loss because backward-propagating light is intentionally blocked.
The isolator is configured to transmit light aligned with the slow axis of the PM1550 fiber while attenuating the orthogonal fast-axis polarization. This configuration helps maintain the required polarization state and supports an extinction ratio of at least 21 dB.
