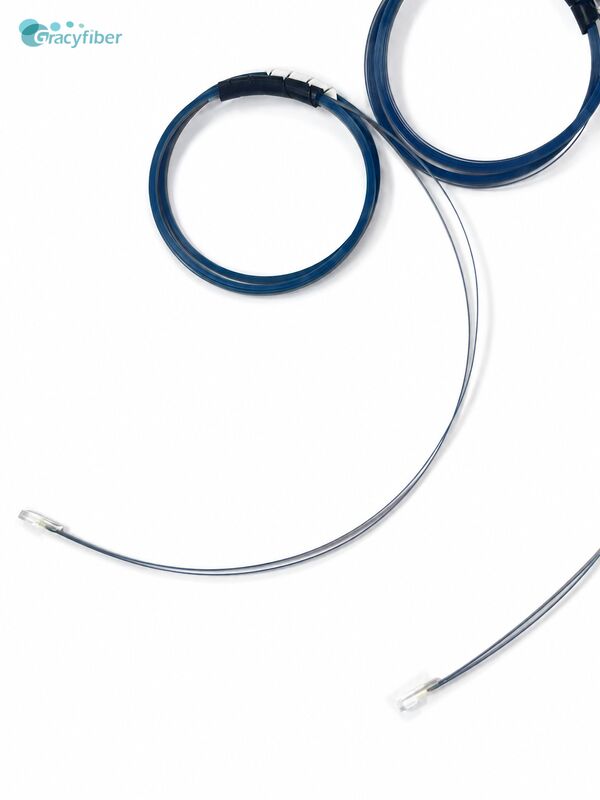

Custom MFD Fiber Array 1310nm 1550nm For Silicon Photonics / Indium Phosphide

Custom MFD Fiber Array 1310nm 1550nm For Silicon Photonics / Indium Phosphide

Brand Name: Gracyfiber
MOQ: 100pcs
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO CE RoSH
Name:
MFD Fiber Array
Fiber Pitch:
250 µm Standard
Operating Temperature:
-40°C To 85°C
Operating Wavelength:
1260 Nm To 1625 Nm
Insertion Loss:
< 0.3 DB
Return Loss:
> 55 DB
Fiber Count:
Up To 64 Fibers
Highlight:

Custom MFD Fiber Array

,

MFD Fiber Array 1310nm

,

MFD Fiber Array 1550nm

Product Description

Custom MFD Fiber Array 1310nm 1550nm

1. Product Overview

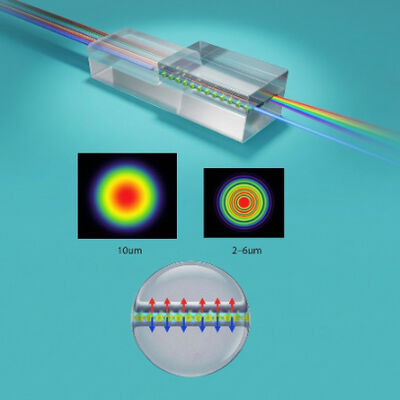

  GRACYFIBER's Mode Field Matched Single-Mode Fiber Array (SM MFD FA) is a core optical coupling component designed to completely solve the mode mismatch problem between standard single-mode fiber and photonic integrated circuits (PICs). For high-confinement waveguide devices such as silicon photonics (SiPh), indium phosphide (InP), and lithium niobate (LiNbO₃), we provide precise mode field diameter (MFD) conversion solutions through deep customization of fiber type, core parameters, and array geometry. Offering flexible lidded or lidless structures, this array is perfectly compatible with both edge coupling and butt coupling processes, significantly reducing coupling loss in optical packaging and greatly improving alignment tolerance, making it the preferred solution for high-density, low-profile photonic packaging.

2. Product Features
PM MFD FA
Parameter Unit 1 2 4 8 12 16 24 32
Wavelength nm 1310/1550
Materials - Pyrex, Tempax, Quartz, Silicon
Lid Option   Lid / Lidless
CorePitch - - 250 127/250 127/250 127/250 127 127 127
Core Pitch Tolerance μm +/-0.3 +/-0.5

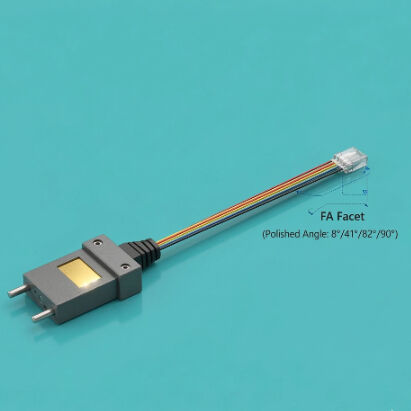

Polish Angle Degree 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°)
Angle Type - A Type or V Type
Insertion Loss dB ≤0.5(Typical 0.3)
Polarization Extinction Ratio (PER) dB ≥16 (Typical≥18)
Polarization Axis Reference - Slow axis / Fast axis
Axis Orientation Degree 0° /45°/ 90° / Customized
Axis Alignment Accuracy Degree ≤ ±2° (Typ. ±1°)
Mode Field Diameter um 6.0 μm / 7.5 μm / 9.0 μm @ 1310 / 1550 nm
or Customized (3.3–10 μm available)
MFD Tolerance -  ±0.5 μm (Typical ±0.3 μm)
Coupling Optimization - Optimized for improved coupling efficiency to SiPh / PIC devices
Return Loss dB UPC≥45, APC≥55
FA Dimension W mm 2.5 2.5 2.5 2.5 3.5 3.5 5.7 5.7
H mm 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
L mm 10 10 10 10 10 12 12 12
- - Standard or Customized
PM Fiber Type - UHNA1/UHNA3/UHNA4/UHNA7&PM Panda fiber
Fiber Coating um 250 µm / 900 µm loose tube / ribbon (optional)
Fiber Type Length cm 100+/-10 or customized
Connector - .FC/LC/SC/E2000/MT/MPO/MMC
Operation Temperature °C -5~65
Storage Temperature °C -40~85
SM MFD FA
Parameter Unit 1 2 4 8 12 16 24 32 48
Wavelength nm 1310/1550
Materials - Pyrex, Tempax, Quartz, Silicon
Lid Option   Lid / Lidless
CorePitch - - 250 127/250 127/250 127/250 127 127 127 127
Core Pitch Tolerance μm +/-0.3 +/-0.5 +/-0.7
Polish Angle Degree 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°)
Angle Type - A Type or V Type
Insertion Loss dB ≤0.8ypical 0.5)
Return Loss dB UPC≥45, APC≥55
Mode Field Diameter um 6.0 μm / 7.5 μm / 9.0 μm @ 1310 / 1550 nm
or Customized (2.6–10 μm available)
MFD Tolerance -  ±0.5 μm (Typical ±0.3 μm)
Coupling Optimization - Optimized for improved coupling efficiency to SiPh / PIC devices
FA Dimension W mm 2.5 2.5 2.5 2.5 3.5 3.5 5.7 5.7 9
H mm 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
L mm 10 10 10 10 10 12 12 12 12
- - Standard or Customized
PM Fiber Type - UHNA1/UHNA3/UHNA4/UHNA7&G657A1&G657A2
Fiber Coating um 250 µm / 900 µm loose tube / ribbon (optional)
Fiber Type Length cm 100+/-10 or customized
Connector - .FC/LC/SC/E2000/MT/MPO/MMC
Operation Temperature °C -5~65
Storage Temperature °C -40~85

(Designed to solve your optical chip coupling loss and packaging tolerance pain points)

Features: Highly customizable Mode Field Diameter (MFD) and extremely narrow tolerances

Benefit: Supports customizable MFDs within the range of 6.0 μm, 7.5 μm, 9.0 μm, or 2.6–10 μm at 1310/1550 nm wavelengths, with tolerances strictly controlled within ±0.5 μm (typical ±0.3 μm). This perfectly matches the mode field of the photonic chip's microwaveguide, greatly eliminating optical losses caused by mode mismatch and maximizing the optical power transmission efficiency of your product.

Features: Optimized ultra-low insertion loss (≤0.5 dB, typical 0.3 dB) and high return loss

Benefit:Combined with excellent return loss performance of UPC ≥45 dB and APC ≥55 dB, this feature minimizes system back reflection and saves optical power budget, which is crucial for highly sensitive coherent optical modules and precision optical sensing systems.

Features: Wide selection of specialty fibers (UHNA series and G657A1/A2)

Benefit:The array can use ultra-high numerical aperture fiber (such as UHNA1/3/4/7) or bend-resistant fiber. This not only improves coupling efficiency with miniaturized silicon photonic chips but also gives the fiber an extremely small bending radius, greatly simplifying the wiring design within the confined space of the optical module.

Features: High-precision pitch alignment and flexible channel expansion (1 to 48 channels)

Benefit: Supports 127 μm and 250 μm core pitch with tolerances as low as ±0.3 μm. This highly consistent multi-channel expansion capability helps customers quickly iterate from single-channel to 48-channel high-density photonic integration architectures without worrying about yield degradation.

Features: Diverse substrate material matching (Pyrex, Tempax, Quartz, Silicon)

Benefit: Allows customers to select the appropriate substrate based on the characteristics of their active devices. This ensures that the coefficient of thermal expansion (CTE) of the component is completely consistent with that of the silicon wafer or InP chip, guaranteeing extreme thermal stability in operating environments from -5°C to 65°C.

3. Applications

Our SM MFD FA is specifically designed to optimize coupling efficiency for high-order photonic integrated circuits:

  • Silicon Photonics (SiPh) and InP Optoelectronics: Solves mode field mismatch issues between standard optical fibers and micro/nano waveguides.
  • Co-packaged Optics (CPO) Systems: Provides low-loss optical I/O interfaces for next-generation ultra-high bandwidth switching chips.
  • Lithium Niobate (LiNbO₃) Modulators: Provides a high-coupling-efficiency, low-insertion-loss physical interface.
  • Coherent Optical Communication Modules: Meets the stringent optical power requirements of long-distance and metropolitan area network transmissions.
  • Optical Sensing and Interferometry Systems: Ensures high stability and high signal-to-noise ratio in optical paths.
4. Packaging Options
  • Pigtailed
  • FAU
  • Hermetic
  • Lidless
  • Hybrid Integration Ready
