| Brand Name: | Gracyfiber |
| Model Number: | PMAAWG-48XFMC15ST0905-22 |
| MOQ: | 1pieces |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |

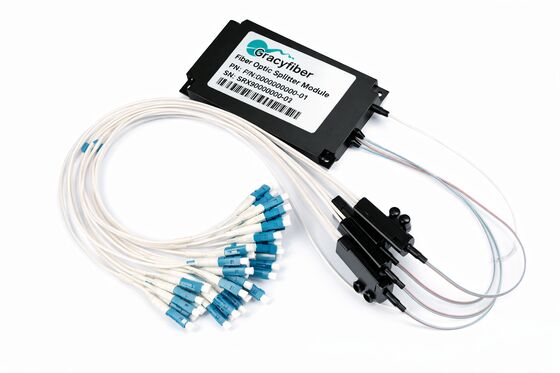

PM-AAWG-48CH-100G-F&G-Module: 48-Channel, 100GHz, Polarization-Maintaining, Thermally Stabilized Arrayed Waveguide Grating Module—Designed For C-Band DWDM, ROADM, Data Centers, And Optical Transmissio
The PM-AAWG-48CH-100G-F&G-Module is a polarization-maintaining (PM), thermally stabilized Arrayed Waveguide Grating (AAWG) multiplexer/demultiplexer module designed for C-band DWDM systems.
| Parameters | Unit | Value | ||
|---|---|---|---|---|
| Operating Wavelength | nm | 1525~1565 | ||
| Pass Band Type | / | Flat-top | Gaussian | |
| Channel Port Number | / | 48 | 48 | |
| Center Wavelength | / | ITU Grid(C21 ~C60) or Customized | ||
| Channel Space | nm | 0.8 | ||
| Center Wavelength Accuracy | nm | +/-0.05 | ||
| Pass band @1dB | nm | ≥0.38 | ≥0.2 | |
| Pass band @3dB | nm | ≥0.58 | ≥0.4 | |
| Isolation | Adjacent | dB | ≥23 | ≥25 |
| Non-adjacent | dB | ≥30 | ≥30 | |
| Uniformity | dB | ≤1.5 | ||
| Ripple | dB | ≤0.5 | ≤1.5 | |
| ER | dB | ≥16 | ||
| RL | dB | ≥45 | ||
| Directivity | dB | ≥50 | ||
| Power | mw | ≤300 | ||
| Fiber Type | / | G657.A1 with 0.9mm loose tube | ||

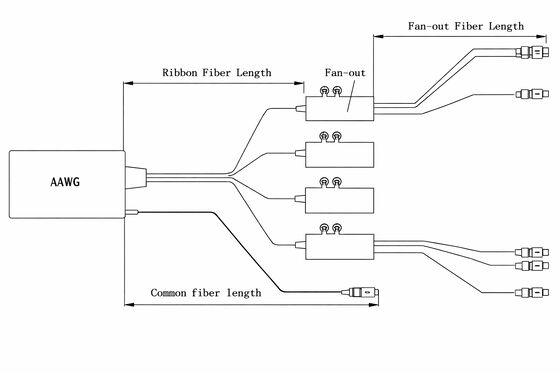

| Fiber Length(m) (Ribbon Fiber+Fan-out Fiber) |
m | 0.5+/-0.1 or Customized | ||
| Operating Temperature | ℃ | -5~65 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Housing | mm | 120*70*11 | ||
*Above specifications are for devices without connector.
*For devices with connectors,lL+0.3dB.RL-5dB.ER-2dB
*The default connector key is aligned to slow axis.

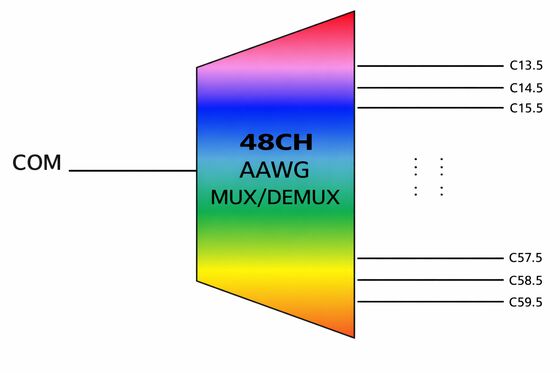

The AWG operate in C-band. The C-band channel allocation is based on ITU-T Grid. The channels are as follows:
| No. | ITU | Frequency | Center Wavelength |
No. | ITU | Frequency | Center Wavelength |
|
|---|---|---|---|---|---|---|---|---|
| Channel | THz | nm | Channel | THz | nm | |||
| 1 | C15 | 191.50 | 1565.50 | 25 | C39 | 193.90 | 1546.12 | |
| 2 | C16 | 191.60 | 1564.68 | 26 | C40 | 194.00 | 1545.32 | |
| 3 | C17 | 191.70 | 1563.86 | 27 | C41 | 194.10 | 1544.53 | |
| 4 | C18 | 191.80 | 1563.05 | 28 | C42 | 194.20 | 1543.73 | |
| 5 | C19 | 191.90 | 1562.23 | 29 | C43 | 194.30 | 1542.94 | |
| 6 | C20 | 192.00 | 1561.42 | 30 | C44 | 194.40 | 1542.14 | |
| 7 | C21 | 192.10 | 1560.61 | 31 | C45 | 194.50 | 1541.35 | |
| 8 | C22 | 192.20 | 1559.79 | 32 | C46 | 194.60 | 1540.56 | |
| 9 | C23 | 192.30 | 1558.98 | 33 | C47 | 194.70 | 1539.77 | |
| 10 | C24 | 192.40 | 1558.17 | 34 | C48 | 194.80 | 1538.98 | |
| 11 | C25 | 192.50 | 1557.36 | 35 | C49 | 194.90 | 1538.19 | |
| 12 | C26 | 192.60 | 1556.55 | 36 | C50 | 195.00 | 1537.40 | |
| 13 | C27 | 192.70 | 1555.75 | 37 | C51 | 195.10 | 1536.61 | |
| 14 | C28 | 192.80 | 1554.94 | 38 | C52 | 195.20 | 1535.82 | |
| 15 | C29 | 192.90 | 1554.13 | 39 | C53 | 195.30 | 1535.04 | |
| 16 | C30 | 193.00 | 1553.33 | 40 | C54 | 195.40 | 1534.25 | |
| 17 | C31 | 193.10 | 1552.52 | 41 | C55 | 195.50 | 1533.47 | |
| 18 | C32 | 193.20 | 1551.72 | 42 | C56 | 195.60 | 1532.68 | |
| 19 | C33 | 193.30 | 1550.92 | 43 | C57 | 195.70 | 1531.90 | |
| 20 | C34 | 193.40 | 1550.12 | 44 | C58 | 195.80 | 1531.12 | |
| 21 | C35 | 193.50 | 1549.32 | 45 | C59 | 195.90 | 1530.33 | |
| 22 | C36 | 193.60 | 1548.51 | 46 | C60 | 196.00 | 1529.55 | |
| 23 | C37 | 193.70 | 1547.72 | 47 | C61 | 196.10 | 1528.77 | |
| 24 | C38 | 193.80 | 1546.92 | 48 | C62 | 196.20 | 1527.99 |
| Part Number | Product Description |
|---|---|
| PMAAWG-48XFMH13ST0905-22 | 100G Flat-top PM AAWG Module C13.5~C60.5,48CH Port, Metal box(120*70*11mm), 0.5m Ribbon Fiber&0.5m Fanout Fiber with 0.9mm White Tube color, FC/APC connectors. |
1: Does it support OEM/ODM or project customization?
A: Yes. The center wavelength of this module can be configured according to ITU Grid or Customized standards, and the pigtail length can be 0.5±0.1 m or customized. For equipment manufacturers, system integrators, and operator projects, we can customize channel solutions, connectors, packaging, labels, pigtail lengths, and testing items according to requirements.
2: What are the standard packaging, fiber optic, and connector configurations?
A: This product uses a 120 × 70 × 11 mm metal box for easy integration into 1U/2U chassis or submodules. The ordering information shows that the standard configuration is 0.5 m ribbon fiber + 0.5 m fan-out fiber, 0.9 mm white sleeve, and FC/APC connector; the page also states that the default connector key is aligned with the slow axis.
