| Model Number: | 910001461 |

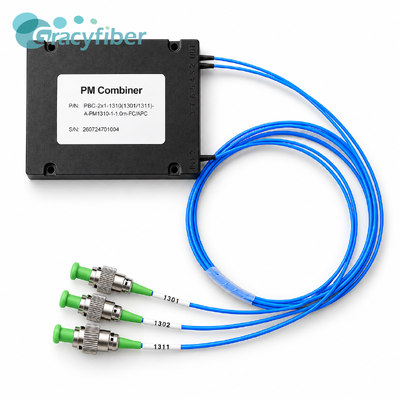

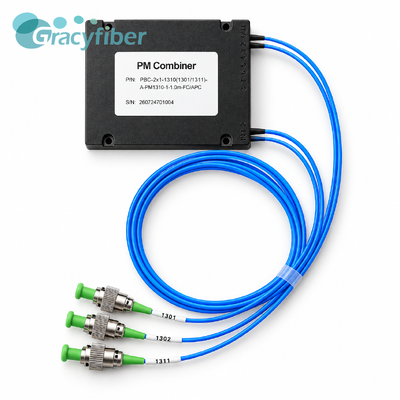

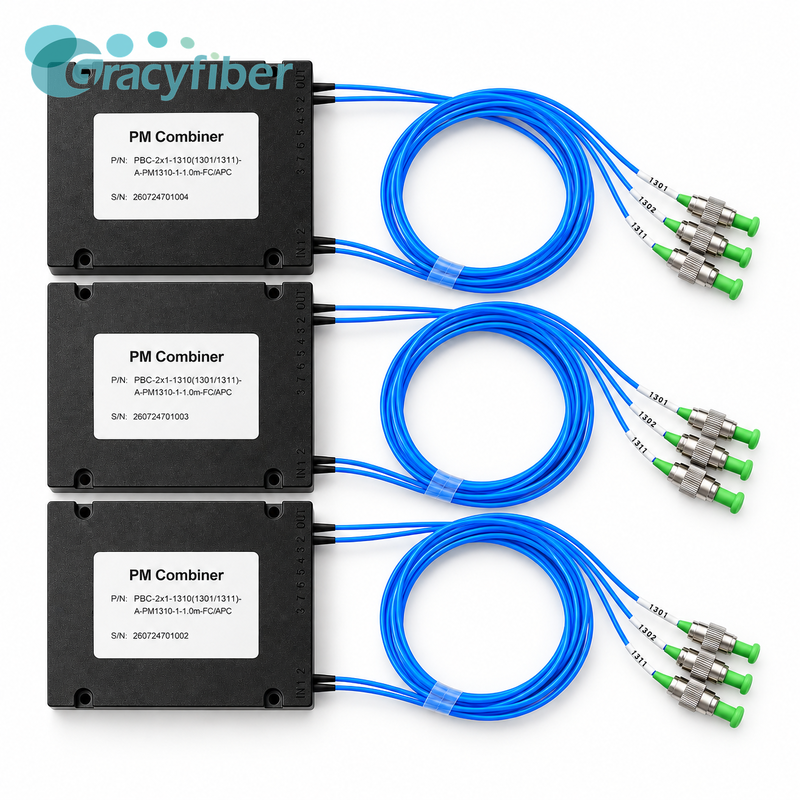

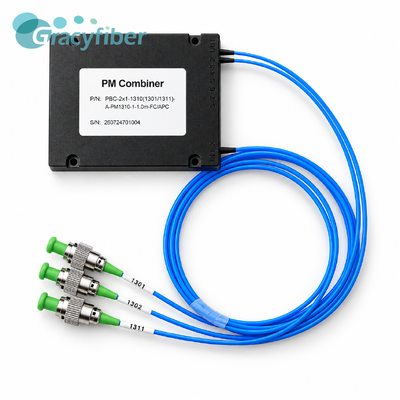

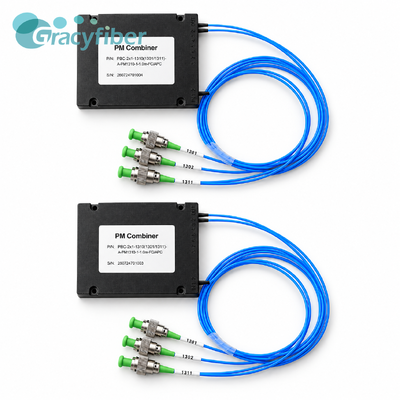

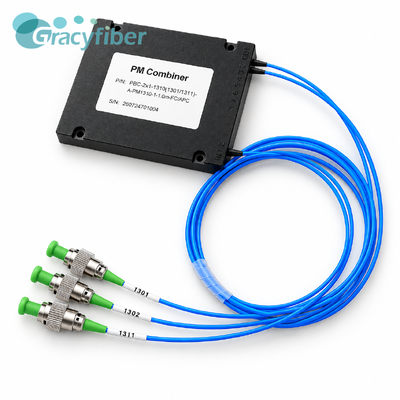

The PM Combiner 1310nm (1301/1311nm) 2×1 Polarization Maintaining Fiber Combiner is a high-performance passive optical component designed for combining two polarization-maintaining optical signals at 1301nm and 1311nm wavelengths into a single output fiber.
A PM Combiner combines two polarization-maintaining optical signals into one output fiber while maintaining polarization characteristics. It is commonly used in systems requiring stable polarization control and efficient optical signal integration.
This model supports two input wavelengths:
The device combines these signals through a 2×1 configuration.
The product uses:
PM 1310 Panda Fiber
with slow axis working configuration.
This product configuration uses:
Fiber length:
| Testing Data Sheet | ||||||||||
| Product Name: | PM Combiner ,1310(1301/1311),100x80x10 Module,0.9mm Cable,1.0m | |||||||||
| P/N: | PBC-2x1-1310(1301/1311)-A-PM1310-1-1.0m-FC/APC | |||||||||
| S/N: | ||||||||||
| Testing Data | ||||||||||
| Parameter | Units | Value | ||||||||
| Module | 2x1 | |||||||||
| Operating Wavelength | nm | 1301 | 1311 | |||||||
| Insertion Loss | dB | 0.79 | 0.56 | |||||||
| PER | dB | 19.7 | 18.6 | |||||||
| Return Loss | dB | ≥50 | ||||||||
| Connectors | Input:1m,Output:1m.900um Loose Tube,FC/APC, Slow Axis Working |
|||||||||
| Fiber Type | PM 1310 Panda Fiber | |||||||||
| Power Handling | mW | 300 | ||||||||
| Operating Temperature | °C | -5 ~ +70 | ||||||||
| Storage Temperature | °C | -40 ~ +80 | ||||||||
| Dimensions (LxWxH) | mm | 100x80x10 | ||||||||
GracyFiber provides flexible PM Combiner configurations according to different optical system requirements.
Available customization options:
The PM Combiner is a precision optical component designed for polarization-maintaining applications where stable optical combining performance is required.
The device integrates two PM optical input channels operating at 1301nm and 1311nm wavelengths and combines them into a single PM output path. The use of PM 1310 Panda Fiber helps maintain polarization characteristics during signal transmission, making the component suitable for polarization-sensitive optical systems.
The module features low insertion loss performance with measured values of 0.95 dB at 1301nm and 0.84 dB at 1311nm, while maintaining high return loss of ≥50 dB. The polarization extinction ratio reaches 18.9 dB at 1301nm and 27.9 dB at 1311nm, supporting applications requiring controlled polarization behavior.
The compact 100×80×10 mm aluminum module package provides mechanical protection and integration flexibility. With FC/APC connectors and 0.9mm loose tube fiber construction, the PM Combiner can be easily integrated into optical instruments, communication equipment, and laboratory systems.
In fiber laser architectures, PM Combiner can combine multiple polarization-maintaining optical sources while preserving polarization characteristics, helping improve system stability.
For polarization-sensitive sensing systems, the PM Combiner enables reliable optical signal combining while maintaining polarization information.
The component supports optical systems requiring precise wavelength combining and polarization management.
Looking for a customized PM Combiner solution for polarization-maintaining optical systems?
Contact GracyFiber for technical consultation, optical design support, and customized PM component solutions.
