40 Channel 100GHz Flat Top DWDM AAWG Module AAWG 40 LL C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer

40 Channel 100GHz Flat Top DWDM AAWG Module AAWG 40 LL C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer

Detail Information
Product Description
Detail Information
Channel Count:
40
Channel Spacing:
100GHz
Insertion Loss:
≤5.8dB
Operating Temperature:
-5~+65°C
Highlight:

40 Channel DWDM AAWG Module

,

100GHz Flat Top DWDM Multiplexer

,

LC UPC Fiber Optic Demultiplexer

Product Description

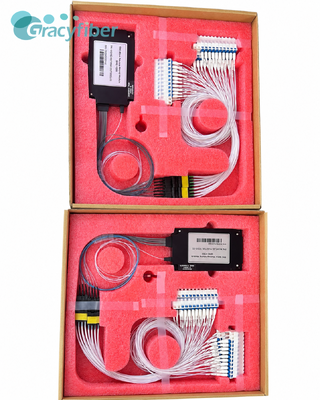

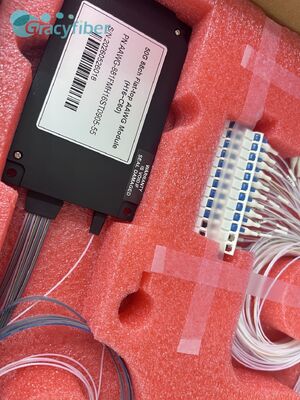

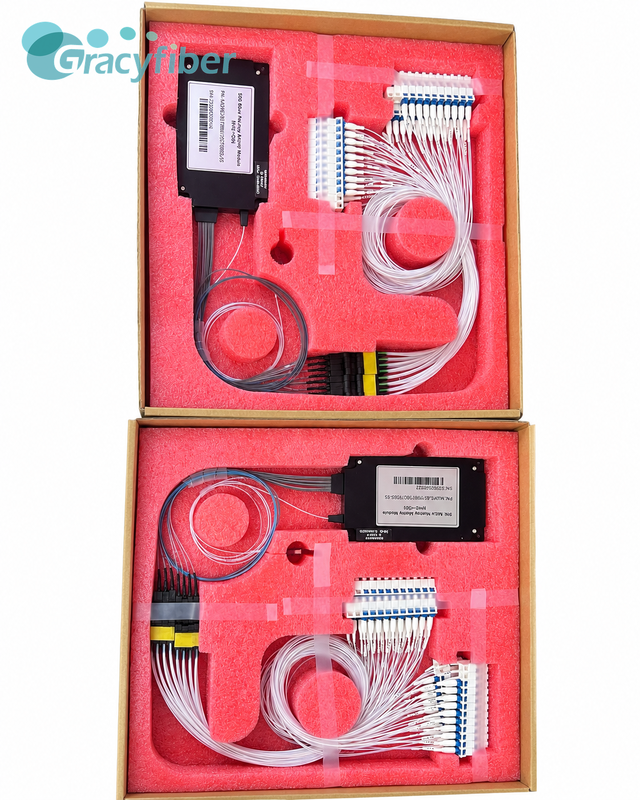

40 Channel 100GHz Flat Top DWDM AAWG Module AAWG 40 LL C21 C60 Low Insertion Loss LC UPC Fiber Optic Multiplexer Demultiplexer
1. Product Overview

This product is the AAWG-40-LL 40-wavelength 100GHz DWDM AAWG module, featuring a flat-top AAWG design covering channels C21–C60.

2. Core Product Features
Parameters Unit 48CH 100G DWDM AAWG Module
Channel CH 48 (C14~C61)
Chip type / Flat Top
Operating wavelength nm 1525~1565
Channel Spacing GHz 100
Channel Pass band nm ITU±0.11
Insertion Loss dB ≤5.8 (典型值≤5.5)
Bandwidth@1dB nm ≥0.4
Bandwidth@3dB nm ≥0.6
Adjacent Isolation dB ≥23
Non-adjacent Isolation dB ≥29
Non-adjacent Crosstalk dB ≥21
Return Loss dB ≥45
Directivity dB ≥50
Channel Uniformity dB ≤1.5
Ripple dB ≤0.5
PDL dB ≤0.5
Chromatic Dispersion ps/nm ±20
Operating Temperature °C -5~+65
Packaging dimension mm L120*W70*H11
  • 40-wavelength DWDM channel design
  • Flat-top AAWG structure
  • Low insertion loss performance
  • Excellent isolation and low crosstalk
  • Engineering-engineered packaging and fiber output configuration
3. Applications
  • 100G integrated wavelength division multiplexing transmission systems
  • DWDM dense wavelength division multiplexing/demultiplexing systems
  • Metropolitan area networks, backbone networks, and carrier optical transmission networks
  • Data center interconnection and high-capacity link expansion
  • Integration of optical transmission equipment, wavelength division platforms, and subsystems
  • Multi-wavelength optical signal testing, monitoring, and laboratory verification platforms
