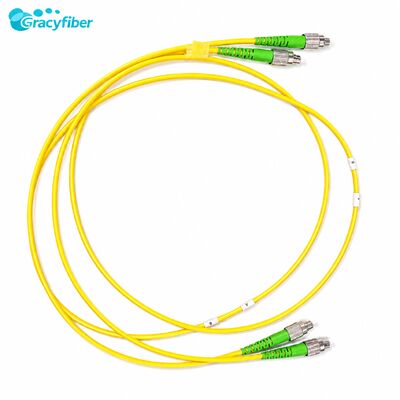

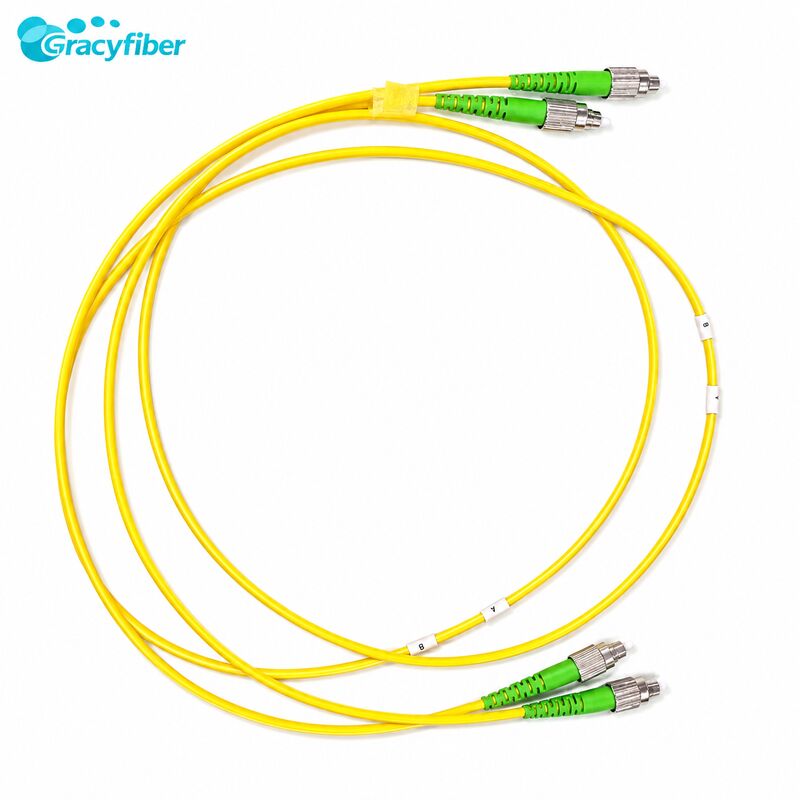

PM Fiber Patch Cord FC APC FC UPC SC LC 1310nm 1480nm 1550nm 980nm 1064nm 850nm

  This product is a Polarization Maintaining Fiber Patchcord, used to achieve highly stable, high extinction ratio optical signal connections and extensions in various polarization-maintaining fiber systems. It is available in multiple specifications, including 1310 / 1480 / 1550 nm communication bands and 980 / 1064 / 850 nm laser bands, and supports common connector types such as FC/UPC, SC/UPC, LC/UPC, FC/APC, and SC/APC. Typical insertion loss is as low as ≤0.3 dB (1310/1480/1550 nm), return loss can reach up to ≥55 dB (APC type), extinction ratio ≥22–23 dB, and critical axial alignment error ±3°, making it suitable for applications sensitive to polarization and power loss.

• Low Insertion Loss, Lower Link Loss

    Insertion loss is ≤0.3 dB in the 1310 / 1480 / 1550 nm band, ≤0.5 dB in the 980 / 1064 nm band, and ≤0.8 dB in the 850 nm band. This minimizes the impact of connection points on system OSNR and power budget, making it suitable for long-distance or high-precision systems.

• High Return Loss and High Extinction Ratio

    The UPC type has a return loss of ≥50 dB, and the APC type has a return loss of ≥55 dB. Combined with an extinction ratio of ≥22–23 dB, it effectively suppresses end-face reflections and undesired polarization components, providing a more stable operating environment for fiber lasers, coherent detection, and polarization-maintaining amplifiers.

• Multi-wavelength, multi-fiber type coverage

    Utilizing PM1310 / PM1550 / PM980 / PM850 panda-type polarization-maintaining fiber, corresponding models are available from the communication C/O band to the 850 nm, 980 nm, and 1064 nm laser bands, facilitating unified selection and management of multiple wavelengths on a single platform for OEMs.

• Slow Axis Alignment, Controllable Polarization Direction

    Patch cords default to Slow Axis operation. Connector keys are aligned with the slow axis, with an axial error of ≤±3°. This helps to unify the polarization reference direction in the system, reducing power fluctuations and measurement errors caused by inconsistent polarization states.

• Flexible Length, Customizable

    Standard fiber length is 100±5 cm, but longer or special lengths can be customized according to customer needs, facilitating cabling for different chassis structures and experimental platforms.

• High Stability and Environmental Adaptability

    Operating temperature range: -5～+70 ℃, storage temperature: -40～+80 ℃. Combined with high-quality connectors and strict process control, it ensures excellent insertion loss, return loss, and extinction ratio performance even after long-term operation and repeated insertions and removals.

• Structural Form

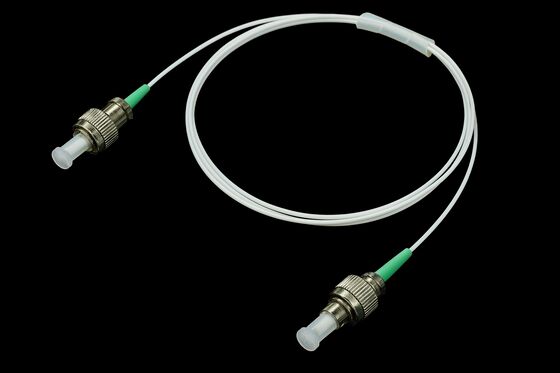

    The standard is a single section of polarization-maintaining fiber, covered with a 0.9 mm white loose tube, with connectors at both ends or bare fiber. The overall length is 1000±50 mm (customizable), meeting the cabling needs of standard server racks and laboratory desktops.

• Fiber Optic Fiber and Sheath

  Fiber Type: PM1310, PM1550, PM980, PM850 Panda Polarization Maintaining Fiber

  Sheath Type:

  • 02 = 250 μm Bare Fiber
  • 09 = 0.9 mm Loose Tube (Standard)
  • 20 = 2.0 mm Sheath
  • 30 = 3.0 mm Sheath
  • XX = Other Custom Structures
• Connector Configuration

  Optional: FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC, or combinations with a connector on one end and no connector on the other.

    Align the connector keyways with the slow axis of the polarization maintaining fiber to ensure clear and easy identification of the polarization direction during installation, splicing, and replacement.

  Model Format: PMPC-XXX XX XX XX- X X

  • XXX: Operating Wavelength (085=850 nm, 098=980 nm, 106=1064 nm, 131=1310 nm, 148=1480 nm, 155=1550 nm)
  • Axis: SA=Slow Axis, FA=Fast Axis
  • Fiber Type: 02/09/20/30 corresponds to different sheaths
  • Fiber Length: 10=1.0 m, XX=Custom
  • Com/Port Connector: 0–6 or X corresponds to various connector types
