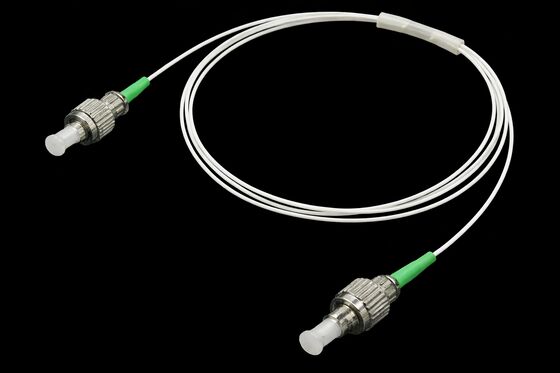

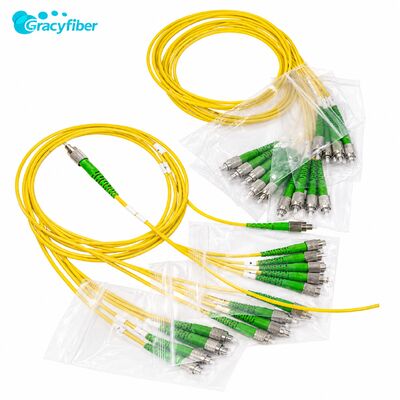

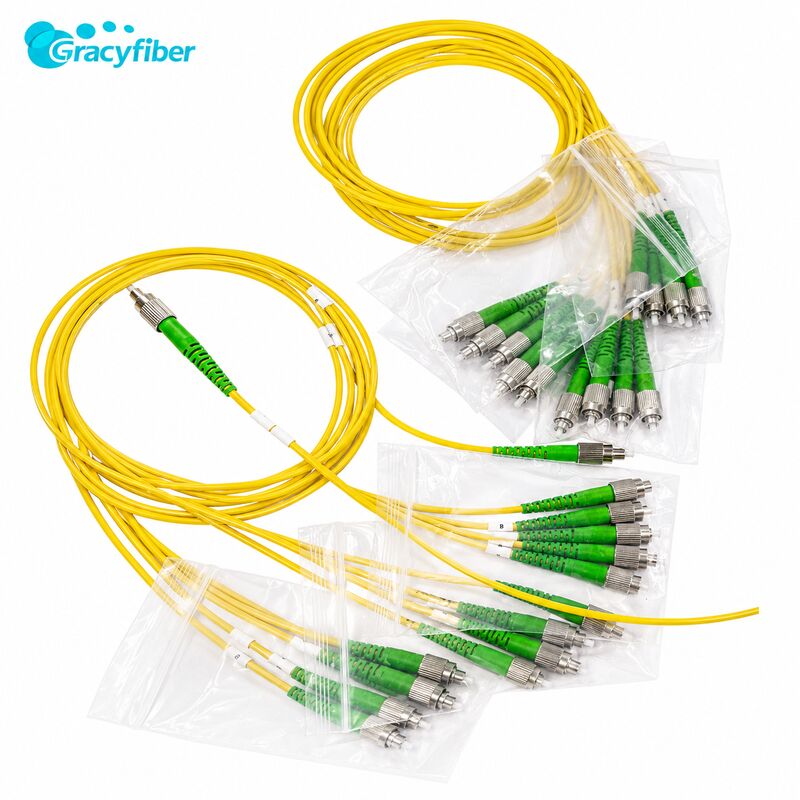

Low Insertion Loss PM Patch Cord 1550nm For High Efficiency Transmission

  Polarization-maintaining fiber patch cords are high-performance fiber optic connectors used in polarization-sensitive optical communication systems. Utilizing polarization-maintaining fiber (PMF), they effectively maintain the polarization state of optical signals, ensuring that polarization changes are avoided in fiber optic connections, thereby improving signal stability and transmission quality. These fiber patch cords are primarily used in optical systems requiring strict control of optical signal polarization, such as fiber lasers, fiber amplifiers, and optical testing equipment.

  This product features low insertion loss, high return loss, and high extinction ratio. It operates stably over a wide operating temperature range and complies with RoHS environmental standards, making it an indispensable optical component in optical communication, laser systems, and scientific research experiments.

  Polarization-maintaining fiber optic patch cords are widely used in several optical fields requiring controlled polarization of light:

• Fiber Lasers: In fiber laser systems, polarization-maintaining fiber optic patch cords ensure that the output signal polarization direction of the laser remains consistent, improving the stability and consistency of the laser output.
• Fiber Amplifiers: In fiber amplifiers, polarization-maintaining fiber optic patch cords reduce polarization distortion, improving amplifier efficiency and output signal quality.
• Optic Lab Use: In optical laboratories, polarization-maintaining fiber optic patch cords are widely used in various optical instruments to ensure stable transmission of polarized light signals and avoid experimental errors.
• Fiber Sensors: In fiber optic sensors, polarization-maintaining fiber optic patch cords accurately transmit polarized light signals, ensuring sensing accuracy and sensitivity.
• Optical Communication Systems: In optical communication systems requiring high-precision control of optical signals, polarization-maintaining fiber optic patch cords ensure high-quality signal transmission.

  Polarization-maintaining fiber optic patch cords have the following significant characteristics:

• Low Insertion Loss: Typical insertion loss ≤0.3dB, ensuring minimal loss of optical signals during transmission and improving overall system performance.

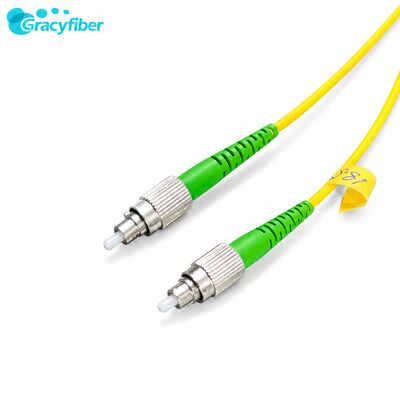

• High Return Loss: FC/APC connector type return loss ≥55dB, effectively reducing signal reflection and echo effects, ensuring stable signal quality.
• High Extinction Ratio: Extinction ratio ≥23dB, ensuring the accuracy of polarized signal transmission and avoiding interference from other polarized light.
• High Stability and Reliability: Excellent temperature stability, operating temperature range from -5℃ to +70℃, ensuring stable operation in various environments.
• High-Quality Fiber Material: Utilizes PM1550 (Corning Panda) polarization-maintaining fiber, with excellent polarization-maintaining characteristics, ensuring the stability and accuracy of optical signal transmission.
• Environmentally Compliant: Complies with RoHS environmental requirements, contains no harmful substances, and meets modern environmental regulations.

    In practical applications, polarization-preserving fiber optic patch cords perform exceptionally well:

• Applications in Laser Systems: In fiber lasers, polarization-preserving fiber optic patch cords ensure the stability of the output laser, preventing output power instability caused by changes in polarization direction.
• Applications in Fiber Optic Amplifiers: In fiber optic amplifiers, polarization-preserving fiber optic patch cords help reduce polarization-related losses, ensuring stable signal amplification and improving amplifier performance.
• Applications in Optical Experiments and Testing: In precision optical experiments, polarization-preserving fiber optic patch cords are used to accurately control the polarization direction of optical signals, reducing experimental errors and improving the accuracy of experimental results.
• Applications in Fiber Optic Sensor Systems: In fiber optic sensors, polarization-preserving fiber optic patch cords help improve the sensor's measurement sensitivity and accuracy by maintaining the polarization state of light.

  Polarization-maintaining fiber optic patch cords offer several significant advantages over ordinary fiber optic patch cords:

• Superior Polarization Maintenance Performance: Maintains the polarization state of the optical signal during long-term transmission, reducing signal distortion.
• Low Loss and High Return Loss: Low insertion loss and high return loss design ensure efficient signal transmission while reducing reflection interference.
• High Extinction Ratio Guarantees Signal Quality: Through precise design, polarization-maintaining fiber optic patch cords effectively suppress unwanted optical signals during transmission, ensuring clear and stable signals.
• Wide Application Compatibility: Supports multiple wavelengths (e.g., 1310nm, 1550nm) and connector types (e.g., FC/APC, SC/APC), adapting to various application needs.
• Environmentally Friendly and Highly Reliable: Compliant with RoHS standards, free of hazardous substances, long service life, and adaptable to various environmental operating conditions.

  Polarization-maintaining fiber optic patch cords, as high-performance fiber optic connectors, are widely used in fiber lasers, fiber amplification, optical experiments, and optical communications due to their excellent polarization-maintaining characteristics, low insertion loss, and high return loss. Their high stability, reliability, and environmental friendliness make them an important product in modern optical networks and optical equipment. Whether in scientific research or industrial applications, polarization-maintaining fiber optic patch cords provide accurate and stable optical signal transmission, ensuring efficient system operation.
