4CH O Band LWDM Mux Module 800G Fiber Optic Multiplexer 1295 1300 1304 1309nm FC APC Low Loss for Optical Network

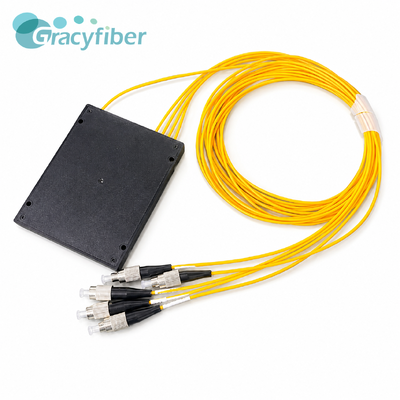

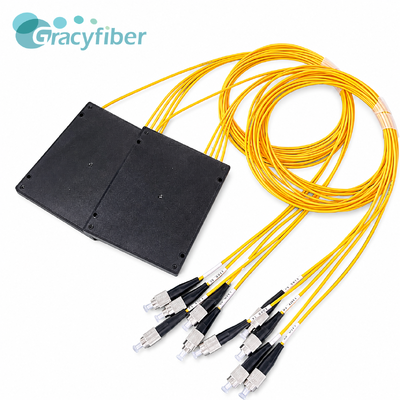

Gracyfiber manufactures a 4-channel LWDM (Fine Wavelength Division Multiplexing) cassette multiplexer (Mux, part number: F74-08003) specifically designed for 5G fronthaul and high-speed optical communication networks.
| Parameters | Mux | DeMux |
|---|---|---|
| Channel No. | 4CH | 4CH |
| Operating Wavelength (nm) | 1260~1360 | 1260~1360 |
| Channel spacing | 800G | 800G |
| Center Wavelength (nm) | 1295.56 / 1300.05 / 1304.58 / 1309.14 | 1295.56 / 1300.05 / 1304.58 / 1309.14 |
| Pass band (nm) | λc ± 1.1 | λc ± 1.1 |
| Ripple (dB) | < 0.5 | < 0.5 |
| Insertion Loss (dB) | < 1.6 | < 1.6 |
| Isolation (dB) - Adjacent | > 25 | > 25 |
| Isolation (dB) - Non-adjacent | > 35 | > 35 |
| PDL (dB) | ≤0.2 | ≤0.2 |
| RL (dB) | >45 | >45 |
| Directivity (dB) | >50 | >50 |
| Power (mw) | <300 | <300 |
| Fiber Type | SMF-28e | SMF-28e |
| Connector | FC/APC | FC/APC |
| Operating Temperature (℃) | -20~+70 | -20~+70 |
| Storage Temperature (℃) | -40~+85 | -40~+85 |
| Housing (mm) | 100*80*10 | 100*80*10 |
