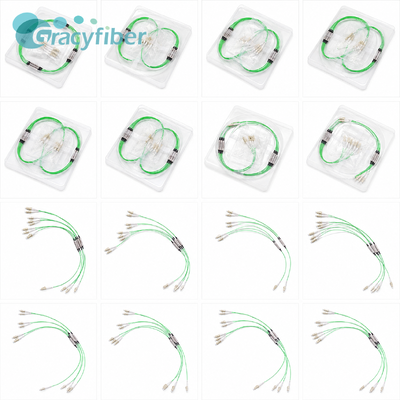

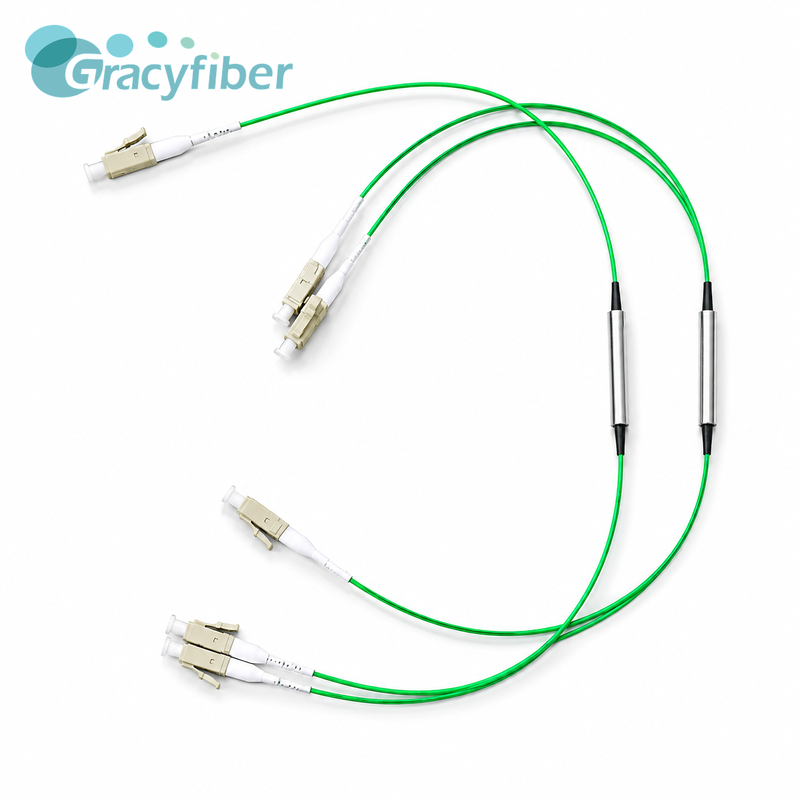

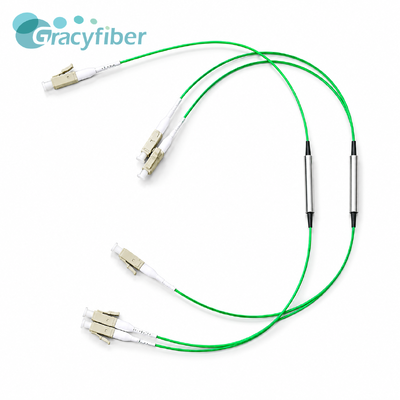

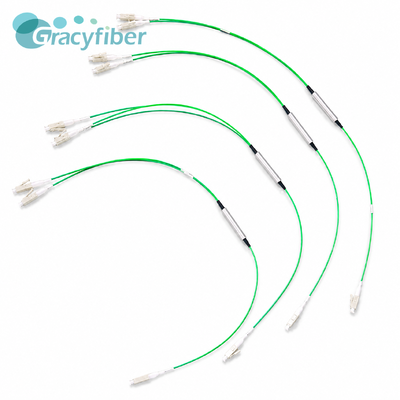

This 1*2 Tap WDM MM is an optical power distribution and monitoring device designed for multimode fiber optic systems.
| Parameters | T30R70 |
|---|---|
| Operating Wavelength (nm) | 850–950(LED light source) |
| Transmission Insertion (dB) | 6.1 |
| Reflection Insertion (dB) | 2.2 |
| Fiber Type | Corning OM5 of Green 0.9 mm loose tube |
| PDL (dB) | ≤0.2 |
| RL (dB) | ≥20 |
| Directivity (dB) | ≥25 |
| Maximum Optical Power (mW) | 300 |
| Fiber Length (cm) | 18–22(Including Connector) |
| Operating Temperature (°C) | -5–75 |
| Storage Temperature (°C) | -40–85 |
| Package Dimension (mm)(Φ*L) | 5.5 * 38 |
| Connector | LC/UPC(MM) |
1*2 Multimode Tap WDM Structure
Operating Wavelength Range: 850~950nm
T30 Splitting Ratio
Transmission Insertion Loss: ≤6.1dB
Reflection Insertion Loss: ≤2.2dB
Return Loss: ≥20dB
Directivity: ≥25dB
PDL: ≤0.2dB
Maximum Handling Optical Power: 300mW
Uses Corning OM5 Multimode Fiber
0.9mm Green Loose Tube
LC/UPC Multimode Connector
Compact Package: Φ5.5*38mm
