Home > Products >
Optical Fiber Array
>
1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL <0.3dB, FC/APC
All Category

Polarization Maintaining

Fiber Collimator

Fiber Optic Coupler

PBS/PBC

Optical Isolator

Optical Circulator

CWDM Multiplexer

DWDM Multiplexer

Variable Optical Attenuator

PM Patch Cord

MPO Patch Cord

Optical Polarizer

WDM & Optical Filtering

DWDM Mux Demux

WDM Filter

FWDM

UCWDM

O-Band WDM

Reflective WDM (High ISO)

Optical Fiber Array

PM Fiber Array

Mode Field Diameter Fiber Array

Lensed Fiber Array

2D Fiber Array

Custom Fiber Array

Network Visibility

Photonic Integration

High Density Optical Connectivity

Fiber Optic Components
Contact Us
Ms. Joyce
info@gracyfiber.com
+86 19940976052
wechat
Joyce20000817
Chat Now

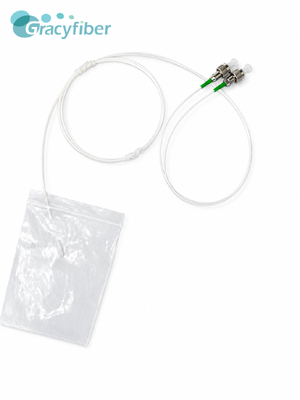

1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL <0.3dB, FC/APC

1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL <0.3dB, FC/APC

Detail Information
Product Description
Detail Information
Channel Spacing:
127μm
Polishing Angle:
8°
Insertion Loss:
≤0.3dB
Fiber Type:
SMF-28e
Fiber Tube:
0.9mm
Connector Type:
FC/APC
Highlight:

1CH SM Fiber Array quartz glass

,

127μm pitch fiber array FC/APC

,

Corning SMF-28e fiber array low IL

Product Description
1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL <0.3dB, FC/APC
1. Product Overview

This high-precision single-channel single-mode fiber optic array (1CH SMFA) utilizes a premium quartz glass substrate and is specifically designed for high-density optical interconnects and silicon photonics chip coupling.

2. Product Features
Parameters Unit Spec. Value
Channel / 1 OK
Material / Quartz Glass OK
Channel Spacing μm 127 OK
Polishing Angle Degree A8° OK
Package(L)X(W)X(H) mm 2.5*2.5*7.9 OK
Insertion Loss dB ≤0.3 　
　
　
　
Fiber Type / SMF-28e OK
Fiber Tube mm 0.9 OK
Tube Color / White OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • Superior optical performance
  • Industry-leading wiring
  • Ultra-compact quartz packaging
  • High-precision end-face processing
  • High-reliability terminal protection

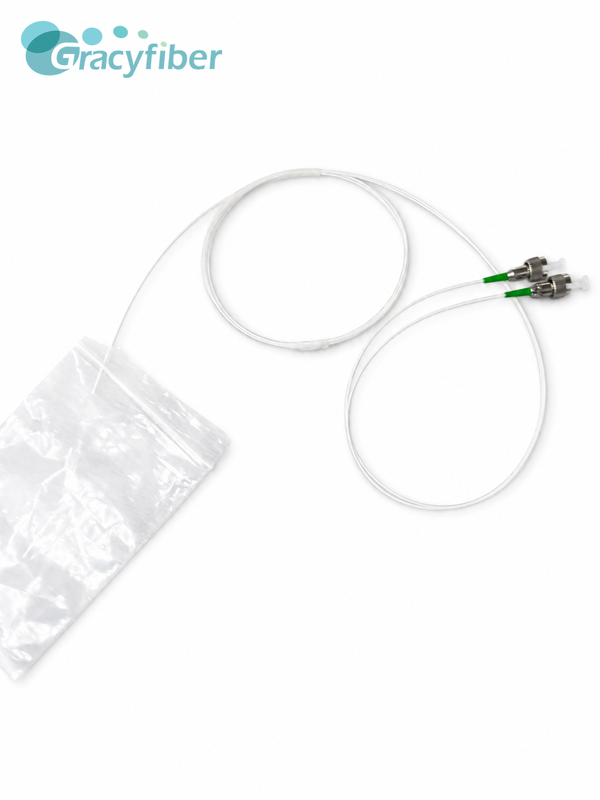

1CH SM Fiber Array | Quartz Glass, 127μm Pitch, 8° Angled Polish | Corning SMF-28e, 0.9mm Tube | Low IL <0.3dB, FC/APC 0

3. Applications
  • High-Speed ​​Optical Transceiver Packaging
  • Silicon Photonics Chip Coupling
  • Miniature Optical Passive/Active Devices Integration
  • Coherent Optical Communication Systems
  • High-Precision Optical Fiber Sensing Systems
