GRACYFIBER · PRODUCT SOLUTIONS

4CH Fiber Array Assemblies | Custom 4-Channel Single Mode Fiber Arrays

Custom 4CH Fiber Array 4 Channel SMFA 127um 250um Fiber Pitch 0 Degree 41 Degree Polishing SMF-28e G657A1 Hi780 FC/APC Precision Optical Fiber Alignment Assembly

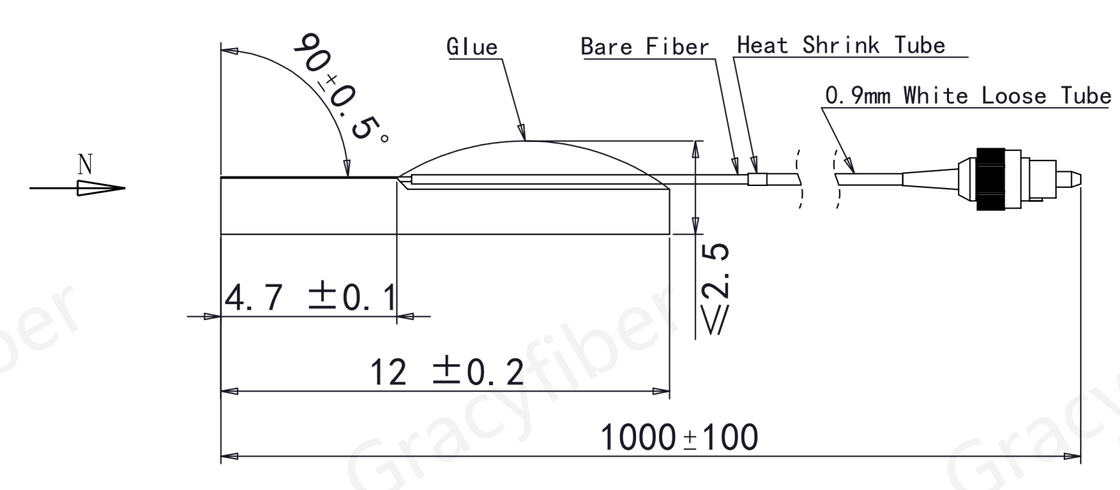

4-Channel SMFA, 0°/250µm pitch, SMF-28 Ultra (G657.A1) fiber, FC/APC connectors, no lid, 100±10 cm total length (including connectors), 0.9 mm white loose tube, FA dimensions 12×6×1.5 mm, IL < 0.3 dB, ER > 18 dB; product mounted on A4 white cardboard, secured with adhesive tape, and enclosed in an A4 plastic bag.

PRODUCT · 01

4-Channel SMFA, 0°/250µm pitch, SMF-28 Ultra (G657.A1) fiber, FC/APC connectors, no lid, 100±10 cm total length (including connectors), 0.9 mm white loose tube, FA dimensions 12×6×1.5 mm, IL < 0.3 dB, ER > 18 dB; product mounted on A4 white cardboard, secured with adhesive tape, and enclosed in an A4 plastic bag.

PN

910001704-10

Unit

USD

Estimated Price

15.800

4CH Fiber Array Assemblies | Custom 4-Channel Single Mode Fiber Arrays

4-Channel SMFA, 0° angle, SMF-28e ribbonized fiber, 127µm pitch, FC/APC connector, 1000 ± 100 mm total length (including connectors), 0.9 mm white loose tube, FA dimensions 10 x 2.5 x 1.5 mm, IL < 0.3 dB; product secured with adhesive tape onto a sheet of white A4 cardboard and packaged in an A4 plastic bag. P/N: FLFA-1041123101

PRODUCT · 02

4-Channel SMFA, 0° angle, SMF-28e ribbonized fiber, 127µm pitch, FC/APC connector, 1000 ± 100 mm total length (including connectors), 0.9 mm white loose tube, FA dimensions 10 x 2.5 x 1.5 mm, IL < 0.3 dB; product secured with adhesive tape onto a sheet of white A4 cardboard and packaged in an A4 plastic bag. P/N: FLFA-1041123101

PN

910001704-08

Unit

USD

Estimated Price

14.300

4CH Fiber Array Assemblies | Custom 4-Channel Single Mode Fiber Arrays

PRODUCT · 03

4-Channel SMFA, 0° angle, SMF-28e ribbonized fiber, 127µm pitch, FC/APC connector, 1000 ± 100 mm total length (including connectors), 0.9 mm white loose tube, FA dimensions 10 x 2.5 x 1.5 mm, IL < 0.3 dB; product secured with adhesive tape onto a sheet of white A4 cardboard and then enclosed in an A4 plastic bag.

PN

910001704-08

Unit

USD

Estimated Price

11.500

4CH Fiber Array Assemblies | Custom 4-Channel Single Mode Fiber Arrays

4-channel SMFA, 0°, 127µm pitch, Corning SMF-28e fiber, FC-APC connectors, 100±10 cm total length (including connectors), 0.9 mm white loose tube, FA dimensions 10 x 2.5 x 1.5 mm, IL < 0.3 dB; product mounted on A4 white cardboard and secured with adhesive tape, then enclosed in an A5 plastic bag.

PRODUCT · 04

4-channel SMFA, 0°, 127µm pitch, Corning SMF-28e fiber, FC-APC connectors, 100±10 cm total length (including connectors), 0.9 mm white loose tube, FA dimensions 10 x 2.5 x 1.5 mm, IL < 0.3 dB; product mounted on A4 white cardboard and secured with adhesive tape, then enclosed in an A5 plastic bag.

PN

910001704-14

Unit

USD

Estimated Price

11.500

4CH Fiber Array Assemblies | Custom 4-Channel Single Mode Fiber Arrays

4-Channel SMFA, 0°, 127µm pitch, Corning Hi780 fiber, FC-APC connectors, 100±10cm total length (including connectors), 0.9mm white loose tube, FA dimensions 10×2.5×1.5mm, IL < 0.3 dB; product placed on A4 white cardboard, secured with self-adhesive tape, and then enclosed in an A4 plastic bag.

PRODUCT · 05

4-Channel SMFA, 0°, 127µm pitch, Corning Hi780 fiber, FC-APC connectors, 100±10cm total length (including connectors), 0.9mm white loose tube, FA dimensions 10×2.5×1.5mm, IL < 0.3 dB; product placed on A4 white cardboard, secured with self-adhesive tape, and then enclosed in an A4 plastic bag.

PN

910001704-15

Unit

USD

Estimated Price

48.300

4CH Fiber Array Assemblies | Custom 4-Channel Single Mode Fiber Arrays

4-channel SMFA, 41° angle, SMF-28e fiber, 250µm pitch, FC/APC connector, total length 1000 ± 100 mm (including connector), no loose tube, FA dimensions 12 × 1.5 × 1.5 mm, IL < 0.3 dB; product placed on A4 white cardboard, secured with self-adhesive tape, and then enclosed in an A4 plastic bag.

PRODUCT · 06

4-channel SMFA, 41° angle, SMF-28e fiber, 250µm pitch, FC/APC connector, total length 1000 ± 100 mm (including connector), no loose tube, FA dimensions 12 × 1.5 × 1.5 mm, IL < 0.3 dB; product placed on A4 white cardboard, secured with self-adhesive tape, and then enclosed in an A4 plastic bag.

PN

910001704-17

Unit

USD

Estimated Price

50.600
