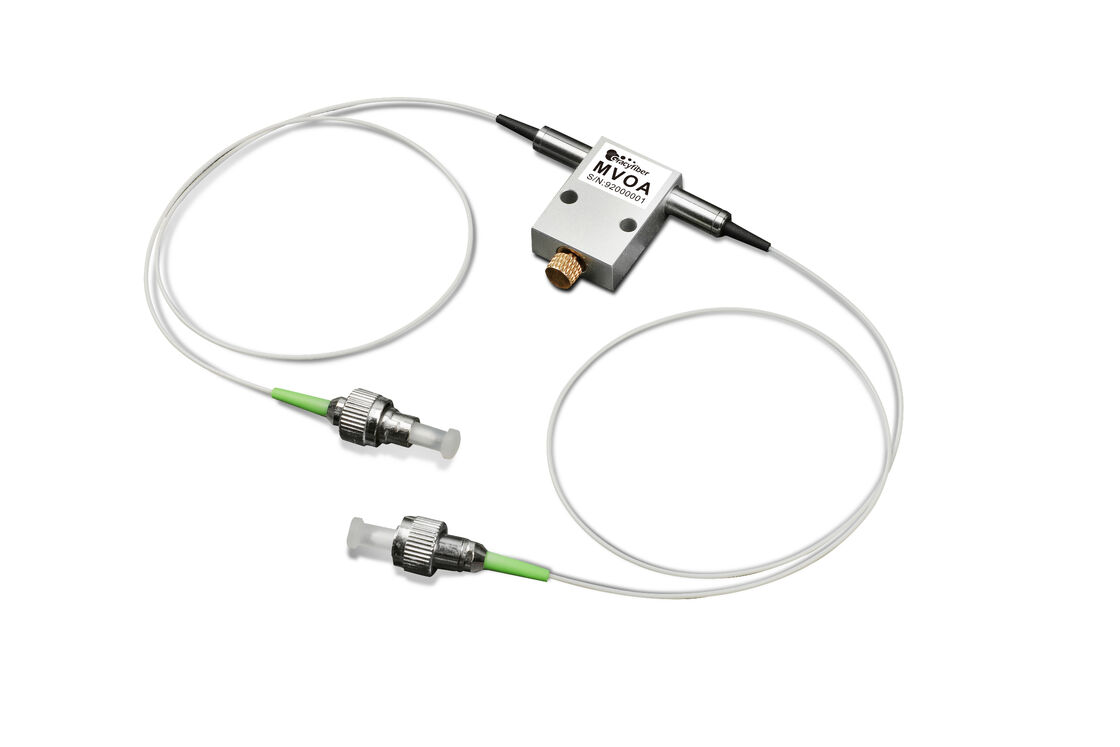

Polarization Maintaining MVOA

Polarization Maintaining MVOA

Detail Information
Product Description
Detail Information
Document:
A-Polarization Maintaining ...OA.pdf
Operating Wavelengths:
980nm, 1060nm, 1310nm, 1550nm
Attenuation Range:
0.6 DB To 60 DB
Adjustment Precision:
0.02 DB
Extinction Ratio:
≥20 DB (up To 22 DB)
Power Handling:
800 Mw
Dimensions:
26 X 18 X 8 Mm
Highlight:

Polarization Maintaining MVOA

,

Polarization Maintaining optical attenuator

,

MVOA with polarization maintenance

Product Description

1.  Features

ü  Low Original Loss

ü  High Extinction Ratio

ü  Wide Attenuation Range

ü  High Reliability and Stability







2.  Applications

ü  Optical Passive Component Test

ü  Optics Lab Use and Research

ü  Fiber Communication System Test







3.  Compliance

ü  Telcordia GR-1209-CORE

ü  Telcordia GR-1221-CORE

ü  RoHS




4.Mechanical Dimensions

Polarization Maintaining MVOA 0


5.Ordering Information

Polarization Maintaining MVOA 1
