| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

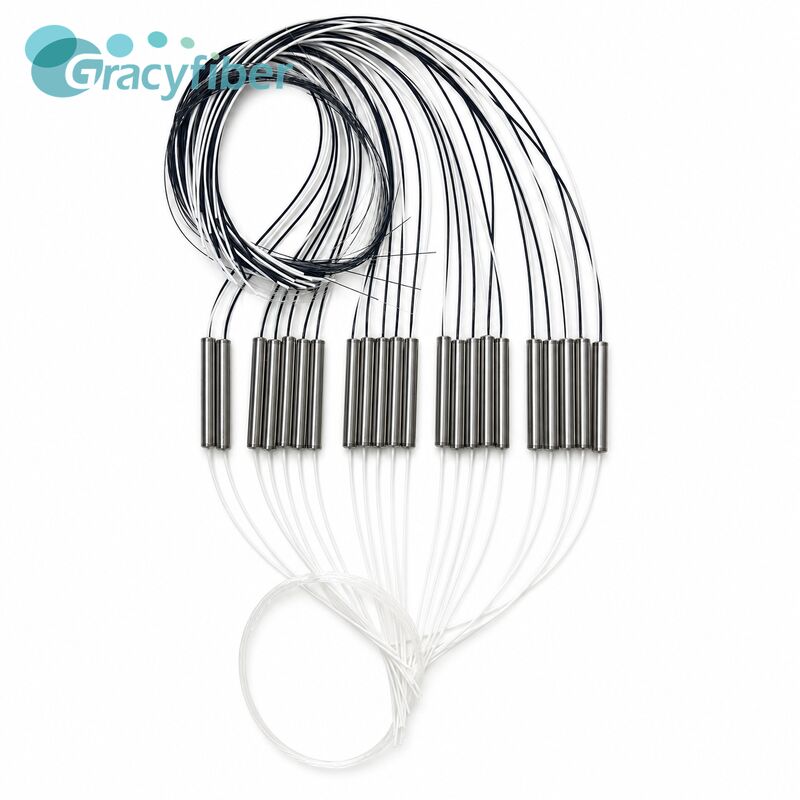

PM Coupler (Polarization Maintaining Fiber Coupler) 1x2 2x2 1310/1550nm 780/980/1064nm PM Panda Fiber For Fiber Laser, Optical Instrument And PM Fiber System
This PM Coupler is a high-stability fiber coupler suitable for polarization-maintaining fiber systems. It supports 1x2 and 2x2 configurations and operates at wavelengths of 1310nm, 1550nm, 780nm, 980nm, and 1064nm. Utilizing PM Panda Fiber, it features excellent polarization-maintaining performance, low insertion loss, and stable splitting capability, meeting the needs of applications such as optical path distribution, signal coupling, and power monitoring. The 1310/1550nm band bandwidth is ±30nm, and the 780/980/1064nm band bandwidth is ±15nm, making it suitable for communication, laser, test, and sensing systems. The product supports various splitting ratios, P/A ratings, package sizes, and FC/APC, FC/UPC, or custom connectors. Pigtail options include 250μm bare fiber or 900μm blue loose tubing, suitable for experimental equipment, industrial modules, and OEM applications.
| Unit | Value | ||||
|---|---|---|---|---|---|
| - | 1x2; 2x2; | ||||
| nm | 1310,1550 | 780, 980,1064 | |||
| nm | ±30 | ±15 | |||
| - | P | A | P | A | |
| Max | dB | 0.6 | 0.8 | 0.6 | 0.8 |
| Min | dB | 20 | 18 | 20 | 18 |
| Min | dB | 55 | |||
| Min | dB | 50 | |||
| Max | W | 0.5, 1, 3, 5 | |||
| - | PM Panda Fibe( 780/ 980/1300/1550) | ||||
| µm | 250 µm / 900 µm Blue loose tube | ||||
| cm | 100 | ||||
| - | FC/APC,FC/UPC,or Customized | ||||

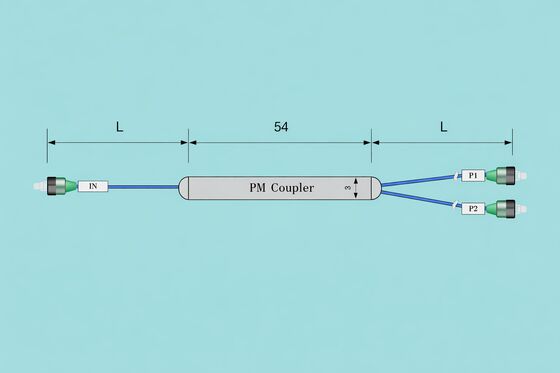

| mm | φ3.0×45,φ5.5×35 | ||||
| mm | φ3.0×54,φ5.5×38 | ||||
| mm | 90×20×10,100×80×10 | ||||
| °C | -5~65 | ||||
| °C | -40~85 | ||||
| Unit | Insertion loss | ||||
| GradeP | GradeA | GradeP | GradeA | ||
| dB | ≤3.6 | ≤3.8 | ≤3.8 | ≤4.0 | |
| dB | ≤7.8/1.6 | ≤8.2/1.7 | ≤8.2/1.7 | ≤8.4/1.9 | |
| dB | ≤11.4/0.86 | ≤11.8/1.0 | ≤11.8/1.4 | ≤12.0/1.6 | |
| dB | ≤14.4/0.8 | ≤14.9/0.9 | ≤15.0/0.9 | ≤15.2/1.0 | |
| dB | ≤21.7/0.4 | ≤22.2/0.6 | ≤22.2/0.7 | ≤22.5/0.8 | |
| Coupler | - | 1 | 2 | 4 | 5 | 6 | 7 | 8 | 9 | - | 10 | 11 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Technology | Working Wavelength |
Split Ratio | Package Dimension | Fiber Type |
Jacket Type | Jacket Color | Fiber Length |
- | Connector Type | Working Axis |
|
| - | XXX | XX | X | XX | XXX | XX | XX | XX | - | X | X | |
| PMCOU | FBT=Fused Biconical Taper | 78= 780nm | 50=50/50 | 33=Ø3.0 ×30 | P78=PM780 | 02=250um Bare fiber | W0=White | 01=0.1m | 0=No | B=Dual Axis | ||
| TFF=Thin Film Filter | 98=980nm | 40=40/60 | 34=Ø3.0 × 45 | P98=PM980 | 06=0.6mm Loose Tube | B0=Blue | 05=0.5m | 1=FC/UPC | S=Slow Axis | |||
| PLC=Planar Lightwave Circuit | 10=1060nm | 20=20/80 | 35=Ø3.0 × 54 | P13=PM1300 | 09=0.9mm Loose Tube | B1=Black | 10=1.0m | 2=FC/APC | F=Fast Axis | |||
| XXX= Customized | 13=1310nm | 05=5/95 | 54=Ø5.5 × 38 | P15=PM1550 | 20=2.0mm PVC Tube | R0=Red | 30=3.0m | 3=SC/UPC | X= Customized | |||
| 15=1550nm | 02=2/98 | 90=90 × 20× 10 | XXX= Customized | 30=2.0mm PVC Tube | Y0=Yellow | XX= Customized | 4=SC/APC | |||||
| XX= Customized | 01=1/99 | PS=100 ×80× 10 | XX= Customized | XX= Customized | 5=LC/UPC | |||||||
| XX= Customized | 6=LC/APC | |||||||||||
| X= Customized |
Example Part Number
PMCOU-FBT135035P1309B010-2S
PM Fiber FBT Coupler,center wavelength 1310 nm,Split Ratio 50/50,Steel housing Ø3.0 × 54, fiber is PM 1300,
Fiber length 1 m with 0.9mm Blue Losse Tube,FC/APC connector, slow axis aligned to key.
