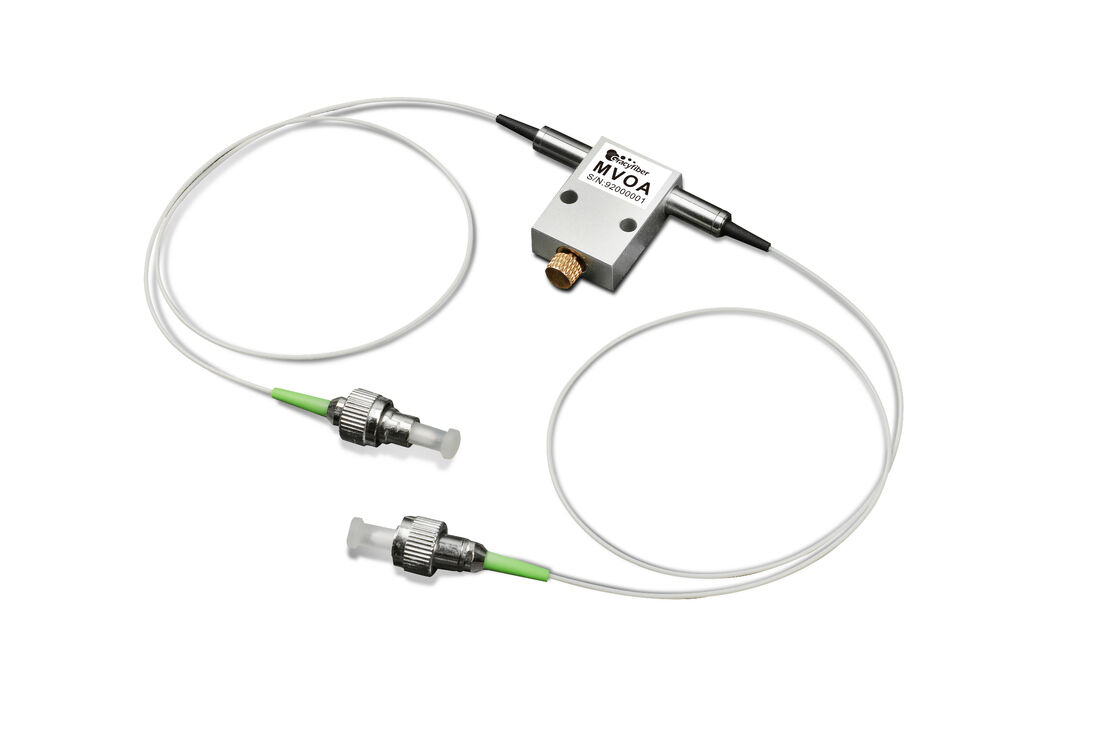

Name: PM MVOA（Polarization Maintaining Micro-Opto-Electro-Mechanical Systems Variable Optical Attenuator)
Brand: Shenzhen Gracyfiber Technology Co., Ltd.
Availability: InStock

Detail Information

Product Description

Detail Information

Document:

A-Polarization Maintaining ...OA.pdf

Operating Wavelengths:

980nm, 1060nm, 1310nm, 1550nm

Attenuation Range:

0.6 DB To 60 DB

Adjustment Precision:

0.02 DB

Extinction Ratio:

≥20 DB (up To 22 DB)

Power Handling:

800 Mw

Dimensions:

26 X 18 X 8 Mm

Highlight:

Polarization maintaining variable optical attenuator

PM MOEMS VOA attenuator

Micro-opto-electro-mechanical systems attenuator

Product Description

1. Features

Features low original loss combined with a wide attenuation range for flexible optical control.
Delivers a high extinction ratio to ensure superior polarization maintenance.
Engineered for high reliability and stability in demanding network and lab environments.
Fully compliant with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, and RoHS industry standards.

2. Applications

Precision testing and qualification of optical passive components.
Advanced optics laboratory research and development.
Comprehensive fiber communication system testing and integration.

3. Specifications

Operating Wavelengths: Configurable for 980nm, 1060nm, 1310nm, and 1550nm center wavelengths.
Attenuation Range: Broad dynamic range from 0.6 dB to 60 dB with an adjustment precision of 0.02 dB.
Optical Performance: Typical extinction ratio ≥20 dB (up to 22 dB) and high return loss ≥50 dB.
Power Handling: Robust design supporting maximum optical power up to 800 mw.
Mechanical Dimensions: Compact package size measuring 26 x 18 x 8 mm.
