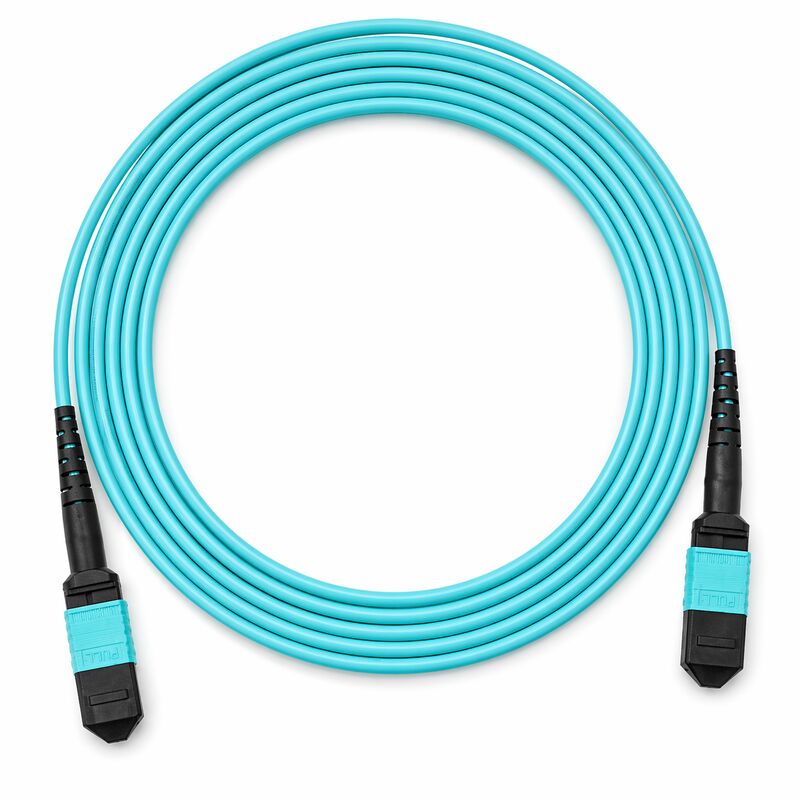

PM13 MT/APC-MT/APC 8-core polarization protection jumper product

PM13 MT/APC-MT/APC 8-core polarization protection jumper product

Brand Name: Gracyfiber
MOQ: 1pieces
Payment Terms: L/C, T/T
Supply Ability: 100,000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong , China
Certification:
ISO9001 , ROHS
Fiber Type:
Corning PM13-U25D
Operating Wavelength:
1310nm
Extinction Ratio:
≥25dB
Alignment Design:
K-key Fast Axis
Angle Control Accuracy:
±3°
Ferrule Type:
12-core Pinless
Supply Ability:
100,000 pieces per month
Highlight:

PM13 polarization maintaining jumper

,

8-core polarization protection cable

,

MT/APC fiber optic jumper

Product Description
PM13 MT/APC-MT/APC 8-core polarization protection jumper product
1. Product Introduction

Both products utilize Corning PM13-U25D polarization-maintaining fiber and have been optically optimized for the 1310nm test wavelength. Both patch cords are equipped with Senko low-loss connectors, offering excellent extinction ratio (ER≥25dB), and their end-face appearance meets our factory's Class A high standards.

2. Product Features
  • Corning PM13-U25D polarization-maintaining fiber is used.
  • The tested operating wavelength is 1310nm.
  • High extinction ratio performance: ER ≥ 25dB.
  • Low insertion loss
  • Fast axis alignment with the K-key design, and operates in fast axis mode.
  • The angle control accuracy between the panda eye and the glue port/key position is ±3°.
  • The MT type uses a 12-core Senko low-loss pinless ferrule; the MPO type uses a Senko low-loss pin connector.
