LiNbO3 MIOC Y-Waveguide Integrated Optical Devices For FOG / FOCS

LiNbO₃ MIOC Y-Waveguide Manufacturer | Integrated Optical Device for FOG & FOCS | Gracyfiber

1. Product Overview

  Gracyfiber LiNbO₃ MIOC (Y-Waveguide) is a compact and high-stability integrated optical device designed for precision sensing and electro-optic modulation applications.

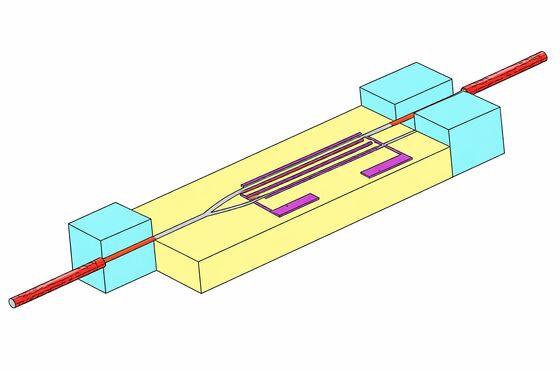

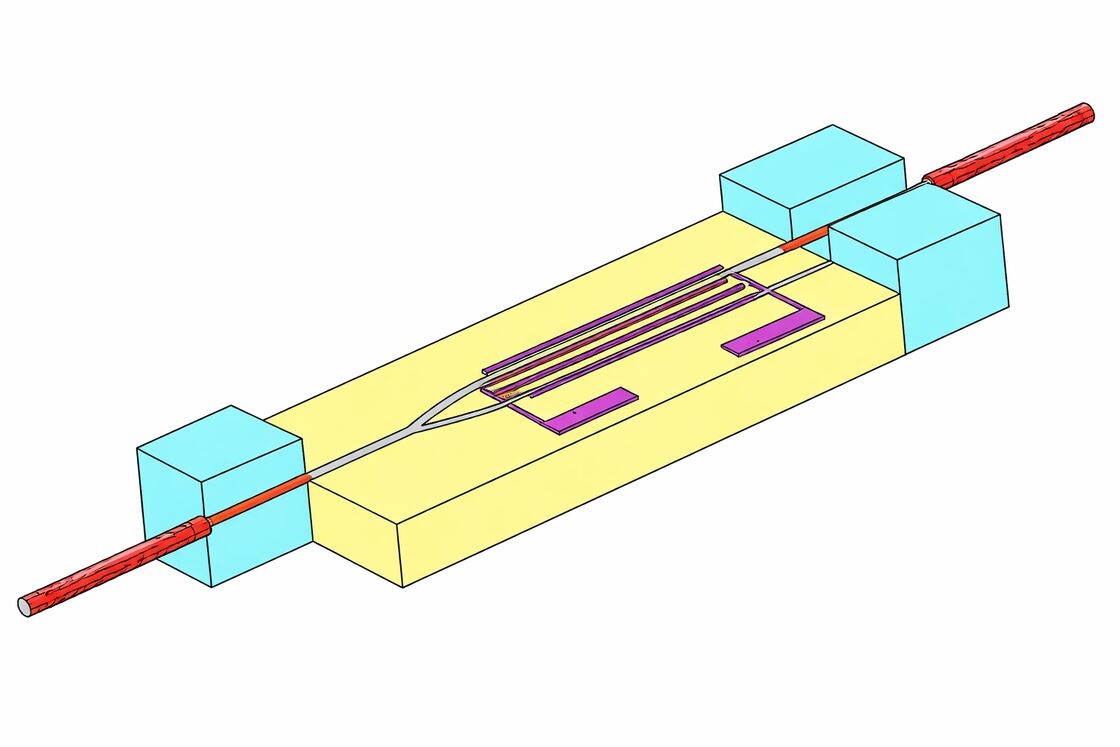

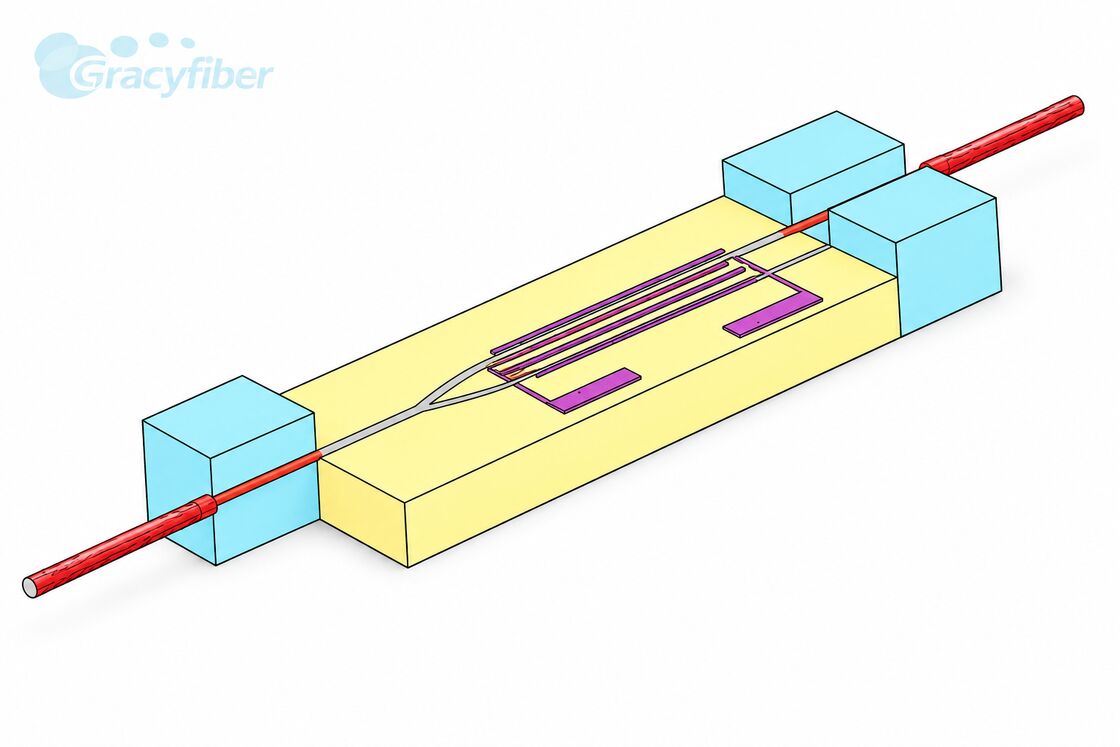

Fabricated on optical-grade lithium niobate wafers using microelectronic processing, the device integrates waveguides and electrodes on a single chip platform. Input and output fibers are precision angle-coupled to the waveguide, and the chip is packaged in a gold-plated Kovar housing for reliable long-term use. The device can perform polarization, beam splitting/combining, and phase modulation functions, making it suitable for fiber optic gyroscopes, fiber optic current sensors, hydrophones, and other fiber sensing systems.

• Integrated Optical Functionality – Combines polarization control, beam splitting/combining, and phase modulation in one compact device to simplify system design.
• Low-Loss X-Cut Y-Propagation LiNbO₃ Waveguide – Helps reduce optical loss and improve signal efficiency in precision sensing applications.
• Single-Polarization Operation – Built with annealed proton exchange technology to deliver high chip polarization extinction ratio for better signal quality.
• Push-Pull Electrode Design – Reduces half-wave voltage and supports easier electrical driving in integrated electro-optic systems.
• Stable Optical Performance – Offers controlled insertion loss, back reflection, and intensity modulation for improved measurement consistency.
• 1310 nm and 1550 nm Options – Supports common wavelength platforms used in sensing and optical system development.
• Wide Environmental Range – Designed for dependable operation in demanding temperature conditions.
• PM or SM Fiber Options – Supports flexible integration into different optical architectures.

• Fiber optic gyroscope (FOG)
• Fiber optic current sensor (FOCS)
• Hydrophones
• Fiber sensing systems
• Precision electro-optic modules
