| Brand Name: | Gracyfiber |
| MOQ: | 1pieces |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |

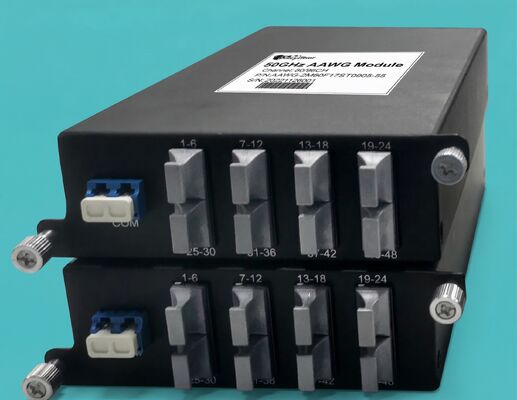

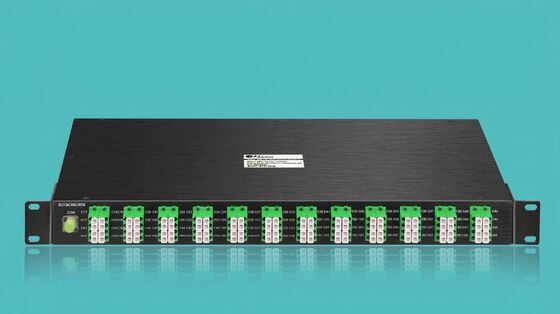

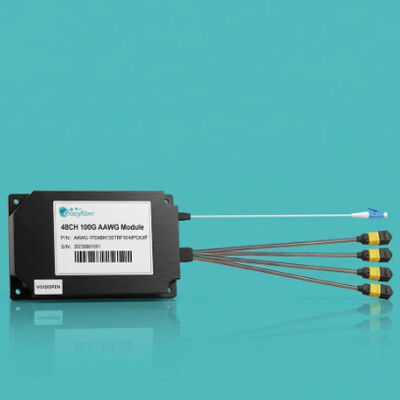

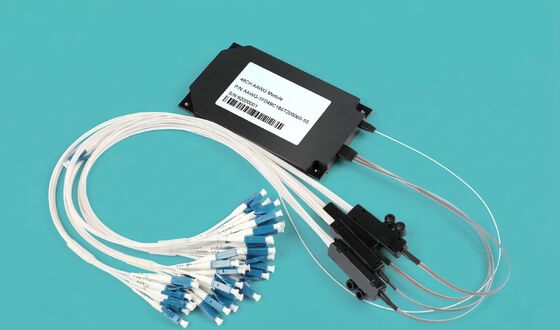

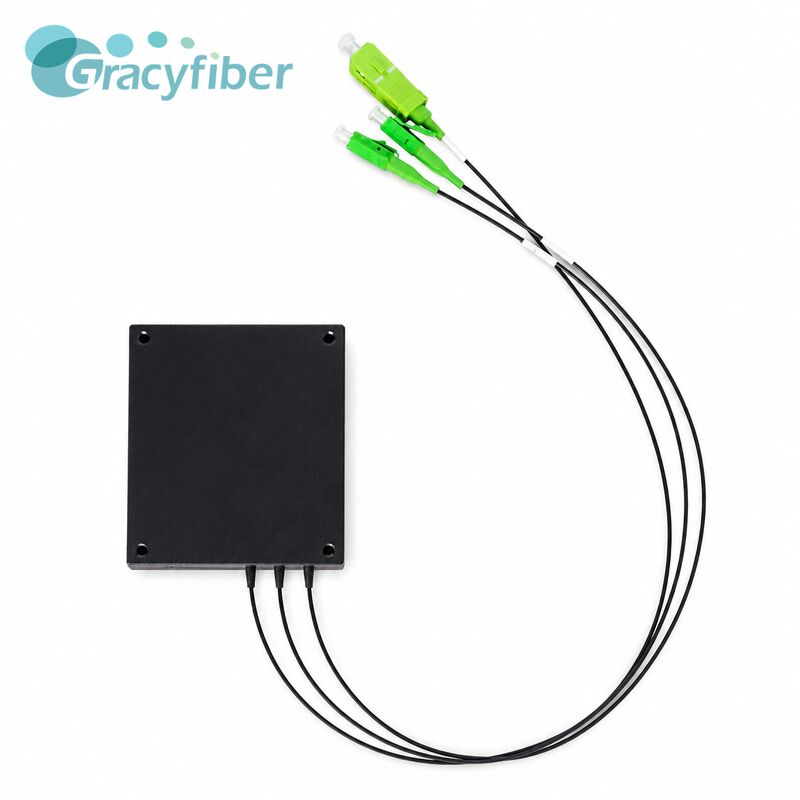

High-Capacity, Heatless Arrayed Waveguide Gratings (AAWG DWDM Multiplexer) - 32 To 96 Channels
GRACYFIBER's Aseptic Arrayed Waveguide Grating (AAWG) DWDM module is a high-density, purely passive optical wavelength division multiplexing solution designed to push the capacity limits of existing fiber optic networks.
| Parameter | Unit | Value | ||||
| Operating Wavelength | nm | 1525~1565 | ||||
| Special Port | nm | Monitor,1310 (1260~1360) | ||||
| Center Wavelength | nm | ITU Grid(C13 ~C64) or Customized | ||||
| Channel Port | nm | 32,40 | 32,40,44,48,60 | 80,88,96 | ||
| Channel Spacing | nm | 150GHz (1.2nm) | 100GHz (0.8nm) | 50GHz(0.4nm) | ||
| Channel Passband | Min | nm | ±0.11 | ±0.11 | ±0.05 | |
| Technology | - | Flat-top | Flat-top | Gaussian | Flat-top | |
| Pass band @1dB | Min | nm | 0.92 | 0.38 | 0.2 | 0.2 |
| Pass band @3B | Min | nm | 1.2 | 0.58 | 0.4 | 0.26 |
| Port Insertion Loss | Max | dB | 5.5 | 5.5 | 3.8 | 6.0 |
| Isolation | Adjacent | dB | ≥11 | ≥25 | ≥27 | ≥25 |
| Non-adjacent | dB | ≥23 | ≥29 | ≥30 | ≥29 | |
| 1310 Port | Max | dB | 1.0 | 1.0 | 1.0 | 1.0 |
| Uniformity | Max | dB | 1.5 | 1.5 | 1.5 | 1.5 |
| Ripple | Max | dB | 0.5 | 0.5 | 1.5 | 0.5 |
| PDL | Max | dB | 0.5 | |||
| Return Loss | Min | dB | 40 | |||
| Directivity | Min | dB | 50 | |||
| Power Handing | Max | mW | 300 | |||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | ||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | ||||
| Fiber to fan-out Length | mm | 500 | ||||
| Fan-out to Conector Length | mm | 500 | ||||
| Connector | - | LC/UPC or Customized | ||||
| Dimensions (HxWxD) | mm | 120x70x11,482x250x44, 482x230x44 | ||||
| Operating Temperature | °C | -5~65 | ||||
| Storage Temperature | °C | -40~85 | ||||
1: What are the warranty policy and after-sales support details?
A: This product is ISO9001 and RoHS certified. Before shipment, tests can be conducted to confirm the center wavelength, insertion loss, channel isolation, channel uniformity, PDL, return loss, end-face quality, and appearance. If the product has non-human-caused quality issues within the warranty period, we can provide parameter retesting, cause analysis, repair, or replacement support. Specific warranty periods, RMA procedures, and scope of responsibility are subject to the formal quotation or purchase contract.
