1. Product Title

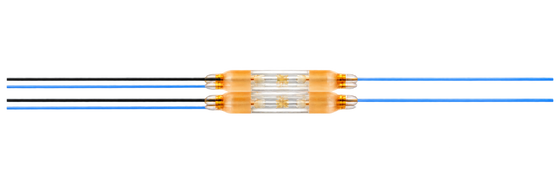

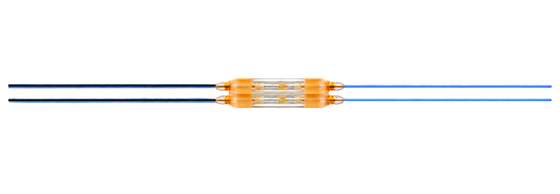

TAP & Isolator Hybrid Device – 1×2 Optical Tap with Ultra-Wideband Isolator

2. Product Overview

GracyFiber TAP & Isolator Hybrid Device integrates a 1×2 optical tap with a directional ultra-wideband optical isolator in a single passive component. It is designed to provide non-intrusive optical signal monitoring while suppressing back-reflections from the tap port, helping maintain signal integrity in reflection-sensitive fiber systems.

3. Key Features

• Integrated 1×2 optical tap + directional optical isolator
• Non-intrusive optical signal monitoring
• Suppression of back-reflections from the tap port
• Directional ultra-wideband isolation
• Flexible optical tap ratio options
• Low insertion loss
• Low polarization-dependent loss (PDL)
• Wide operating wavelength range
• Passive optical design
• Robust construction

These functions and characteristics are explicitly identified in the supplied product documentation.

4. Applications

• DWDM Optical Transmission Systems
• Coherent Optical Transmission
• Optical Amplifiers
• High-Power Laser Systems
• Optical Test & Measurement
• Optical Monitoring Systems
• Data Center & Telecom Infrastructure
• Reflection-Sensitive Optical Networks

5. FAQ

What is a TAP & Isolator Hybrid Device?

It is a passive optical component that combines an optical tap and an optical isolator in one device. The GracyFiber version integrates a 1×2 optical tap with a directional ultra-wideband isolator to provide signal monitoring while reducing back-reflections from the monitoring path.

What is the purpose of the optical tap?

The optical tap extracts a defined portion of the optical power for monitoring while the main optical signal continues through the primary transmission path.

The supplied spreadsheet lists several tap ratios, but their applicability to this exact hybrid-device configuration should be confirmed before publication.

Why is an isolator integrated with the tap?

The isolator is used to suppress backward-propagating reflections from the tap or monitoring path. This is particularly relevant in systems where reflected optical power can affect signal integrity or system stability.

Which tap ratios are available?

The supplied spreadsheet contains the following ratio pairs:

• 5% / 95%
• 20% / 80%
• 30% / 70%
• 40% / 60%
• 50% / 50%

What wavelength range is available?

The Word document confirms a wide operating wavelength range but does not provide numerical limits.

The accompanying spreadsheet lists 1260–1650 nm for single-mode and 850 ±50 nm for multimode, but this requires confirmation because other spreadsheet fields appear inconsistent with the 1×2 TAP & Isolator description.

6. Technical Specifications

Confirmed Product Specifications

The confirmed characteristics above are supported by the supplied product description and feature list.

Supplementary XLSX Data — Requires Verification

The accompanying Excel file contains the following values:

These specifications do not align cleanly with the Word document's 1×2 TAP & Isolator Hybrid Device description, especially the 32CH/64CH and MPO/MTP entries. I therefore recommend not publishing this table as the final product specification until the source is verified.

7. Configuration & Customization Options

Tap Ratio

The product documentation confirms flexible split-ratio options.

The XLSX lists:

• 5% / 95%
• 20% / 80%
• 30% / 70%
• 40% / 60%
• 50% / 50%

8. Detailed Product Description

The GracyFiber TAP & Isolator Hybrid Device combines two passive optical functions within one component: optical power tapping and directional optical isolation.

The integrated 1×2 optical tap extracts a controlled portion of the transmitted optical power so that the signal can be monitored without interrupting the primary optical path. This type of monitoring function is useful in optical transmission, amplifier, test, and network-monitoring architectures where optical power or signal condition must be observed during system operation.

At the same time, the integrated directional optical isolator is designed to reduce backward-propagating reflections originating from the tap or monitoring path. The source documentation specifically describes this combination as enabling non-intrusive signal monitoring while suppressing back-reflections from the tap port.

Integrating the tap and isolator into a hybrid device can reduce the need to implement the two optical functions as separate components within the optical path. The product is described as passive and robust, with flexible tap-ratio options, low insertion loss, low PDL, and wide wavelength operation.

These characteristics are relevant to systems in which both optical monitoring and reflection management are required. Documented applications include DWDM and coherent transmission, optical amplifiers, high-power laser systems, test and measurement equipment, telecom infrastructure, and reflection-sensitive optical networks.

Because the accompanying spreadsheet contains specifications that appear to describe a different multi-channel TAP architecture, numerical wavelength, isolation, connector, and package specifications should be confirmed before being permanently associated with this hybrid device.

9. Application Scenario

Application 1 — DWDM & Coherent Optical Transmission

DWDM and coherent optical links may require continuous optical monitoring while minimizing unwanted reflections in the transmission path.

The integrated tap extracts a portion of the signal for monitoring, while the isolator suppresses backward optical propagation from the tap branch.

DWDM and coherent transmission are explicitly listed as applications for this device.

Application 2 — Optical Amplifier Systems

Optical amplifier systems can be sensitive to reflected optical signals.

The TAP & Isolator Hybrid Device allows optical power to be monitored while providing directional isolation between the monitoring branch and the main optical path.

Optical amplifiers and high-power laser systems are specifically included in the supplied application list.

Application 3 — Test & Monitoring Platforms

Test and monitoring systems may need a small portion of the transmitted signal without disrupting the primary optical path.

The integrated optical tap provides the monitoring signal, while the isolator helps prevent the connected monitoring equipment from introducing unwanted reflections back into the system.

10. Why GracyFiber

GracyFiber provides passive optical components for wavelength management, signal monitoring, polarization control, and optical interconnection.

Relevant product capabilities include:

• Optical TAP Components
• TAP & Isolator Hybrid Devices
• Optical Isolators
• Optical Circulators
• PM Optical Components
• WDM / CWDM / DWDM
• AAWG
• Fiber Couplers
• Fiber Arrays / FAUs
• MPO/MTP Optical Interconnects

For this hybrid device, the supplied documentation specifically combines optical monitoring and back-reflection suppression in a single passive optical component.

11. Related Products

12. Call to Action

Need an integrated optical monitoring and isolation solution?

Send GracyFiber your required:

• Operating wavelength
• Tap ratio
• Main-path insertion loss
• Tap-port insertion loss
• Required isolation
• Return loss
• PDL
• Fiber type
• Optical power
• Fiber length
• Connector type
• Package dimensions
• Application
