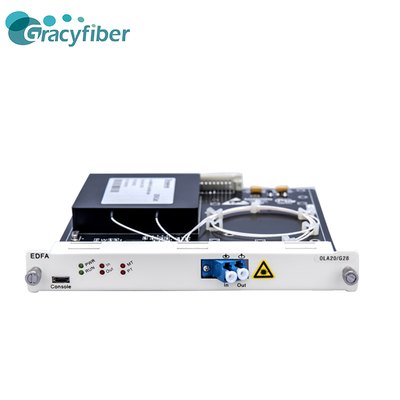

40CH DWDM EDFA C-Band Optical Transmission System 1545-1565nm 40dBm Fiber Amplifier Mux Demux 1+1 OLP OSC Monitoring SC/APC LC/APC
Gracyfiber adopts wavelength division multiplexing (WDM) technology, which greatly improves the transmission capacity of the system. In recent years, wavelength division multiplexing plus erbium-doped fiber amplifier (WDM+EDFA) technology has become the mainstream in the development of high-speed, large-capacity optical fiber communication systems. The Gracyfiber system integrates the monitoring capabilities of optical fiber communication technologies such as WDM, EDFA, and AWG. The wdm system in optical fiber adds EDFA in the c-band, which can be applied to different types of customers and saves a lot of money on user management and maintenance costs.
| Item | Unit | Technical parameter | |
|---|---|---|---|
| Bandwidth | nm | 1545~1565 | |
| Input optical power | dBm | -5 ~ +10 | |
| Max output power | dBm | 40 | |
| Output power stability | dBm | ±0.5 | |
| Noise | dB | ≤ 5.0 | |
| Return loss | Input | dB | ≥ 45 |
| Output | dB | ≥ 45 | |
| Optical connector | SC/APC&LCAPC | ||
| C/N | dB | ≥ 50 | |
| C/CTB | dB | ≥ 63 | |
| C/CSO | dB | ≥ 63 | |
| Supply voltage | V | A:AC160V~250V(50Hz);B:DC48V | |
| Consumption | W | ≤ 90 | |
| Working temperature | ℃ | -52 | |
| Max relative humidity | % | Max 5% no condensation | |
| Storage temperature | ℃ | -30 ~ +70 | |
| Devise size | mm | 464(L)*440(W)*89(H) | |
| Package size | mm | 640(L)*640(W)*200(H) | |
| Function | Model | |||
|---|---|---|---|---|
| TN1801 | TN1802 | TN1803 | TN1804 | |
| Support 40CH MUX&DEMUX | √ | √ | √ | √ |
| Support optical power amplification and automatical adjustment | √ | √ | √ | √ |
| Support 1+1 OLP protection | √ | √ | √ | √ |
| Support 1310 transmission channel | √ | √ | √ | √ |
| Support OSC network management channel | √ | √ | √ | √ |
| Support 40CH service optical power and link optical power monitoring | √ | √ | √ | √ |
| Support dispersion adjustment | √ | √ | ||
| Support optical fiber link measurement | √ | √ | ||
Gracyfiber can provide customized services of labels and packaging according to the different needs of customers
