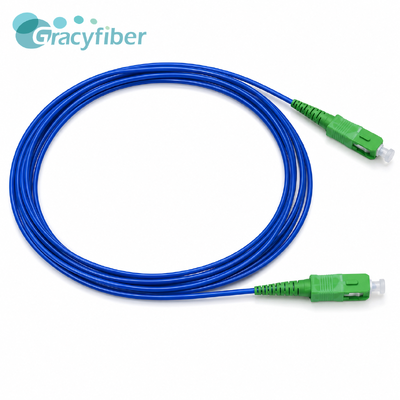

Polarization Maintaining Patch Cord C Band 4m SC APC PM1550 Fiber 2mm Blue Loose Tube for Fiber Laser and Optical Testing,Passive Optical Components

Model Number:	910001104-28-01

Detail Information

Product Description

Detail Information

Insertion Loss:

≤0.3dB

Extinction Ratio:

≥23dB

Return Loss:

>55dB

Fiber Length:

400cm

Max Optical Power:

300mW

Highlight:

PM1550 SC APC patch cord

Polarization maintaining fiber laser cable

4m PM patch cord for optical testing

Product Description

1. Product Description

This C-Band polarization-maintaining fiber optic patch cord uses YOFC PM1550 polarization-maintaining fiber and SC/APC connectors, and is axially aligned in the slow axis direction. It is suitable for optical communication and precision optical systems with specific requirements for polarization maintenance performance, connection loss and end-face reflection.

2. Key Features

NO.	Parameters	Unit	Spec.	Value
1	Insertion Loss	dB	MAX≤0.3	ILA	ILB
1	Insertion Loss	dB	MAX≤0.3	0.24	0.21
2	Extinction Ratio	dB	MIN≥23	ERA	ERB
2	Extinction Ratio	dB	MIN≥23	26	26
3	Return Loss	dB	MIN＞55	RLA	RLB
3	Return Loss	dB	MIN＞55	58	57
4	Connector	/	SC/APC	OK
5	Fiber Type	/	PM1550 Fiber	OK
5	Fiber Length	cm	400	OK
6	Max. Optical Power	mW	300	OK
7	Buffer Type	/	2mm Blue Loose Tube	OK
7	Operating Temperature (℃)		0 to 65	OK
8	Storage Temperature (℃)		-40 to 85	OK

C-Band Polarization-Maintaining Transmission: Employs PM1550 polarization-maintaining fiber, suitable for C-band polarization-dependent optical paths.

Slow Axis Alignment: Connectors are positioned along the slow axis to meet the axial connection requirements between polarization-maintaining devices.

Low Insertion Loss: IL≤0.3dB, helping to reduce optical power loss in the connection.

High Extinction Ratio: ER≥23dB, suitable for systems with high polarization maintenance requirements.

Low Reflection Connection: SC/APC connectors meet RL＞55dB performance requirements, reducing end-face reflection.

Custom 4m Length: Total length including connector is 400±20cm.

Reinforced Cable Structure: 2mm blue loose tube with internal aramid fiber reinforcement.

Clear Port Identification: Number tubes are defined as PMPC-C-Band-4m-A and PMPC-C-Band-4m-B.

300mW Optical Power Specification: Suitable for fiber optic connection systems within the specified power range.

English Test Report Provided: Facilitates performance verification and quality traceability for customers.

Polarization Maintaining Patch Cord C Band 4m SC APC PM1550 Fiber 2mm Blue Loose Tube for Fiber Laser and Optical Testing,Passive Optical Components

3. Applications

Coherent Communication
Fiber Laser System
Optical Sensing
Interferometer
Polarization Testing
Optical Instrument
