| Model Number: | 921000929 |

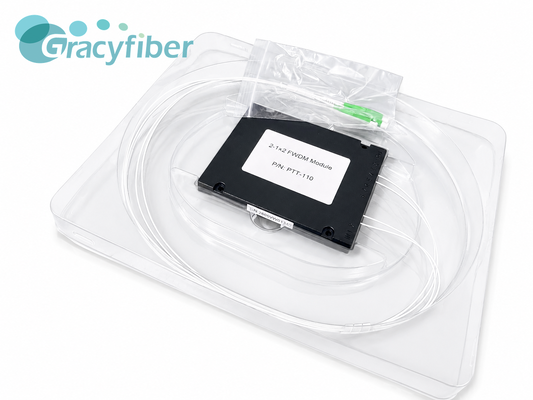

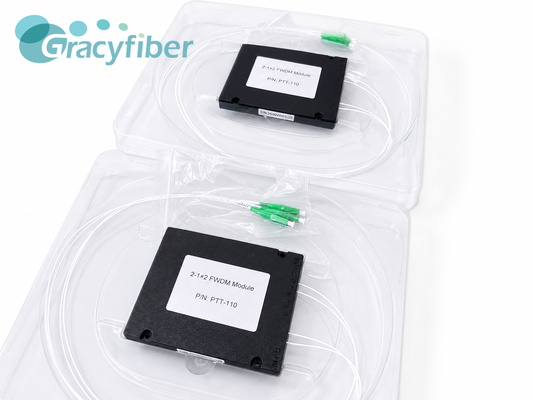

2 Channel FWDM Module 1260 1500nm and 1550nm WDM Filter Module SC UPC FC APC Low Loss for PON CATV Optical Network
1. Product Overview
This product is a 2CH FWDM wavelength division multiplexing (WDM) module, supporting multiplexing and demultiplexing applications in the 1550 nm band and 13/14 bands.
2. Core Product Features
| Parameter | Specification / Description | Remarks |
| Port 1 Wavelength | 1550 nm (Operating range: 1535~1565 nm) | |
| Port 2 Wavelength | 1310 / 1490 nm (Operating range: 1260~1500 nm) | |
| Overall Insertion Loss (IL) | < 1.5 dB | |
| Isolation (ISO) - 1550 Port | > 40 dB | Module testing required |
| Isolation (ISO) - 13/14 Port | > 35 dB | Module testing required (Note: component base spec >30 dB) |
| COM Port Connector | SC/UPC | |
| Port 1 (1550) Connector | FC/APC | |
| Port 2 (13/14) Connector | SC/UPC | |
| Pigtail / Tube Type | 0.9 mm loose tube, White | |
| Cable Length | 1 meter |
3. Applications
