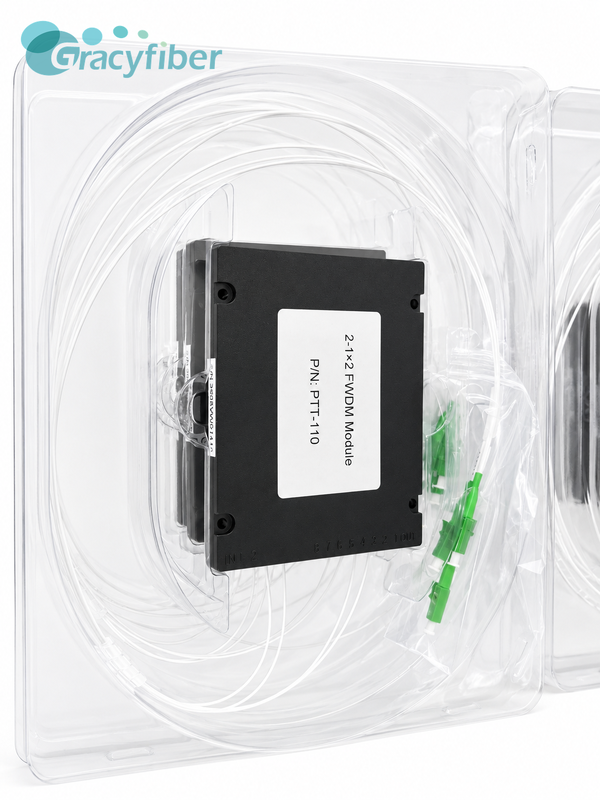

2(1x2) FWDM Cascaded module, DATA:T1260-1600nm, OTDR:R1650±10nm, 0.9mm loose tube with LC/APC connector, fiber length 0.5m, Package Dimension: 100×80×10mm

Model Number:	PTT-110

Detail Information

Product Description

Detail Information

Operating Wavelength:

1260-1660 Nm

Insertion Loss:

≤1.1 DB (DATA), ≤1.9 DB (OTDR)

Maximum Power Handling:

500 MW

Fiber Length:

500 ±50 Mm

Highlight:

FWDM module with LC/APC connector

FWDM cascaded module 1260-1600nm

FWDM loose tube fiber 0.5m

Product Description

2(1x2) FWDM Cascaded module, DATA:T1260-1600nm, OTDR:R1650±10nm, 0.9mm loose tube with LC/APC connector, fiber length 0.5m, Package Dimension: 100×80×10mm

1. Product Specifications

Parameters			Specifications		Unit
Operating Wavelength		1260-1660		nm
Pass band Wavelength		1260-1600		nm
Reflect band Wavelength		1640-1660		nm
Insertion Loss¹	DATA	≤1.1		dB
	OTDR	≤1.9		dB
Isolation	DATA	≥40		dB
	OTDR@1650	≥30		dB
Insertion Loss Temperature Sensitivity		≤0.5		dB
Wavelength Temperature Shifting		≤0.002		nm/℃
Polarization Dependent Loss		≤0.1		dB
Polarization Mode Dispersion		≤0.15		ps
Ripple		≤0.5		dB
Directivity		≥50		dB
Return Loss		≥50		dB
Maximum Power Handing		500		mW
Operating Temperature		-40~+85		℃
Storage Temperature		-40~+85		℃
Fiber Type		G657A		/
Lead Type		0.9mm loose tube(Hytrel)		/
lead Color		White		/
Lead Length		500±50		mm
Connector		LC/APC		/
Package size	ABS Box	L100×W80×H10		mm

2. Single FWDM schematic

2(1x2) FWDM Cascaded module, DATA:T1260-1600nm, OTDR:R1650±10nm, 0.9mm loose tube with LC/APC connector, fiber length 0.5m, Package Dimension: 100×80×10mm 0

3. Reliability Specifications

Telcordia GR-1209 core
Telcordia GR-1221 core
RoHS and REACH compliance

4. Internal Structure

2(1x2) FWDM Cascaded module, DATA:T1260-1600nm, OTDR:R1650±10nm, 0.9mm loose tube with LC/APC connector, fiber length 0.5m, Package Dimension: 100×80×10mm 1

5. Dimensions

2(1x2) FWDM Cascaded module, DATA:T1260-1600nm, OTDR:R1650±10nm, 0.9mm loose tube with LC/APC connector, fiber length 0.5m, Package Dimension: 100×80×10mm 2

6. Mechanical Dimensions

2(1x2) FWDM Cascaded module, DATA:T1260-1600nm, OTDR:R1650±10nm, 0.9mm loose tube with LC/APC connector, fiber length 0.5m, Package Dimension: 100×80×10mm 3
