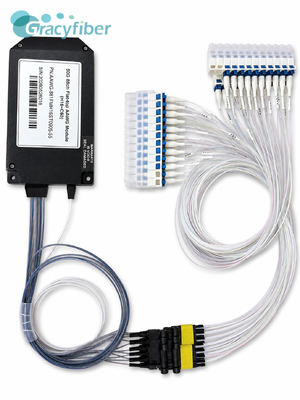

Name: 40 Channel 100GHz Flat Top DWDM AAWG Module C15 C34 C41 C60 LC UPC SC UPC Fiber Optic Multiplexer Demultiplexer
Brand: Shenzhen Gracyfiber Technology Co., Ltd.
Availability: InStock

Detail Information

Product Description

Detail Information

Channel Count:

Channel Spacing:

100GHz

Insertion Loss:

≤5.6dB

Operating Temperature:

-5 ~ +65°C

Highlight:

40 Channel DWDM Mux Demux module

100GHz Flat Top DWDM AAWG

LC UPC SC UPC fiber multiplexer

Product Description

40 Channel 100GHz Flat Top DWDM AAWG Module C15 C34 C41 C60 LC UPC SC UPC Fiber Optic Multiplexer Demultiplexer

1. Product Overview

This product is a 40-channel 100GHz DWDM AAWG module, employing a flat-top AAWG design, covering channels C15–C34 and C41–C60.

2. Core Product Features

Parameters	Unit	Specification
Channel	CH	40
Chip type		Flat Top
Channel Spacing	GHz	100
Channel Pass band	nm	ITU±0.11
Insertion Loss	dB	≤5.6
Bandwidth@1dB	nm	≥0.4
Bandwidth@3dB	nm	≥0.6
Adjacent Isolation	dB	≥23
Non-adjacent Isolation	dB	≥29
Non-adjacent Crosstalk	dB	≥21
Return Loss	dB	≥45
Directivity	dB	≥50
Channel Uniformity	dB	≤1.5
Ripple	dB	≤0.5
Chromatic Dispersion	ps/nm	±20
Operating Temperature	°C	-5 ~ +65

40-wavelength DWDM channel design
100GHz standard channel spacing
Stable performance with flat-top AAWG
Excellent optical specifications
Flexible fiber output and interface configuration

3. Applications

100G DWDM wavelength division transmission systems
40-channel dense wavelength division multiplexing/demultiplexing systems
Metropolitan area networks, backbone networks, and carrier optical transmission networks
Data center interconnection and high-capacity link expansion
Integration of optical transmission equipment, wavelength division platforms, and subsystems
Multi-wavelength optical signal testing, monitoring, and laboratory verification platforms

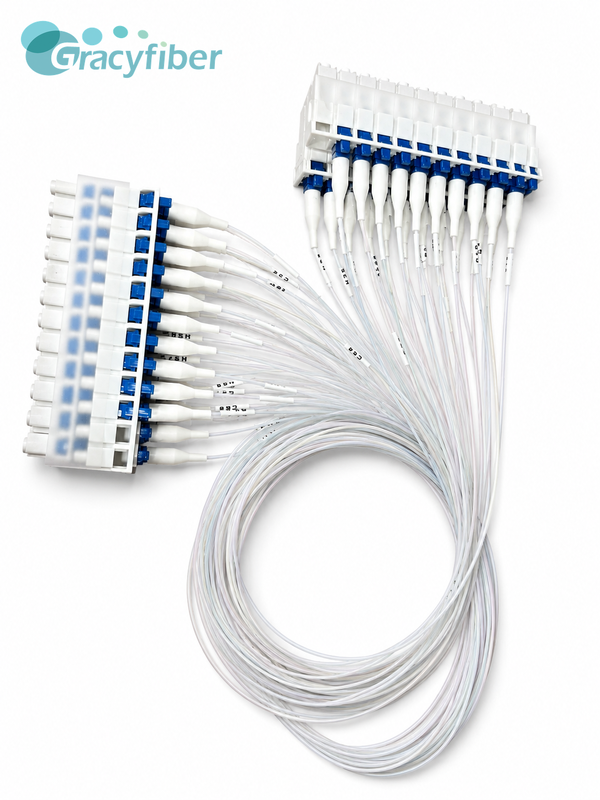

40 Channel 100GHz Flat Top DWDM AAWG Module C15 C34 C41 C60 LC UPC SC UPC Fiber Optic Multiplexer Demultiplexer 0
