14CH PM Fiber Array | 0° Flat Quartz Block, 127μm Pitch | PM II+I Alignment, Slow Axis to Key | High ER 25dB PMFA | Gracyfiber

14CH PM Fiber Array | 0° Flat Quartz Block, 127μm Pitch | PM II+I Alignment, Slow Axis to Key | High ER 25dB PMFA | Gracyfiber

Model Number: 910001714-01
Detail Information
Product Description
Detail Information
Highlight:

14CH PM fiber array quartz block

,

127μm pitch PM fiber array

,

high ER 25dB PMFA

Product Description
14CH PM Fiber Array | 0° Flat Quartz Block, 127μm Pitch | PM II+I Alignment, Slow Axis to Key | High ER 25dB PMFA | Gracyfiber
1. Product Overview

This product is a 14-channel polarization-maintaining fiber array (PMFA), using quartz glass and Corning PM1550 polarization-maintaining fiber. The channel spacing is 127 μm, and the polishing angle is A0°.

2. Core Product Features
Parameters Unit Spec. Value
Channel / 14 OK
Material / Quartz Glass OK
Channel Spacing μm 127 OK
Polishing Angle Degree A0° OK
Package(L)X(W)X(H) mm 15*3*1.125 OK
Insertion Loss dB ≤0.3 　
　
　
　
　
　
　
　
Extinction Ratio dB ≥18 25
　
　
　
　
　
　
　
FA PM Fiber Alignment / PMII+I OK
Connctor PM Fiber Alignment / Slow Axis
Alignment Key		 OK
Fiber Type / PM1550 OK
Fiber Tube mm 0.9 OK
Tube Color / Blue OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • 14-channel polarization-maintaining array design
  • Low insertion loss performance
  • High extinction ratio polarization-maintaining capability
  • Precision FA structure design
3. Applications
  • 1550 nm polarization-maintaining fiber communication systems
  • Coherent optical communication modules
  • Multi-channel optical modules and transceiver packaging
  • Silicon photonics chip coupling and photonic integration packaging
  • Fiber optic sensing, interferometers, and polarization control systems
  • Optical path coupling for lasers, modulators, and detectors
  • Laboratory optical path testing platforms and high-precision optical equipment

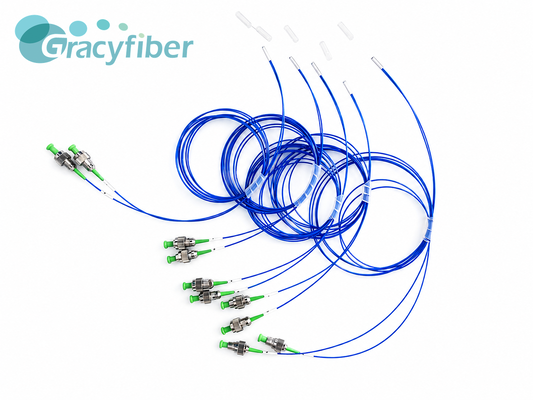

14CH PM Fiber Array | 0° Flat Quartz Block, 127μm Pitch | PM II+I Alignment, Slow Axis to Key | High ER 25dB PMFA | Gracyfiber 0

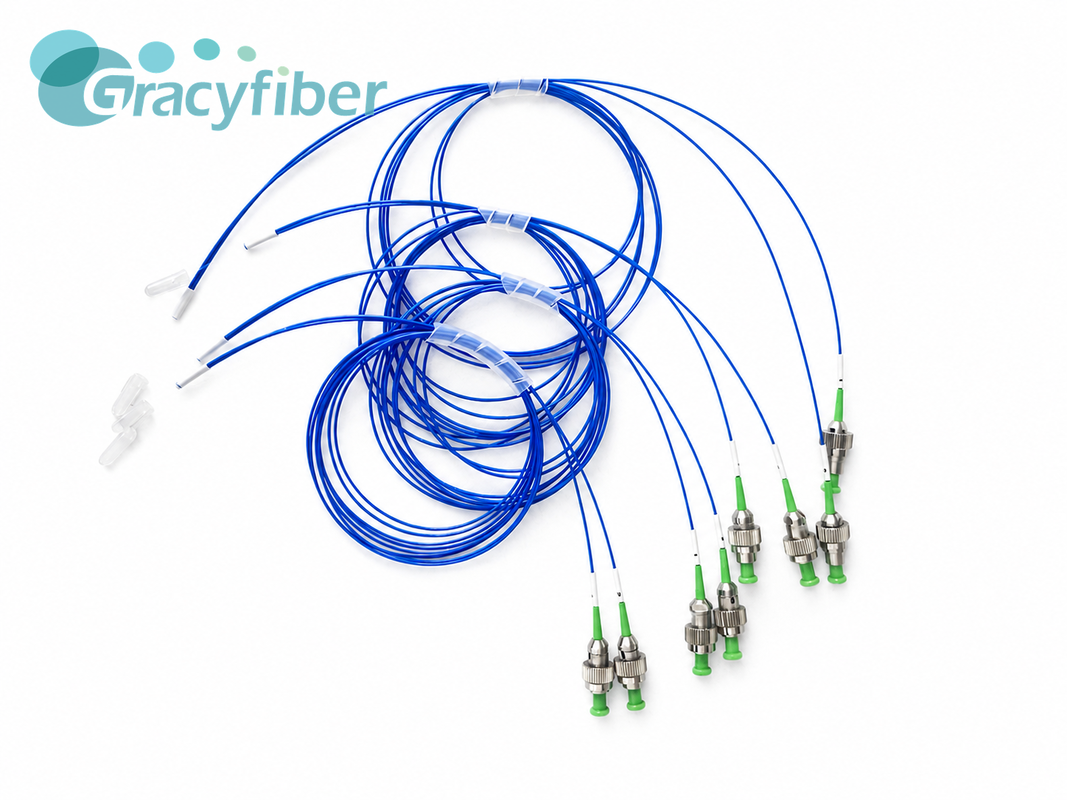

14CH PM Fiber Array | 0° Flat Quartz Block, 127μm Pitch | PM II+I Alignment, Slow Axis to Key | High ER 25dB PMFA | Gracyfiber 1
