| Model Number: | 910001701-04 |
1CH PM Fiber Array | 0° Ultra-Thin 8x2.5x0.753mm Quartz Block | Corning PM1550, Slow Axis to Key | High ER 25dB PMFA | Gracyfiber
1. Product Overview

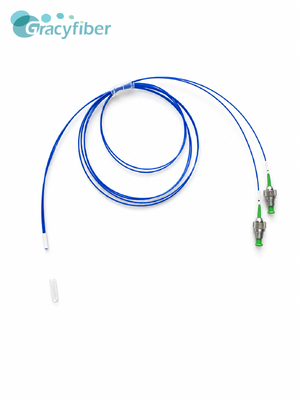

This product is a single-channel polarization-maintaining fiber array (PMFA), using quartz glass and Corning PM1550 polarization-maintaining fiber, with a polishing angle of A0°.
2. Core Product Features
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 1 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | / | OK |
| Polishing Angle | Degree | / | OK |
| Package(L)X(W)X(H) | mm | 8*2.5*0.753 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Extinction Ratio | dB | ≥18 | 25 |
| FA PM Fiber Alignment | / | PMII | OK |
| Connctor PM Fiber Alignment | / | Slow Axis Alignment Key |
OK |
| Fiber Type | / | PM1550 | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | Blue | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
3. Applications
