TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring

Detail Information

Product Description

Detail Information

Document:

Operating Wavelength:

1310nm / 1550nm

TAP Ratio:

1:99, 2:98, 3:97, 5:95

Insertion Loss:

≤0.4dB / ≤0.5dB

Responsivity:

8-12 / 16-24 / 24-36 / 40-60mA/W

Return Loss:

≥45dB

Package Dimension:

Φ5.5×17mm, Φ3.2×17mm

Highlight:

1310nm 1550nm photodetector for optical monitoring

low dark current photodetector for networks

optical power monitoring photodetector with warranty

Product Description

1. Features

Compact TAP photodetector with normal and mini package options
Fast response with ≥1.5GHz bandwidth
Low dark current ≤1.0nA @25℃, 5V
Low insertion loss and low polarization dependent loss
Multiple TAP ratios available: 1:99, 2:98, 3:97, 5:95
Telcordia GR-1221 and GR-1071 referenced design

2. Applications

Optical power monitoring
WDM optical communication systems
Optical amplifier monitoring
Fiber sensor systems
Optical instruments and test equipment
1310nm / 1550nm fiber optic networks

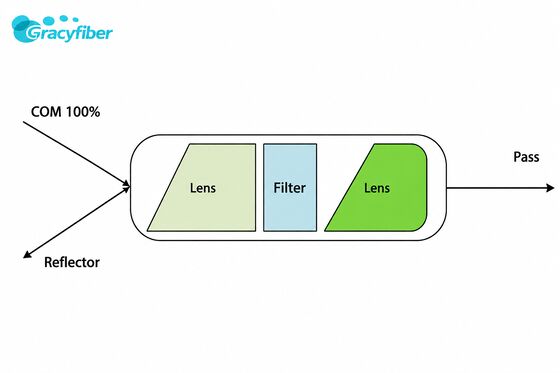

TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring 0

3. Specifications

Operating Wavelength: 1310nm / 1550nm
TAP Ratio: 1:99, 2:98, 3:97, 5:95
Insertion Loss: ≤0.4dB / ≤0.5dB, excluding connectors
Responsivity: 8–12 / 16–24 / 24–36 / 40–60mA/W
Return Loss: ≥45dB

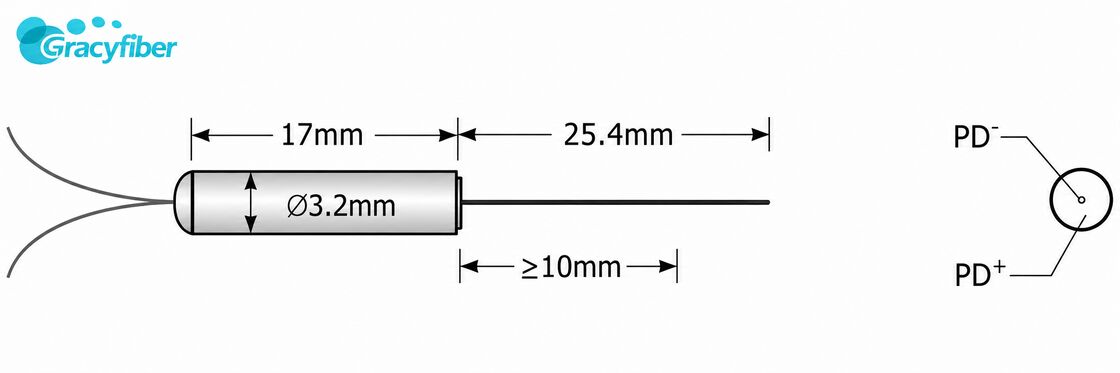

Package Dimension: Normal Φ5.5×17mm, Mini Φ3.2×17mm

TAP Photo Detector 1310nm 1550nm Low Dark Current Photodetector For Optical Power Monitoring 1
