1:99 Tap PD,3:97 Tap PD,5:95 Tap PD

Detail Information

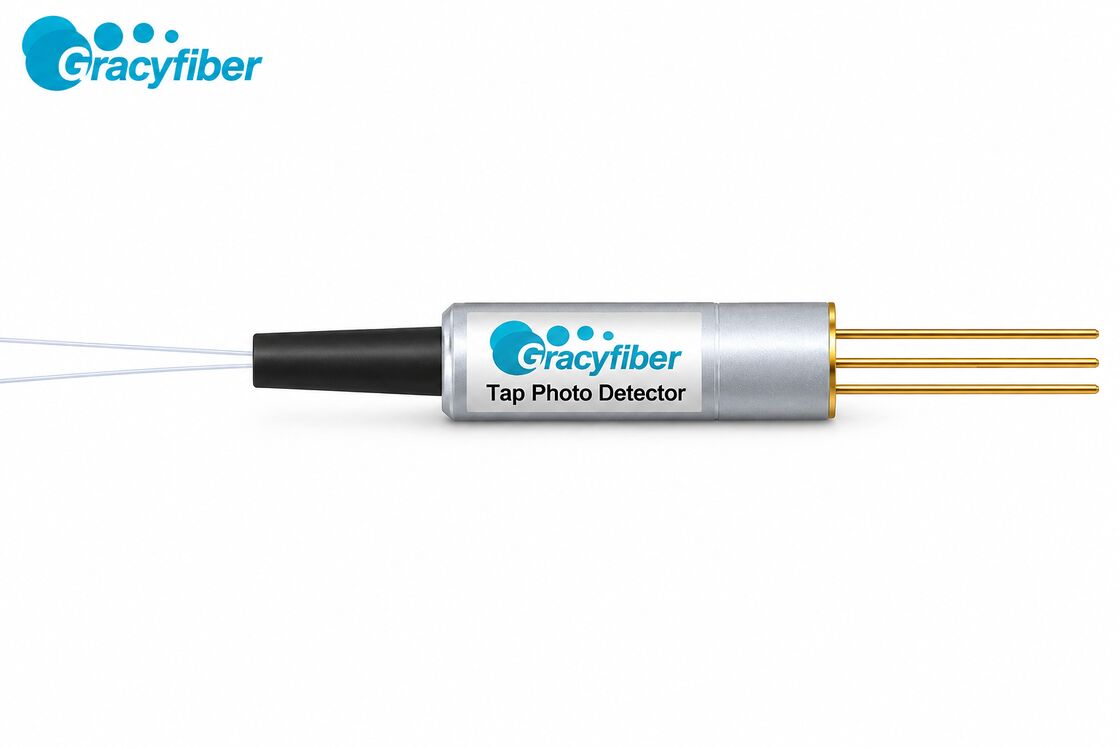

Product Description

Detail Information

Document:

Wavelength Range:

1260-1620nm

Tap Ratio:

1:99, 3:97, 5:95

Insertion Loss:

0.35dB / 0.4dB / 0.5dB

Extinction Ratio:

≥18dB @23℃

Return Loss:

≥45dB

Connector Type:

FC/APC

Highlight:

1:99 tap PD network splitter

3:97 tap PD signal monitoring

5:95 tap PD fiber optic

Product Description

1. Features

Polarization maintaining PM tap photodetector design
Low insertion loss and low dark current
Low WDL and PDL for stable signal monitoring
Available tap ratios: 1:99, 3:97, 5:95
FC/APC connector and Corning PM1310 Panda fiber
Slow axis working, fast axis blocked

2. Applications

DWDM channel monitoring
Optical line protection monitoring
ROADM multiplexers
Optical amplifier gain monitoring
PM fiber optical power monitoring
Fiber optic test and measurement systems

3. Specifications

Wavelength Range: 1260–1620nm
Tap Ratio: 1:99, 3:97, 5:95
Insertion Loss: 0.35dB / 0.4dB / 0.5dB, excluding connectors
Extinction Ratio: ≥18dB @23℃
Return Loss: ≥45dB
P/N Example: PMTAP-3101ST10910-22, 1310nm PMF tap coupler, 1:99, 1.0m, FC/APC
