PM Fiber Tap Photo Detector with Corning PM1310 Panda Fiber for ROADM and EDFA Monitoring

PM Fiber Tap Photo Detector with Corning PM1310 Panda Fiber for ROADM and EDFA Monitoring

Detail Information
Product Description
Detail Information
Document:
A-PM Tap PD - Gracyfiber-23...-A.pdf
Operating Wavelength:
1260~1620nm
Tap Ratios:
1:99, 3:97, 5:95
Insertion Loss:
0.35dB
Responsivity:
40~60mA/W
Dark Current:
<0.5nA At 25℃
Extinction Ratio:
≥18dB
Highlight:

PM fiber tap photo detector

,

Corning PM1310 Panda fiber detector

,

ROADM EDFA monitoring detector

Product Description

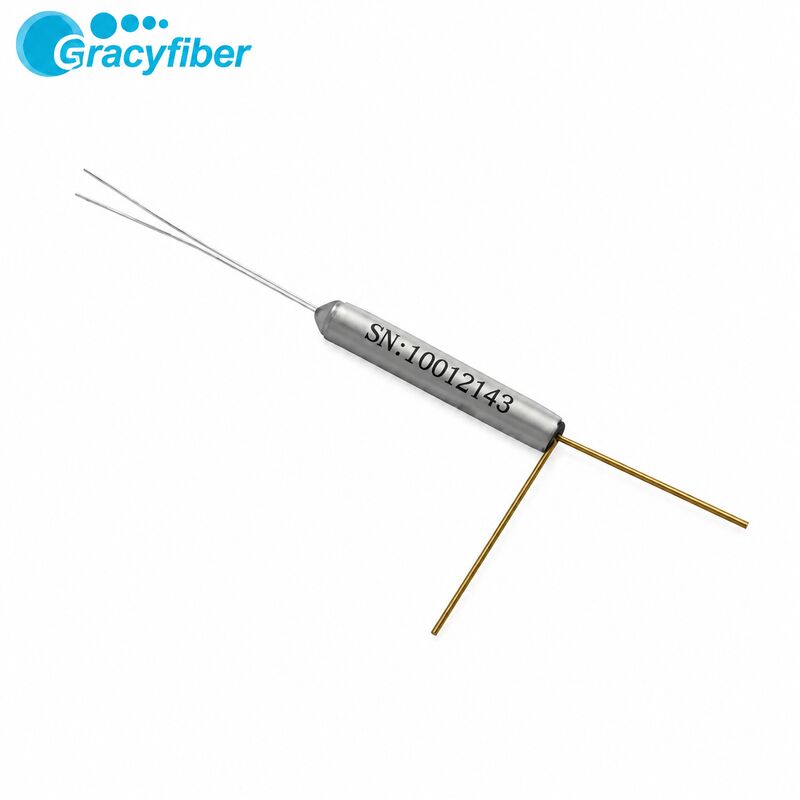

PM Fiber Tap Photo Detector with Corning PM1310 Panda Fiber for ROADM and EDFA Monitoring


1. Product Description

PM Tap Photo Detector, Polarization-Maintaining Tap Detector, 1260~1620nm, 1:99, 3:97, 5:95, Online Power Monitoring Module for DWDM, OLP, ROADM and Amplifier Monitoring

PM Fiber Tap Photo Detector with Corning PM1310 Panda Fiber for ROADM and EDFA Monitoring 0


2. Key Features

Supports a wide operating wavelength range of 1260~1620nm
Supports multiple tap ratios: 1:99, 3:97, 5:95
Insertion loss as low as 0.35dB without connectors
High responsivity design, up to 40~60mA/W
Low dark current, <0.5nA at 25℃
Extinction ratio ≥18dB
Wavelength-dependent loss ≤0.3dB
Return loss ≥45dB
Uses Corning PM1310 Panda Fiber
Default FC/APC interface, slow axis keying
Operating temperature -5~65℃, storage temperature -40~85℃


3. Applications

DWDM Channel Power Monitoring
Optical Line Protection Monitoring
ROADM Multiplexers
Amplifier Gain Monitoring
Online Link Status Detection
Polarization-Maintaining Optical Communication and Testing System

PM Fiber Tap Photo Detector with Corning PM1310 Panda Fiber for ROADM and EDFA Monitoring 1
