1:99 Tap PD,PM Tap Photo Detector

Detail Information

Product Description

Detail Information

Document:

Wavelength Range:

1260-1620nm

Tap Ratio:

1:99, 3:97, 5:95

Insertion Loss:

0.35dB / 0.4dB / 0.5dB

Extinction Ratio:

≥18dB @23℃

Return Loss:

≥45dB

Fiber Type:

Corning PM1310 Panda Fiber

Highlight:

1:99 tap PD network detector

PM tap photo detector

network visibility tap PD

Product Description

1:99 Tap PD,PM Tap Photo Detector

1. Features

Polarization maintaining tap photodetector design
Low insertion loss and low dark current
Low WDL and PDL for stable optical monitoring
Compact package suitable for module integration
Available tap ratios: 1:99, 3:97, 5:95
Customized tap ratios and package options available

2. Applications

DWDM channel monitoring
Optical line protection monitoring
ROADM multiplexers
EDFA / optical amplifier gain monitoring
Optical power monitoring in PM fiber systems
Fiber optic communication test equipment

3. Specifications

Wavelength Range: 1260–1620nm
Tap Ratio: 1:99, 3:97, 5:95
Insertion Loss: 0.35dB / 0.4dB / 0.5dB, excluding connectors
Extinction Ratio: ≥18dB @23℃
Return Loss: ≥45dB
Fiber Type: Corning PM1310 Panda Fiber

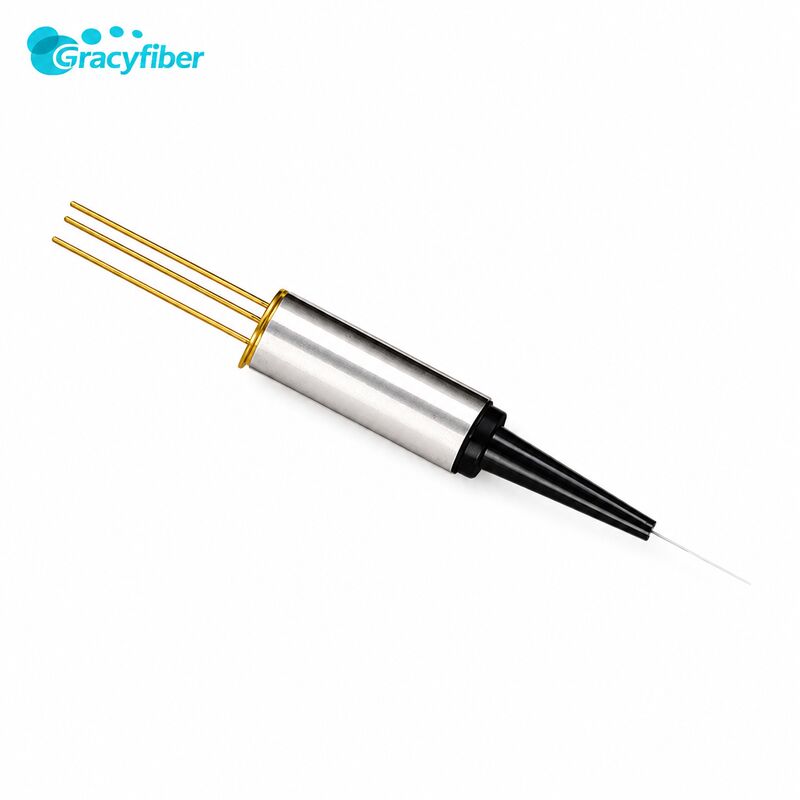

1:99 Tap PD,PM Tap Photo Detector 0

1:99 Tap PD,PM Tap Photo Detector 1
