Low Insertion Loss 850/1310nm FWDM Optical Filter for Multimode Fiber WDM Applications

Brand Name:	Gracyfiber
MOQ:	1pieces
Payment Terms:	L/C, T/T
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong , China

Certification:

ISO9001 , ROHS

Supply Ability:

100,000 pieces per month

Highlight:

Low insertion loss FWDM optical filter

850/1310nm FWDM for multimode fiber

FWDM filter for WDM applications

Product Description

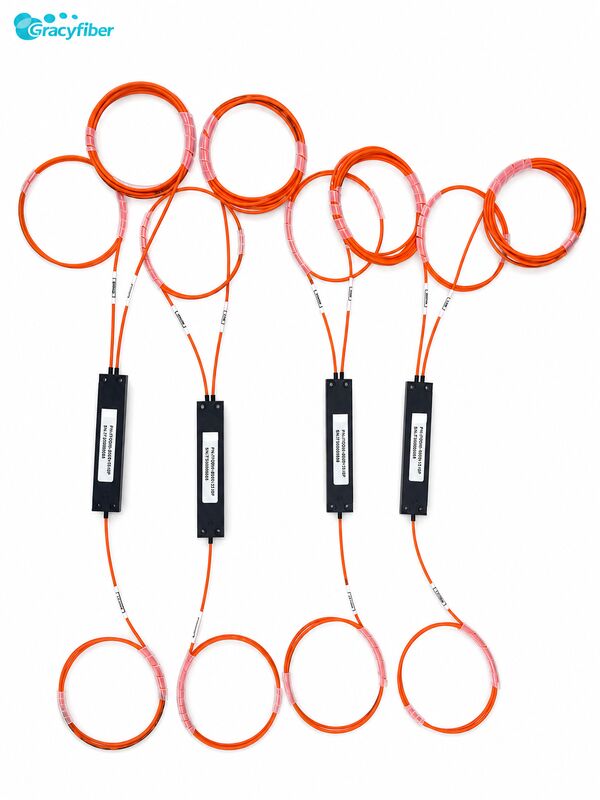

Low Insertion Loss 850/1310nm FWDM Optical Filter

This multimode fiber WDM filter features 850nm reflection and 1310nm pass functionality, housed in a plastic case specifically designed for optical modules.

Optical Performance Specifications

Parameter	Unit	Specifications
Operating Wavelength	nm	850 & 1310
Operating Bandwidth	nm	±50
Transmission (PASS) Wavelength	nm	1310
Reflection (REF) Wavelength	nm	850
Transmission Insertion Loss at 1310nm	Max dB	0.7
Reflection Insertion Loss at 850nm	Max dB	0.6
Transmission Insertion Isolation at 850nm	Min dB	30.0
Reflection Insertion Isolation at 1310nm	Min dB	15.0
