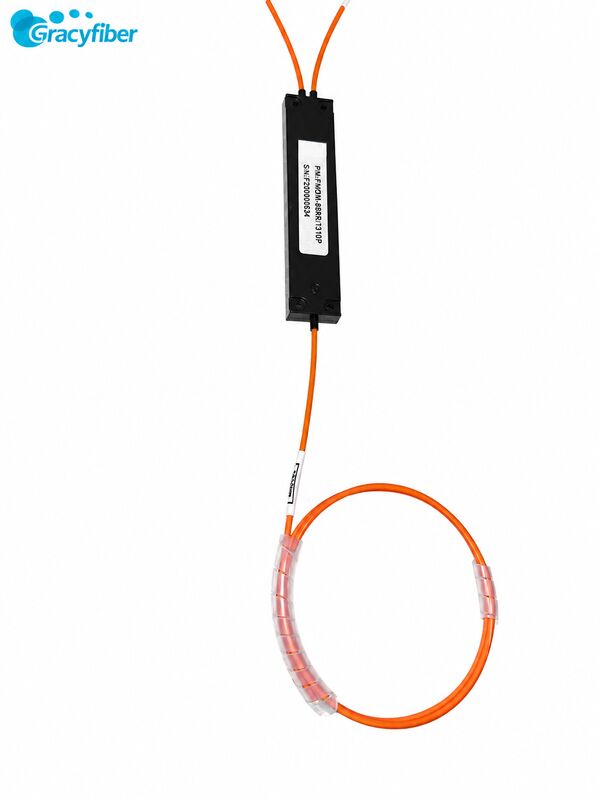

Name: Multimode FWDM Filter 850R 1310P Low Insertion Loss WDM Filter
Brand: Shenzhen Gracyfiber Technology Co., Ltd.
Availability: InStock

Detail Information

Product Description

Detail Information

Operating Wavelength:

850nm & 1310nm

Insertion Loss:

≤0.7dB @1310nm, ≤0.6dB @850nm

Isolation:

≥30dB @850nm, ≥15dB @1310nm

Package Size:

85 × 18 × 6.5mm

Fiber Type:

62.5/125/250μm

Operating Temperature:

-20℃ To +70℃

Highlight:

Multimode FWDM filter low insertion loss

FWDM filter 850R 1310P

WDM filter multimode high performance

Product Description

1. Features

850nm reflection and 1310nm pass FWDM filter design
Low insertion loss: ≤0.7dB at 1310nm, ≤0.6dB at 850nm
High isolation performance for dual-wavelength optical systems
Compact plastic case package with no connector design
62.5/125/250μm multimode fiber with PUR loose tube cable
RoHS compliant for global optical communication applications

2. Applications

850nm / 1310nm dual-wavelength optical transmission systems
Optical transceiver modules and optical sub-assemblies
Multimode fiber communication networks
Fiber optic testing and measurement systems
Industrial optical sensing and monitoring equipment
OEM optical module integration

3. Specifications

Parameter	Specification
Product Type	FWDM Filter - 850R / 1310P
Operating Wavelength	850nm & 1310nm
Pass Wavelength	1310nm
Reflection Wavelength	850nm
Insertion Loss	≤0.7dB @1310nm, ≤0.6dB @850nm
Isolation	≥30dB @850nm, ≥15dB @1310nm
Package Size	85 × 18 × 6.5mm
Fiber Type	62.5/125/250μm
Operating Temperature	-20℃ to +70℃
