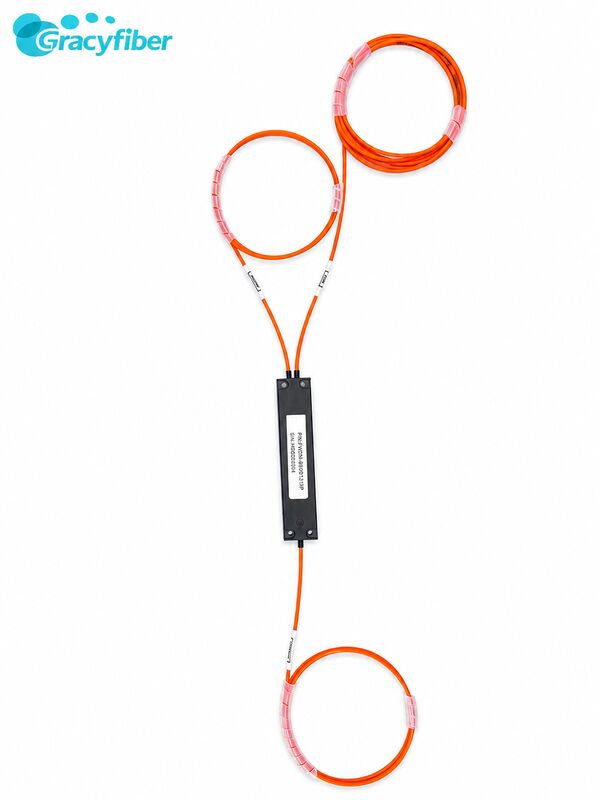

The FWDM Filter 850R/1310P is a compact fiber wavelength division multiplexing filter designed for efficient separation and routing of 850nm and 1310nm optical signals in multimode fiber systems.

2. Features

850nm reflection / 1310nm transmission FWDM filter
Low insertion loss: 0.7dB max at 1310nm, 0.6dB max at 850nm
High isolation: 30dB min at 850nm transmission path
Low PDL: 0.1dB max
Compact plastic case: 85 × 18 × 6.5mm
RoHS compliant design

3. Applications

Optical transceivers and fiber optic modules
Multimode fiber communication systems
850nm / 1310nm wavelength separation
Optical monitoring and test systems
Data center and enterprise optical links
Customized fiber optic assemblies
