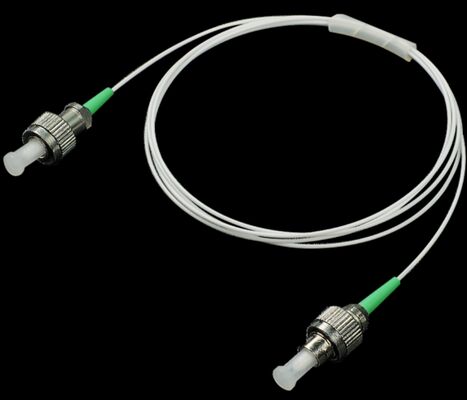

Polarization Maintaining Fiber Patchcord
Ø Low Insertion Loss
Ø High Return Loss & ER
Ø High Stability and Reliability
Ø Fiber Laser
Ø Testing Instrument
Ø Fiber Amplifiber
Ø Optic lab use
|
Parameter |
Value |
||||
|
Connector Type |
/ |
FC/UPC, SC/UPC,LC/UPC,FC/APC, SC/APC, |
|||
|
Wavelength |
nm |
1310,1480, 1550 |
980, 1064, |
850 |
|
|
Insertion Loss |
dB |
≤0.3 |
≤0.5 |
≤0.8 |
|
|
Return loss |
UPC Type |
dB |
≥50 |
||
|
APC type |
≥55 |
||||
|
Extinction Ratio 23℃ |
dB |
≥23 |
≥23 |
≥22 |
|
|
Fiber Type |
/ |
PM1310,PM1550 |
PM980 |
PM850 |
|
|
Fiber Length |
cm |
100±5 or Customized |
|||
|
Key Orientation |
/ |
Slow Axis |
|||
|
Axis Alignment |
deg |
±3 |
|||
|
Operating temperature |
℃ |
-5~+70 |
|||
|
Storage temperature |
℃ |
-40 ~ +80 |
|||
4. Package Dimension
5. Ordering information
|
PMPC |
- |
XXX |
XX |
XX |
XX |
- |
X |
X |
|
PMPC= PM Patch Cord |
|
Wavelength |
Axis |
Fiber Type |
Fiber Length |
|
Com connector |
Port Connector |
|
|
085=850nm |
SA=Slow axi |
02=250um fiber |
10=1.0m |
|
0=None |
0=None |
|
|
|
098=980nm |
FA=Fast axi |
09=0.9mm Tube |
XX=Customized |
|
1=FC/UPC |
1=FC/UPC |
|
|
|
106=1064nm |
|
20=2.0mm Tube |
|
|
2=FC/APC |
2=FC/APC |
|
|
|
|
131=1310nm |
|
30=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
|
|
|
148=1480nm |
|
XX=Customized |
|
|
4=SC/APC |
4=SC/APC |
|
|
|
155=1550nm |
|
|
|
|
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
X=Customized |
X=Customized |
|
Part Number |
Product Description |
|
PMPC-155SA0910-22 |
Polarization Maintaining Fiber Patchcord, single mode, PM1550nm Panda fiber with 0.9mm white loose tube, fiber Length 1m (with connector), connector FC/APC to FC/APC |
