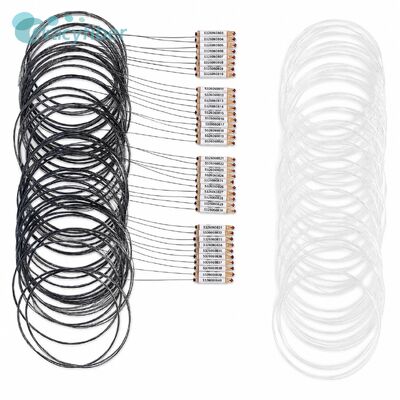

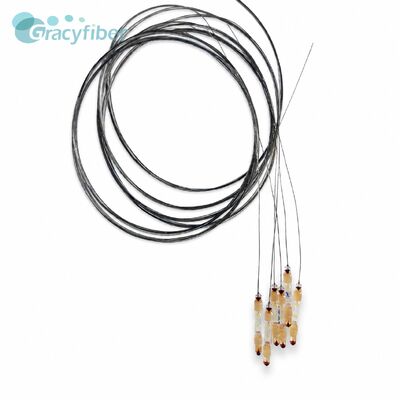

1. Specifications
|
Parameters |
Unit |
Value |
|
|
Transmission Wavelength |
nm |
1535~1565 |
|
|
Reflection Wavelength |
nm |
1480±10 |
|
|
Insertion Loss |
Transmission |
dB |
≤0.8 |
|
Reflection |
dB |
≤0.6 |
|
|
Isolation (dB) |
Transmission |
dB |
≥25 |
|
Reflection |
dB |
≥15 |
|
|
Ripple |
dB |
≤0.4 |
|
|
Minimum extinction ratio (23℃) |
dB |
≤18 |
|
|
Return Loss |
dB |
≥50 |
|
|
Maximum Optical Input Power range |
mW |
300 |
|
|
Fiber Type |
/ |
Corning PM15-U25D |
|
|
Operating Temperature |
℃ |
0~70 |
|
|
Storage Temperature |
℃ |
-40~85 |
|
|
Package Dimension (Φ*L) |
mm |
Φ5.5 xL38 |
|
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
2. Mechanical Dimensions(Refer to the below)
3. Ordering information
|
CWDM |
- |
XX |
X XX |
XX |
X |
XX |
- |
X |
X |
X |
|
|
|
Port |
Pass Channel |
Module type |
Fiber Type |
Output Fiber Length |
|
COM Port Connector |
Pass Port Connector |
Reflection Port Connector |
|
CWDM |
|
01=1*1 |
470=1470 |
G1~6=Glass Tube |
B= bare fiber |
10=1.0m |
|
00=None |
00=None |
00=None |
|
|
|
02=1*2 |
471=1471 |
S1~6=Steel Tube |
L=0.9mmtube |
12=1.2m |
|
1=FC/UPC |
1=FC/UPC |
1=FC/UPC |
|
|
|
|
……. |
B0=90x20x10mm |
02=2.0mm Tube |
15=1.5m |
|
2=FC/APC |
2=FC/APC |
2=FC/APC |
|
|
|
|
610=1610 |
X0= Customized |
03=3.0mm Tube |
|
|
3=SC/UPC |
3=SC/UPC |
3=SC/UPC |
|
|
|
|
611=1611 |
|
|
|
|
4=SC/APC |
4=SC/APC |
4=SC/APC |
|
|
|
|
|
|
|
|
|
5=LC/UPC |
5=LC/UPC |
5=LC/UPC |
|
|
|
|
|
|
|
|
|
6=LC/APC |
6=LC/APC |
6=LC/APC |
|
|
|
|
|
|
|
|
|
X= Customized |
X= Customized |
X=Customized |
|
NO. |
Size Φ*L |
Materials |
NO. |
Size Φ*L |
Materials |
|
G1 |
Φ2.6*24~27 |
Glass Tube |
S1 |
Φ3.2*27 |
Steel tube |
|
G2 |
Φ3.0*24~27 |
Glass Tube |
S2 |
Φ3.2*30 |
Steel tube |
|
G3 |
Φ3.2*24~27 |
Glass Tube |
S3 |
Φ3.6*30 |
Steel tube |
|
G4 |
Φ3.6*24~27 |
Glass Tube |
S4 |
Φ4.8*38 |
Steel tube |
|
G5 |
Φ3.8*24~27 |
Glass Tube |
S5 |
Φ5.5*34 |
Steel tube |
|
G6 |
Φ4.0*24~27 |
Glass Tube |
S6 |
Φ5.5*38 |
Steel tube |
|
Part Number |
Product Description |
|
CWDM-02491S6B10-000 |
CWDM Devices 1491nm, 3-Port, Steel Tube (Φ5.5*38mm),Com/Pass/Ref Fiber Length 1.0m with 0.9mm Hytrel Loose Tube, Connectors: COM port SC/PC , Ref port :SC/PC, Pass Port:SC/APC |
