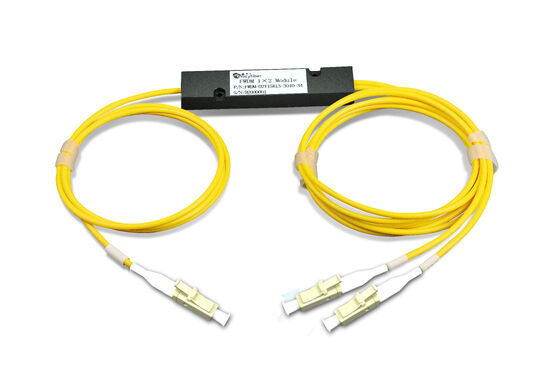

PM FWDM (Polarization Maintaining Filter Wavelength Division Multiplexer)

PM FWDM Device

1. Features

ü  Low Insertion Loss

ü  High Isolation

ü  Compact Design

ü  Wide Operating Wavelength: 1260nm~1620nm

ü  Wide Operating Temperature

ü  High Reliability and Stability

2. Applications

ü  ROADM

ü  CATV system

ü  CWDM System

ü  PON Networks

3.  Compliance

ü  ITU-T G.694.2

ü  RoHS

4. Specifications

*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

1. For specific optical path designs, do you support customization of wavelength, splitting ratio, and polarization-maintaining axis (OEM/ODM)?

Fully supported. Leveraging strong original engineering and manufacturing capabilities, we offer in-depth micro-optics customization services. You can precisely specify specific transmission and reflection wavelength combinations (e.g., 980/1550nm, 1310/1550nm, etc.); specify the working axis of the polarization-maintaining fiber (slow axis or fast axis); and customize 250μm bare fiber or 900μm loose tubes according to the internal wiring of the chassis, as well as high-precision FC/APC polarization-maintaining connectors with narrow keys, perfectly matching your physical drawings.

2. How do you control delivery time and production capacity for large-scale bulk orders from optical module and amplifier manufacturers?

The micro-optical coupling process of polarization-maintaining devices is extremely complex, but we have a large-capacity, highly automated PM passive device packaging and cleanroom production line. For initial R&D prototyping or small-batch orders, rigorous high-standard testing (including extinction ratio and insertion loss testing) can typically be completed and delivered within 1-2 weeks. For large-batch orders for EDFA or coherent modules, the standard delivery time is strictly controlled within 3-4 weeks. The direct-supply model can reliably guarantee that your mass production milestones are progressing on time.
