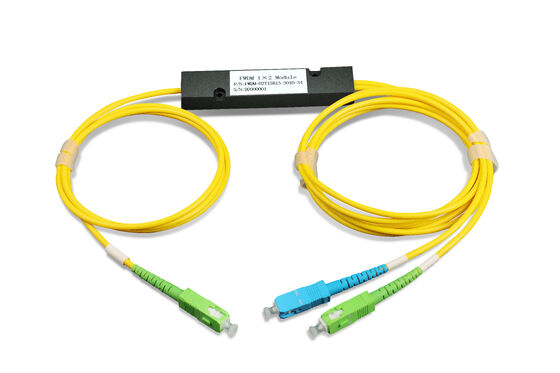

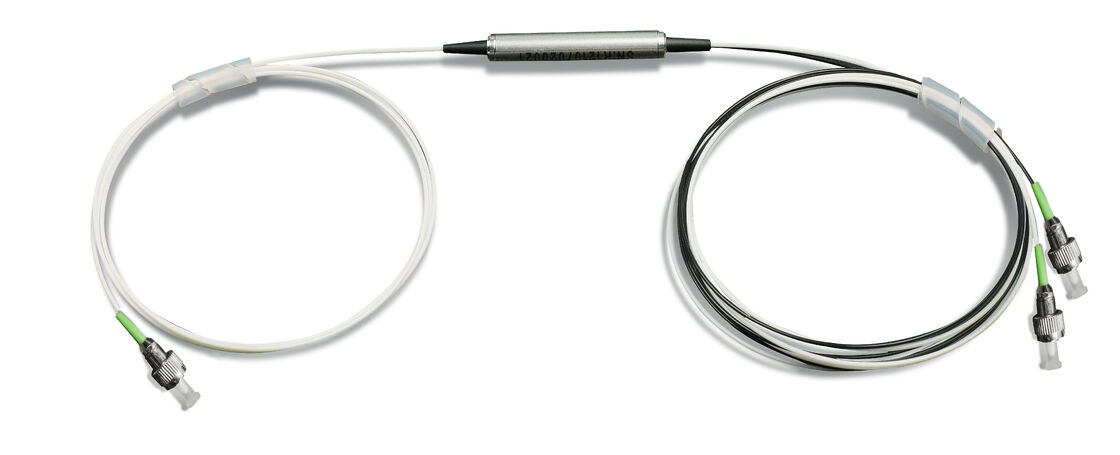

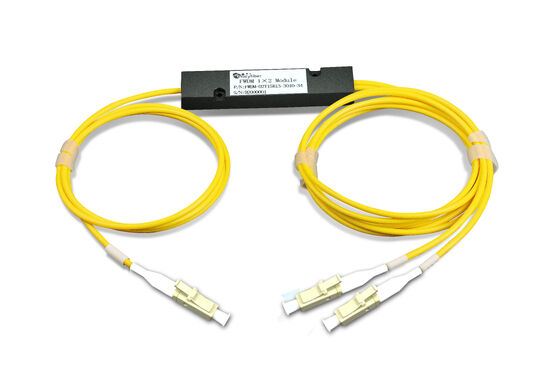

PM FWDM Device
1. Features
ü Low Insertion Loss
ü High Isolation
ü Compact Design
ü Wide Operating Wavelength: 1260nm~1620nm
ü Wide Operating Temperature
ü High Reliability and Stability
2. Applications
ü ROADM
ü CATV system
ü CWDM System
ü PON Networks
3. Compliance
ü ITU-T G.694.2
ü RoHS
4. Specifications
|
Parameters |
Unit |
Value |
|
|
Transmission Wavelength |
nm |
1535~1565 |
|
|
Reflection Wavelength |
nm |
1480±10 |
|
|
Insertion Loss |
Transmission |
dB |
≤0.8 |
|
Reflection |
dB |
≤0.6 |
|
|
Isolation (dB) |
Transmission |
dB |
≥25 |
|
Reflection |
dB |
≥15 |
|
|
Ripple |
dB |
≤0.4 |
|
|
Minimum extinction ratio (23℃) |
dB |
≤18 |
|
|
Return Loss |
dB |
≥50 |
|
|
Maximum Optical Input Power range |
mW |
300 |
|
|
Fiber Type |
/ |
Corning PM15-U25D |
|
|
Operating Temperature |
℃ |
0~70 |
|
|
Storage Temperature |
℃ |
-40~85 |
|
|
Package Dimension (Φ*L) |
mm |
Φ5.5 xL38 |
|
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
