| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |
Tap Isolator Hybrid Device (Optical Tap-Isolator Hybrid Component) For Fiber Amplifiers, Optical Monitoring, And Fiber Optic Systems
The Tap Isolator Hybrid Device is a passive hybrid component designed for use in fiber amplifier systems, optical power monitoring applications, and compact optical communication modules. This product integrates both optical tapping and optical isolation functions within a single package; it enables unidirectional transmission along the main link while diverting a small portion of the optical power for real-time monitoring and status detection. According to industry literature, such devices are typically deployed in fiber amplifiers, fiber optic instrumentation, and various fiber optic systems requiring signal monitoring. Key features include a compact form factor, low insertion loss, low polarization-dependent loss (PDL), and high isolation.
| Parameter | Unit | Value | |||
|---|---|---|---|---|---|
| Fiber Type | nm | Single-mode | |||
| Wavelength | nm | 1310±30 | 1550±30 | ||
| Port Configuration | – | 1X2 | |||
| Insertion Loss (Max) |
Tap Ratio | 5%(ISO) | dB | 14.7 | |
| 95% | dB | 0.6 | |||
| Tap Ratio | 20%(ISO) | dB | 8.05 | ||
| 80% | dB | 2.35 | |||
| Tap Ratio | 30%(ISO) | dB | 6.4 | ||
| 70% | dB | 2.7 | |||
| Tap Ratio | 40%(ISO) | dB | 4.9 | ||
| 60% | dB | 3.5 | |||
| Tap Ratio | 50%(ISO) | dB | 4.6 | ||
| 50% | dB | 4.0 | |||
| Isolator(COM→Through) | dB | ≥25 | |||
| Return Loss | dB | ≥50 | |||
| PDL | dB | ≤0.15 | |||
| Power Handing | mW | 300 | |||
| Fiber Type | – | G67A1/ A2/ B3 or SMF-28 | |||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||
| Fiber Type Length | cm | 100+/-10 or customized | |||

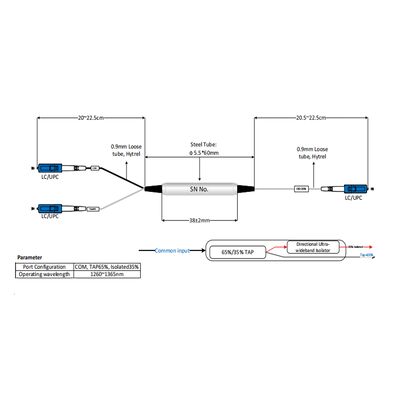

| Package Size | mm | Φ5.5*L38 | |||
| Operation Temperature | °C | -5~65 | |||
| Storage Temperature | °C | -40~85 | |||
